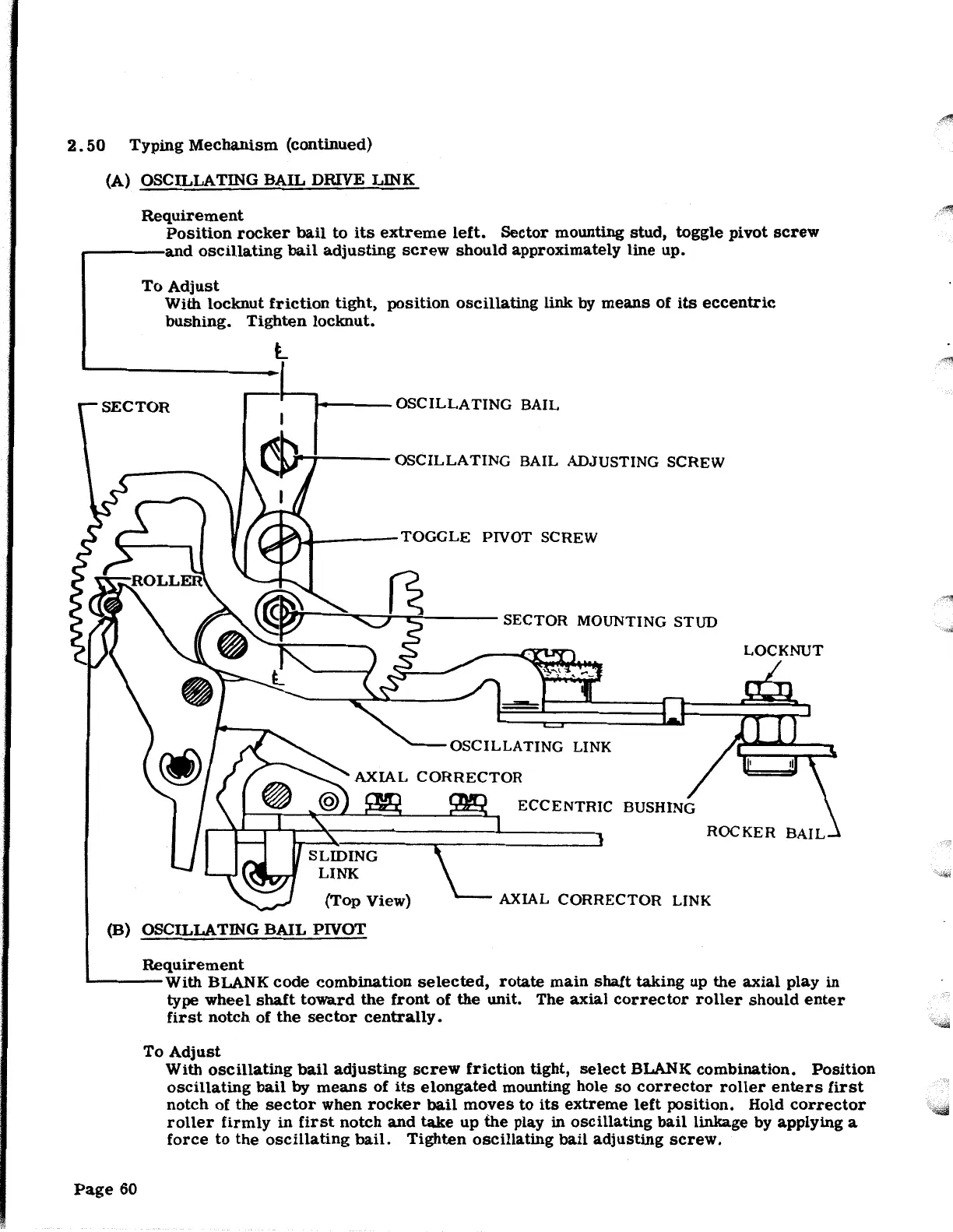

2. 50 Typing Mechanism (continued)
(A) OSCILLATING BAIL DRIVE LINK
Requirement
Position rocker bail to its extreme left. Sector mounting stud, toggle pivot screw
.-----and oscillating bail adjusting screw should approximately line up.
To Adjust
With locknut friction tight, position oscillating link by means of its eccentric
bushing. Tighten locknut.
l
SECTOR
I• OSCILLATING BAIL
• ' OSCILLATING BAIL ADJUSTING SCREW
U TOGGLE PIVOT SCREW
"'" .J SECTOR MOUNTING STUD
LINK
ECCENTRIC
ROCKER BAIL
(Top View)
(B) OSCILLATING BAIL PIVOT
AXIAL CORRECTOR LINK
Requirement
L.----With BLANK code combination selected, rotate main shaft taking up the axial play in
type wheel shaft toward the front of the unit. The axial corrector roller should enter
first notch of the sector centrally.
Page 60
To Adjust
With oscillating bail adjusting screw friction tight, select BLANK combination. Position
oscillating bail by means of its elongated mounting hole so corrector roller enters first
notch of the sector when rocker bail moves to its extreme left position. Hold corrector
roller firmly in first notch and take up the play in oscillating bail linkage by applying a
force to the oscillating bail. Tighten oscillating bail adjusting screw.
