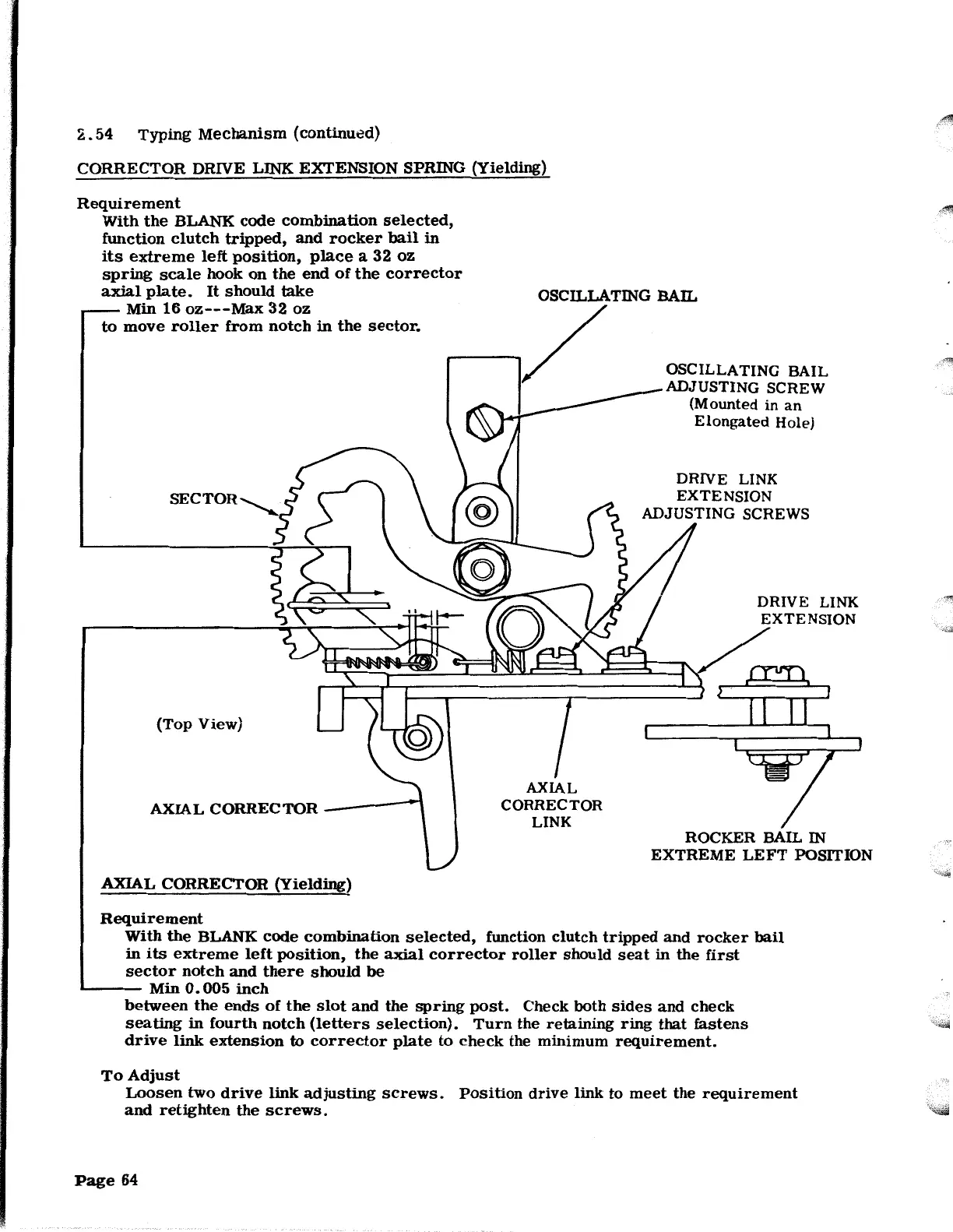

2.
54
Typing
Mechanism
(
continu~d)
CORRECTOR
DRIVE LINK EXTENSION SPRING (Yielding)
Requirement
With
the
BLANK
code
combination
selected,
function
clutch
tripped,
and
rocker
bail
in
its
extreme
left
position,
place
a
32
oz
spring
scale
hook
on
the
end
of
the
corrector
axial
plate.
It
should
take
OSCILLATING
BAn.
Min
16
oz---Max
32
oz
to
move
roller
from
notch
in
the
sector.
{Top View)
AXIAL
CORRECTOR
-t
AXIAL
CORRECTOR
(Yielding)
Requirement
I
1/
AXIAL
CORRECTOR
LINK
OSCILLATING
BAIL
ADJUSTING
SCREW
(Mounted in
an
Elongated
Hole)
DRIVE
LINK
EXTENSION
ADJUSTING
SCREWS
DRIVE
LINK
EXTENSION
ROCKER BAIL IN
EXTREME
LEFT
POSITION
With
the
BLANK
code
combination
selected,
function
clutch
tripped
and
rocker
bail
in
its
extreme
left
position,
the
axial
corrector
roller
should
seat
in
the
first
sector
notch
and
there
should
be
I
Min
0.
005
inch
between
the
ends
of
the
slot
and
the
spring
post.
Check
both
sides
and
check
seating
in
fourth
notch
{letters
selection).
Turn
the
retaining
ring
that
fastens
drive
link
extension
to
corrector
plate
to
check
the
minimum
requirement.
To
Adjust
Loosen
two
drive
link
adjusting
screws.
Position
drive
link
to
meet
the
requirement
and
retighten
the
screws.
Page
64
,,~
·""""!
