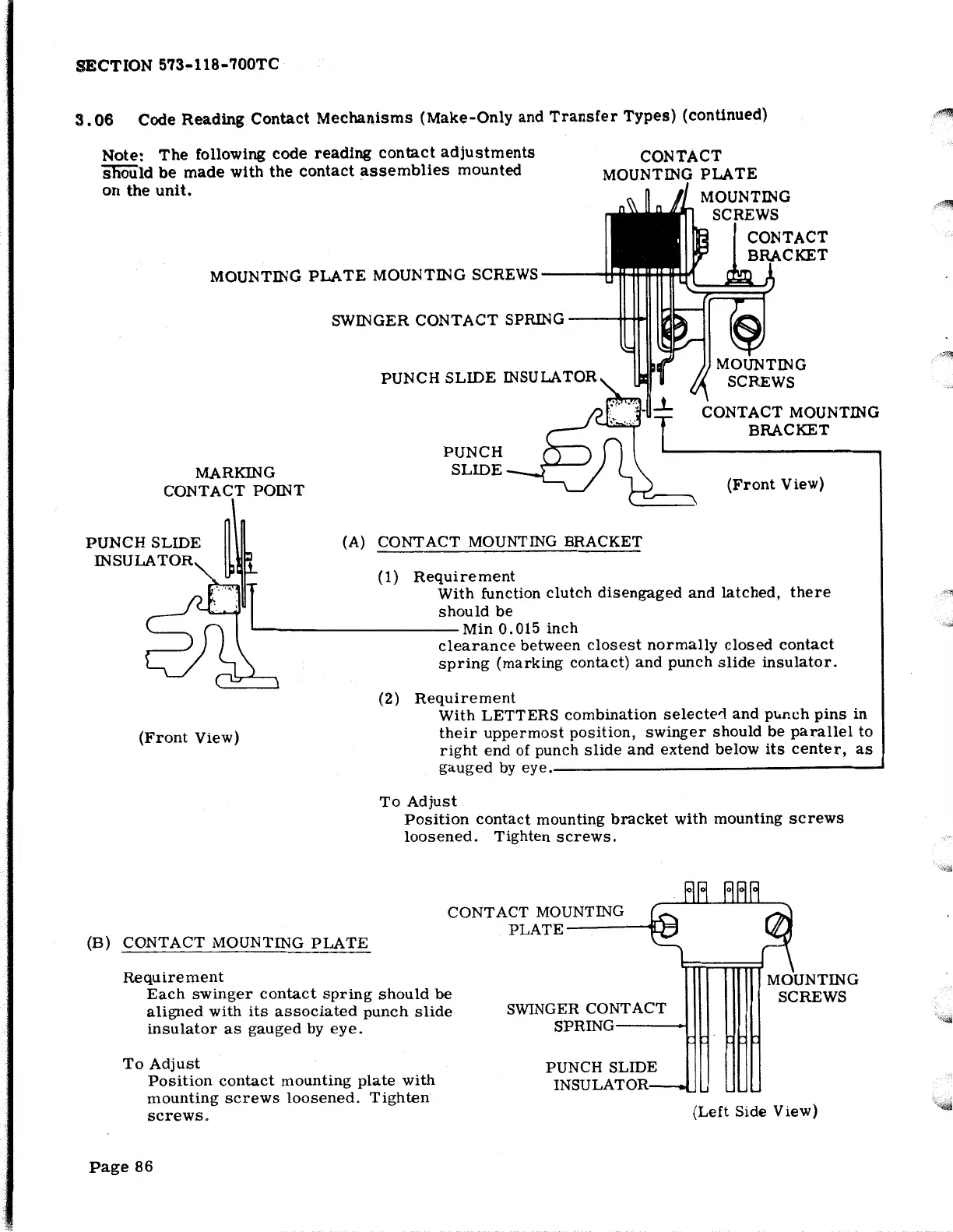

3. 06 Code Reading Contact Mechanisms (Make-Only and Transfer Types) (continued)
Note: The following code reading contact adjustments
should be made with the contact assemblies mounted
on the unit.
CONTACT
MOUNTING
PLATE
MOUNTING PLATE MOUNTING SCREWS H"--~---~lnf~ r: ! p
MARKING
CONTACT POINT
PUNCH SLIDE
INSULATOR
SWINGER CONTACT SPRING II 1~11
PUNCH SLIDE INSULATOR
PUNCH
SLIDE
{A) CONTACT MOUNTING BRACKET
{1) Requirement
CONTACT MOUNTING
BRACKET
(Front View)
With function clutch disengaged and latched, there
should be
.__----------Min 0.015 inch
(Front View)
(B)
CONTACT MOUNTING PLATE
Requirement
clearance between closest normally closed contact
spring (marking contact) and punch slide insulator.
{2) Requirement
With LETTERS combination selecte'i and pt.P-ch pins in
their uppermost position, swinger should be parallel to
right end of punch slide and extend below its center, as
gauged by eye.-----------------....1
To Adjust
Position contact mounting bracket with mounting screws
loosened. Tighten screws.
CONTACT MOUNTING
PLATE---
Each swinger contact spring should be
aligned with its associated punch slide
insulator as gauged by eye.
SWINGER CONTACT
SPRING·----!
MOUNTING
SCREWS
To Adjust
Position contact mounting plate with
mounting screws loosened. Tighten
screws.
Page 86
PUNCH SLIDE
INSULATOR
(Left Side View)
'~
(~
