3. 07 Code Reading Contact Mechanism (Transfer Type) (continued)

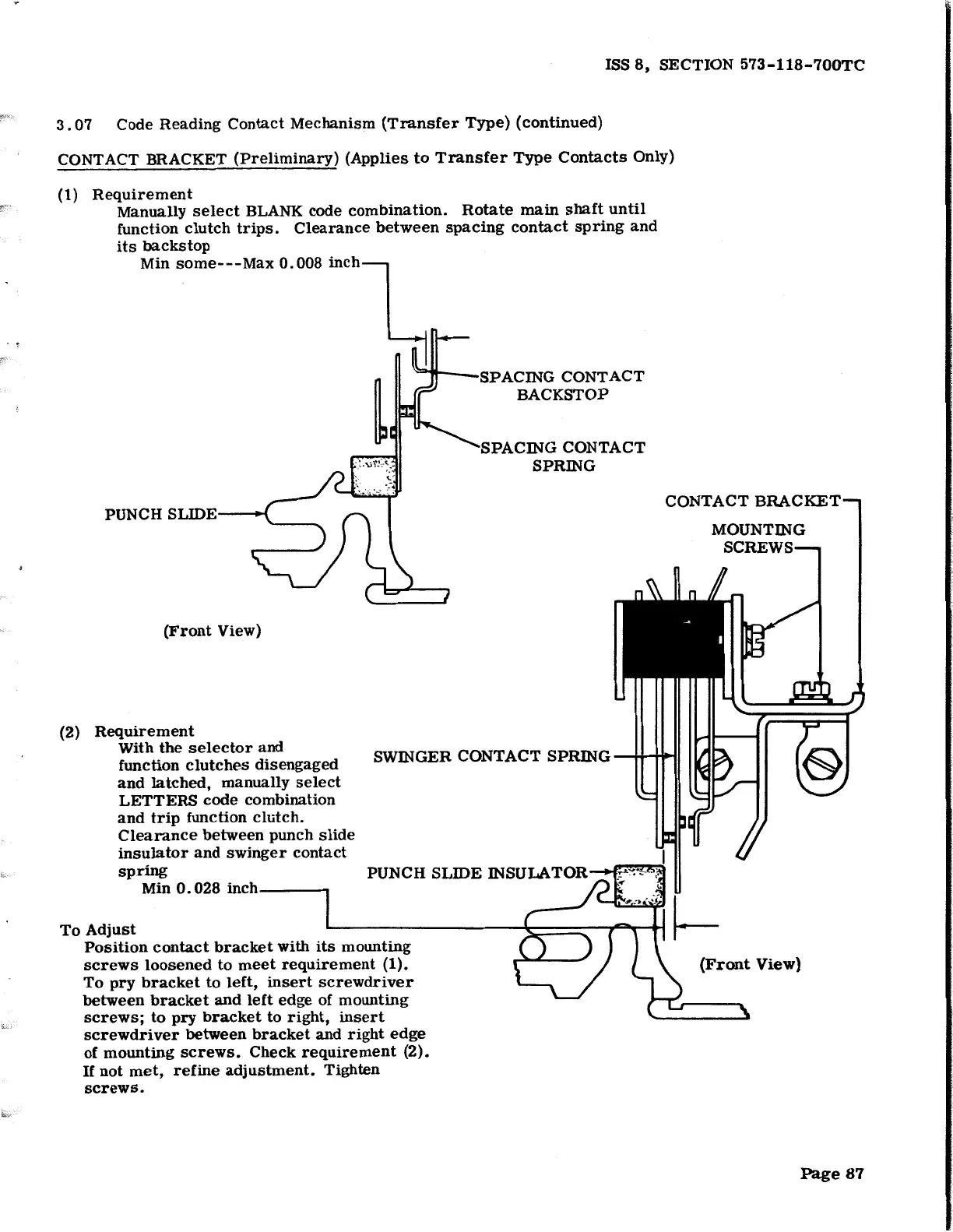

CONTACT BRACKET (Preliminary) (Applies to Transfer Type Contacts Only)
(1) Requirement
Manually select BLANK code combination. Rotate main shaft until
function clutch trips. Clearance between spacing contact spring and
its backstop
Min some---Max 0. 008 inch
PUNCH SLIDE •l'---.-..
(Front View)
(2) Requirement
" SPACING CONTACT
BACKSTOP
SPACING CONTACT
SPRING
CONTACT BRACKET
MOUNTING
With the selector and
function clutches disengaged
and latched, manually select
LETTERS code combination
and trip function clutch.
Clearance between punch slide
insulator and swinger contact
spring
SWINGER CONTACT SPRING II II,. II
Min 0.028 inch----.
To Adjust
Position contact bracket with its mounting
screws loosened to meet requirement (1).
To pry bracket to left, insert screwdriver
between bracket and left edge of mounting
screws; to pry bracket to right, insert
screwdriver between bracket and right edge
of mounting screws. Check requirement (2).
If not met, refine adjustment. Tighten
screws.
