PLIXUS NEXT
Plixus NEXT is the next generation of Plixus network extenders which have the same functionality and
connectivity, but additionally offer the option to configure (via DIP switches) a delayed power up of the
conference extension ports (see DIP switch table below).

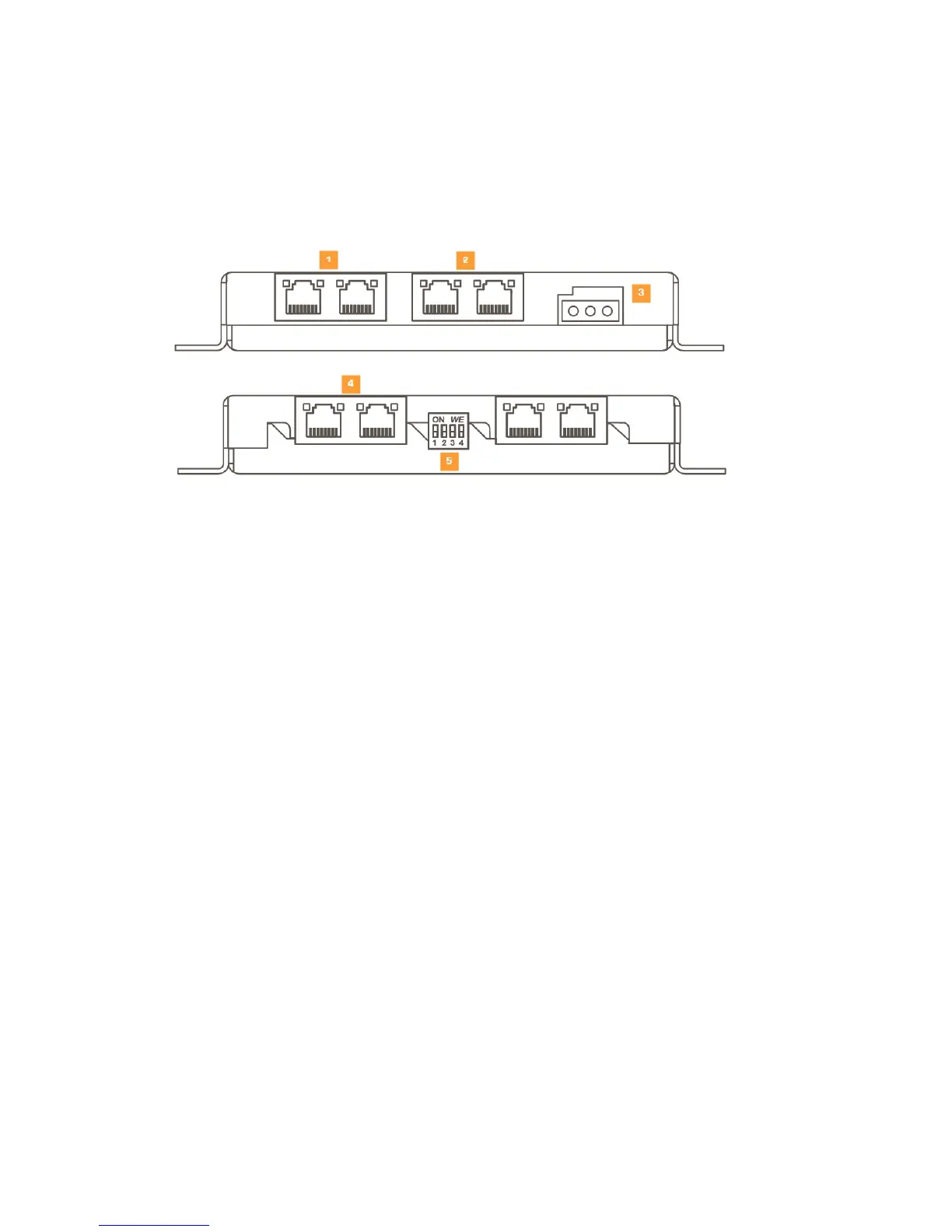

1. Two Plixus network conference ports (uplink).
a. Gives Plixus network signal to conference extension ports of the central engine or other
network extender.
b. Allows connection in branch / loop.
2. LAN ports are not used.
3. 48V power supply: powers the four conference ports.
4. Four Plixus network conference ports (downlink).
5. DIP switches enable / disable power of conference ports and allow sequential startup.
PL IX US NEX T 29
