Plixus NEXT needed?
More than 40 units?
More than 200 W?
Plixus AE-R (71.98.2902)
Plixus Power Supply (71.98.2930)
required for network extender
Plixus AE-R Power Supply (71.98.2931)
for power redundancy
Plixus AE-R (71.98.2902)
Plixus AE-R Power Supply (71.98.2931)
to power units
2 x DIN Rail Power Supply 48 Vdc - 10 A
for power redundancy
Plixus AE-R (71.98.2902)
Plixus AE-R Power Supply (71.98.2931)
for power redundancy
No
Yes
Yes
Yes
No
No

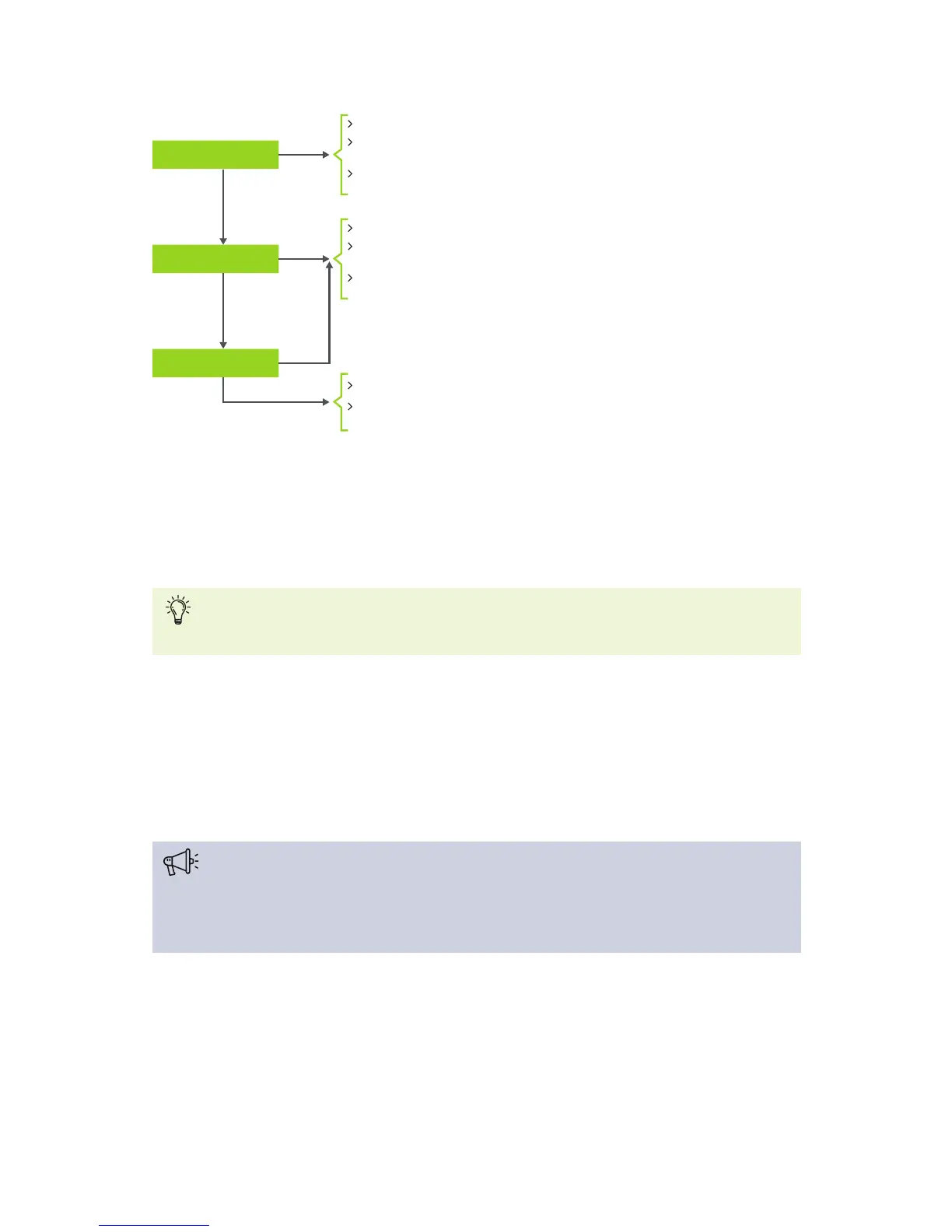

Figure 1-25 How to decide to need an additional Plixus AE-R power supply
Calculator Tool
The Plixus Power Calculator Tool allows to you to validate a configuration in more detail. It takes
into account the network cable lengths, power cable lengths and the different types of equipment.
The Plixus Power Calculator Tool can be easily found on the Televic Partner Domain.
Regardless of the calculator values, the maximum values above still apply. If more units, more power or a
larger length is needed, then you need to create a separate branch using a Network Extender.
Cable Requirements
Televic advises to use minimum CAT 5e F/UTP 23 AWG for run cables and CAT 5e F/UTP 24
AWG patch cables.
Televic strongly advises that cables for all video-enabled products are created in loop.
Please follow the cable guidelines described here, they are important to guarantee correct system
performance.
PO WER SUPPL Y DESIG N 52
