TP-8/16/24/32/64S User Manual Version No.: V1.2
- 50 -
4.6 Global Parameter Settings

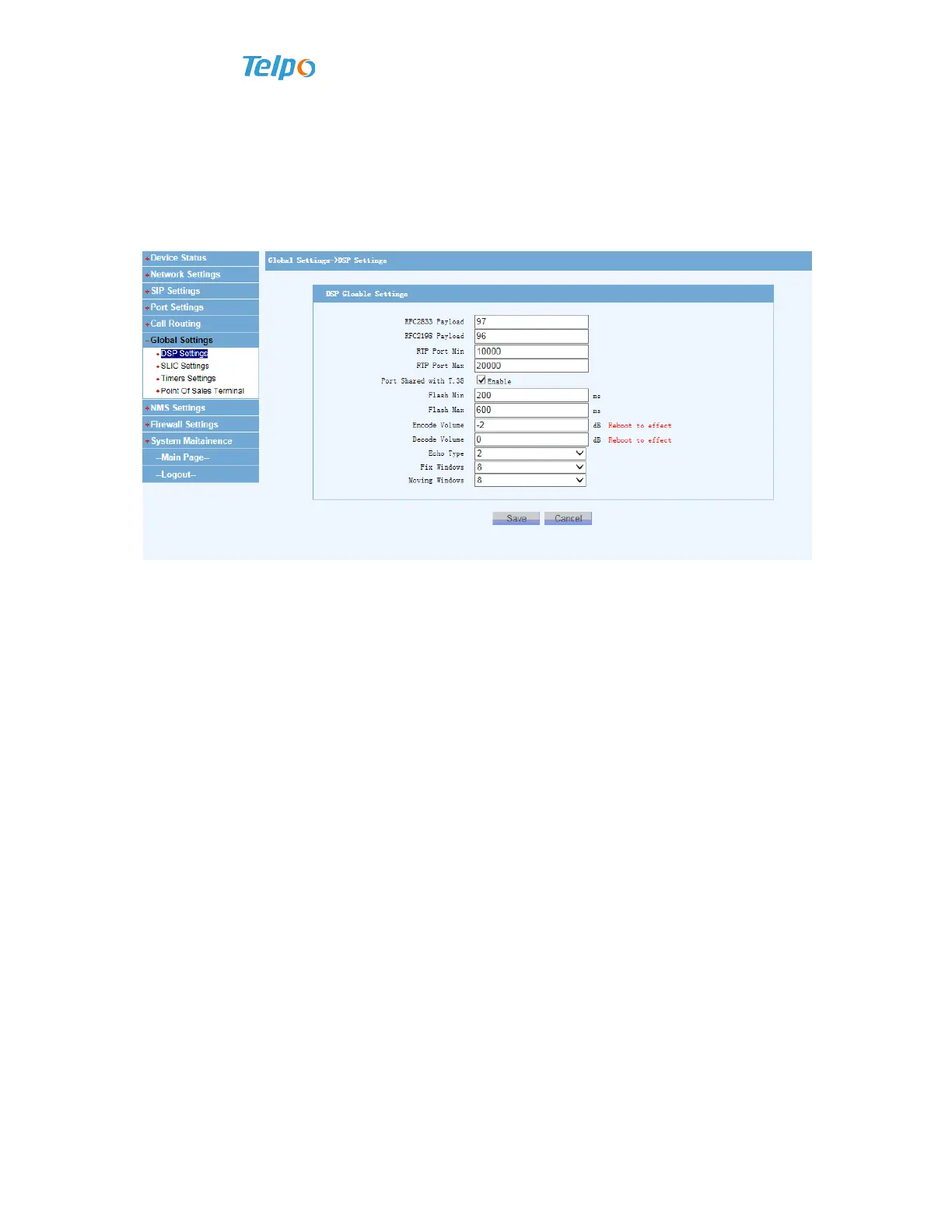

4.6.1 DSP Settings
Explanations:
 RFC2833 Payload: The corresponding value is set as 97～101 based on demands,
and the default is 97;
 RTP port scope: It refers to the port that RTP protocol is using at the time of
setting conversation. SIP protocol ranges from 5000-6000 by default;
 RTP port minimum: It is 10000 by default;
 RTP port maximum: It is 20000 by default;
 Feeding mode: It is 48V by default, and 24V is optional;
 Ringing current mode: It is 75V by default, and 90V is optional;
 DSP type: The type under which DSP operates can be modified.
 Shoot fork upper and lower limit: you can modify the upper and lower time of the
racket fork
Note: Restart is needful after modifying the parameters.
