Telstra T-GATEWAY - Page 20

20
STEP 2:

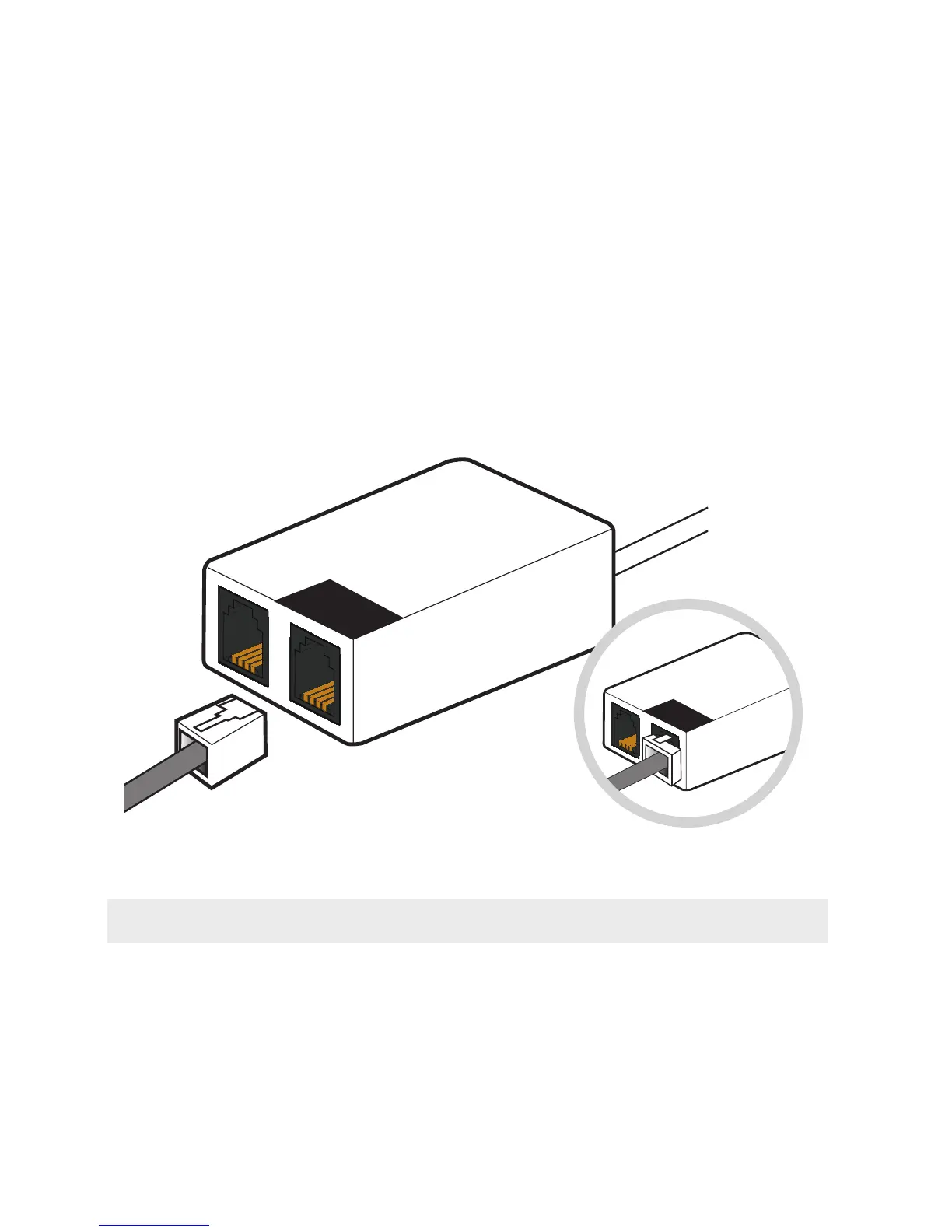

Take a filter/splitter from the kit and connect the other end of the
phone cable to the ‘ADSL MODEM’ socket on the filter/splitter.
Note: Got a wall-mounted phone and socket? Turn to page 24 for instructions.
