Telstra T-GATEWAY - Page 25

25
STEP 2:

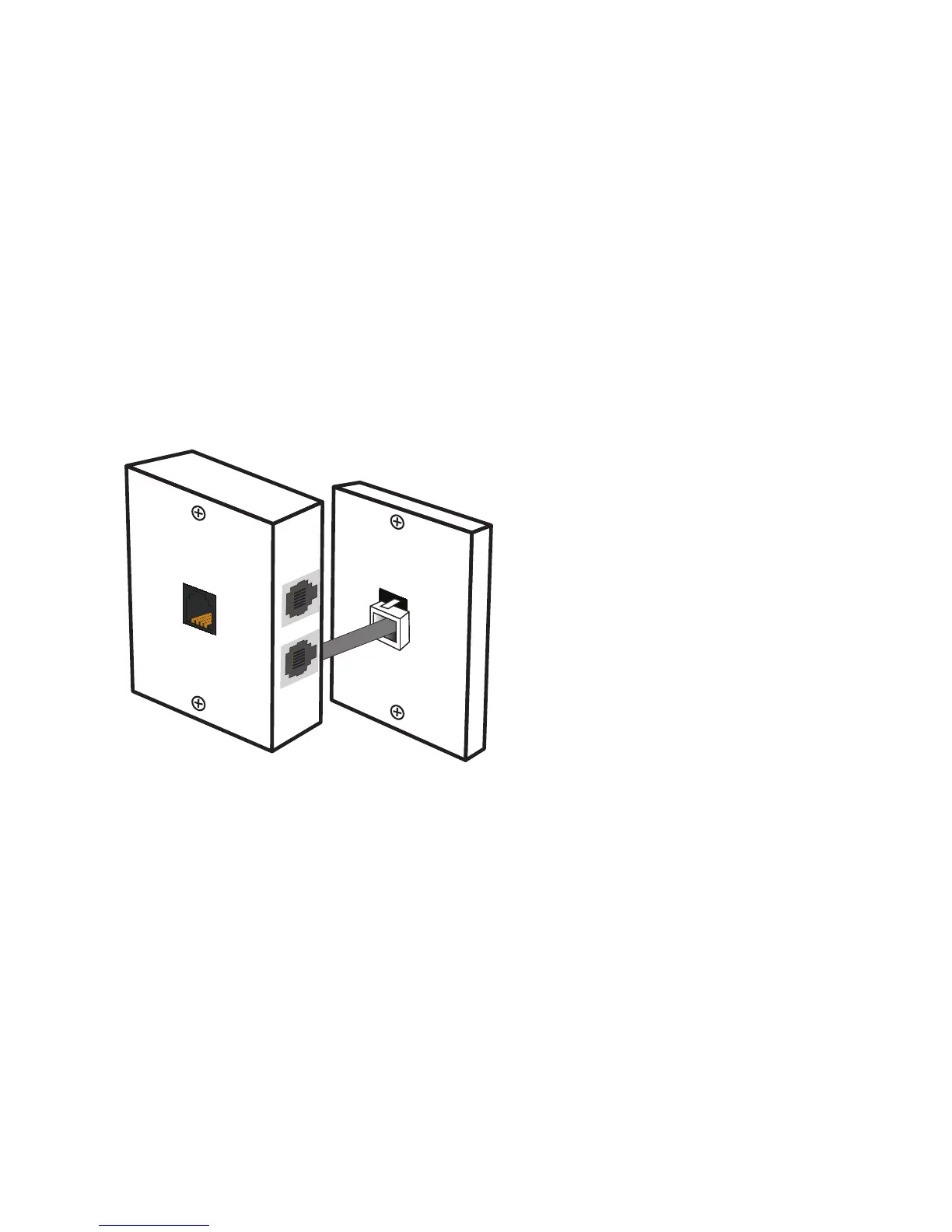

Plug the cable labelled LINE on the filter/splitter into the wall plate socket.
Align the mounting screws on the filter/splitter and wall plate then slide the
filter/splitter down onto the wall plate until it stops sliding and is secure.
LOCAL
PHONE
ADSL
MODEM
