Also if Power Voltage is chosen for ignition source there is possibility to choose Manual
ignition detection or automatic ignition detection. For manual ignition user has to choose power
voltage levels by himself. For automatic ignition FM3602/FM3612 automatically detects ignition,
ignition is on if power voltage is between 13,2 – 16 V, or 27 – 32 V.
5.9 Records settings
Here user can modify if FM3602/FM3612 device will send newest records first, meaning,
that the most important thing is to know recent position of car, older records are being sent right
after newest records arrive to AVL application.
Activate Data Link Timeout is used to set timeout of link between FM3602/FM3612 and
AVL application termination. If FM3602/FM3612 has already sent all records it waits for new
records before closing link. If new records are generated in the period of this timeout, and
minimum count to send is reached, they are sent to AVL application. This option is useful when
GSM operator charge for link activation.
Server Response Timeout is used to set time period waiting for response from server side.

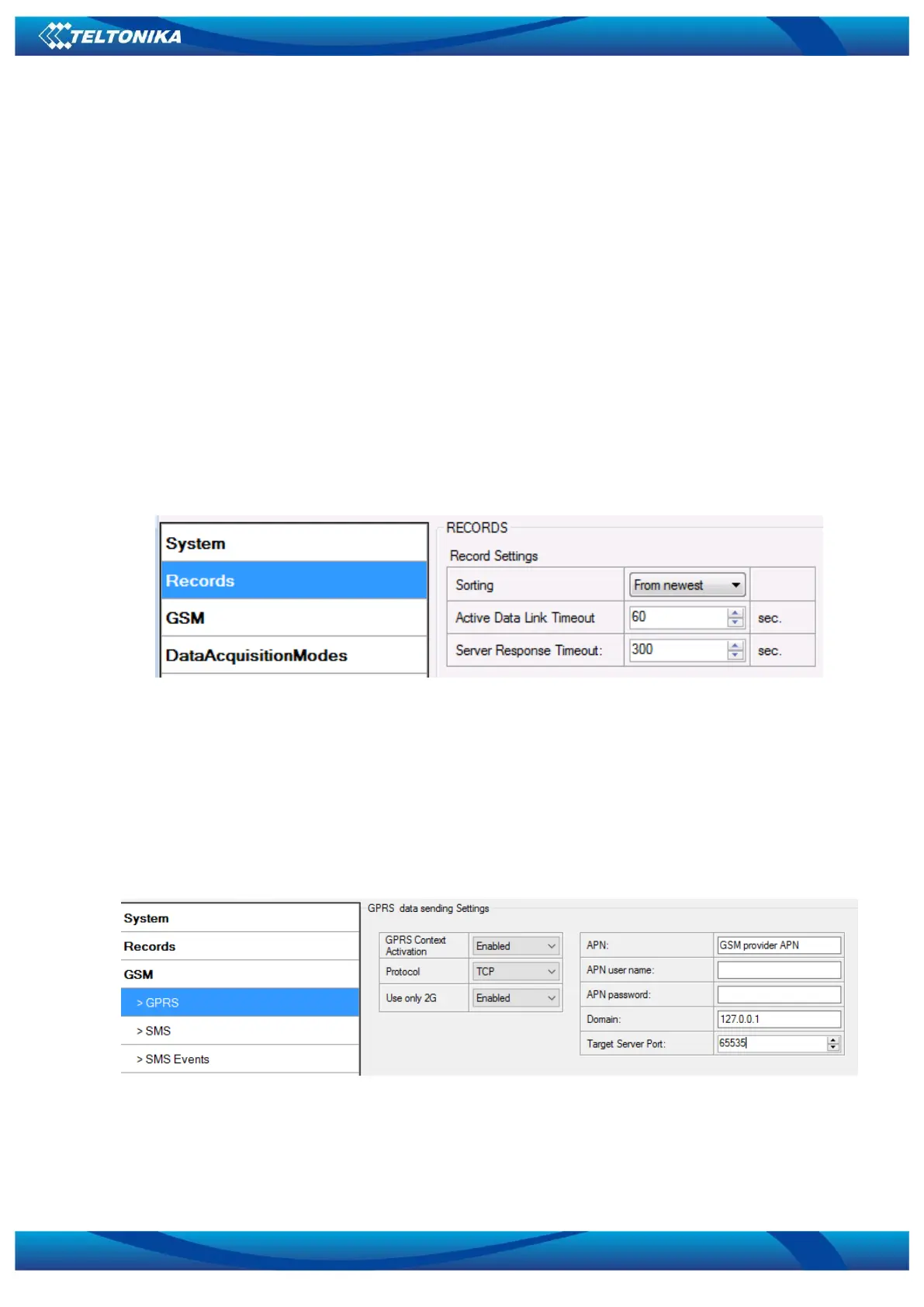

Figure 22. Records settings configuration
5.10 GSM settings, GPRS part
‘GPRS’ defines main parameters for FM36X2: GSM operator APN and GPRS username and
password (optional – depending on operator), destination server IP and port, and allows to set
protocol used for data transfers – TCP or UDP.
Yet user can choose if device will work only in GSM network, or it will prefer 3G network
and switch to GSM only then 3G is absent.
Figure 23. GPRS configuration
