Teltronics Arcata 2826 CIP-D User Manual

PHONE SETUP
28xx CIP-D User Guide 17
• Handset & Handset Core
• RJ11-to-RJ45 cable
This cable is provided for 2826 phones
configured as a digital endpoint. Use the
cable to connect the PC port on the back of
the 2826 phone to the RJ11 connection on an
HDLU or HDLU2 card in the 20-20.
A 10’ cable (p/n: 551-2000-0182) is supplied
with the phone. A 20’ cable (p/n: 551-2000-
0183) can be ordered separately.

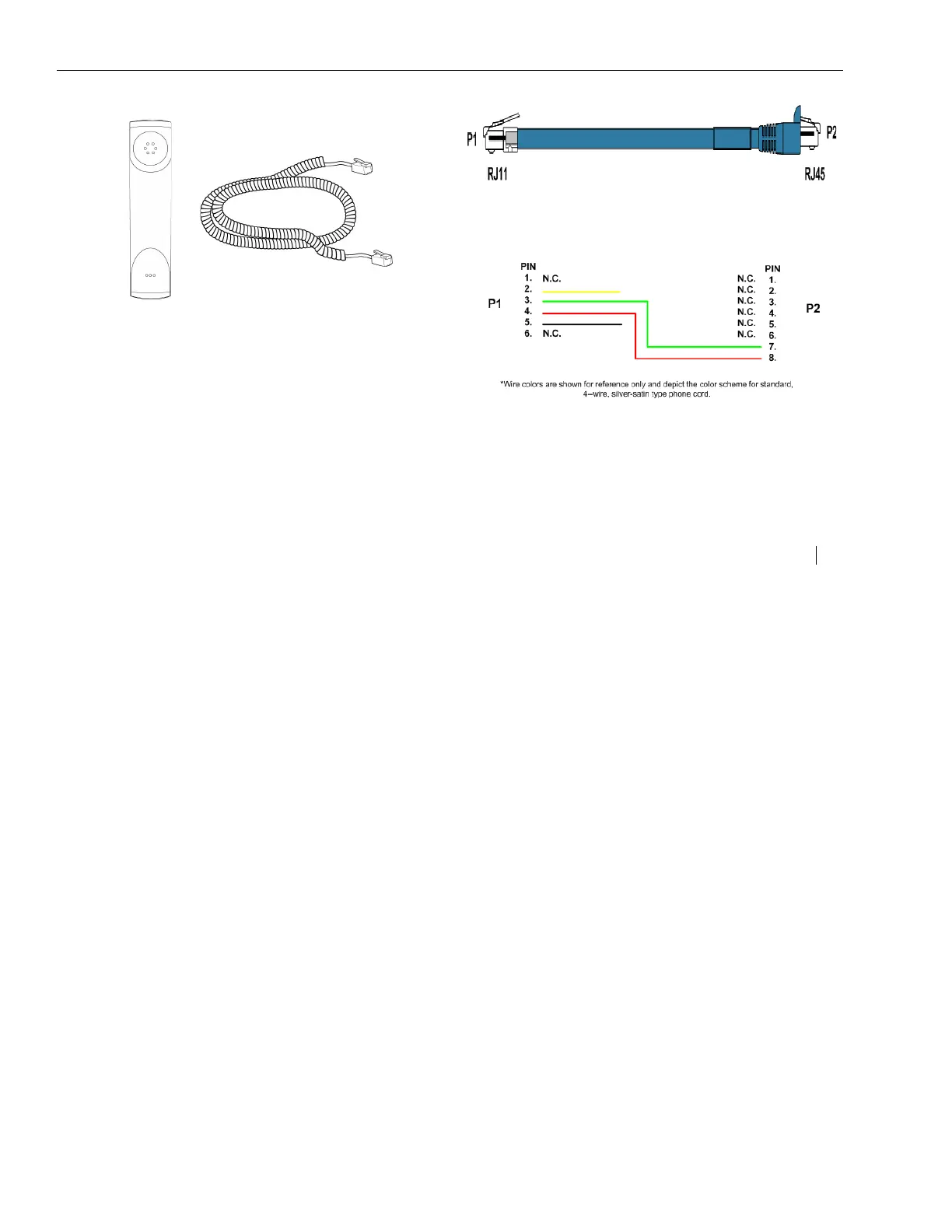

Figure 4. RJ11-to-RJ45 Cable
Figure 5. RJ11-to-RJ45 Cable Pinout
