TEM A07EXXXX – 1 Unit Transmitters Page 21

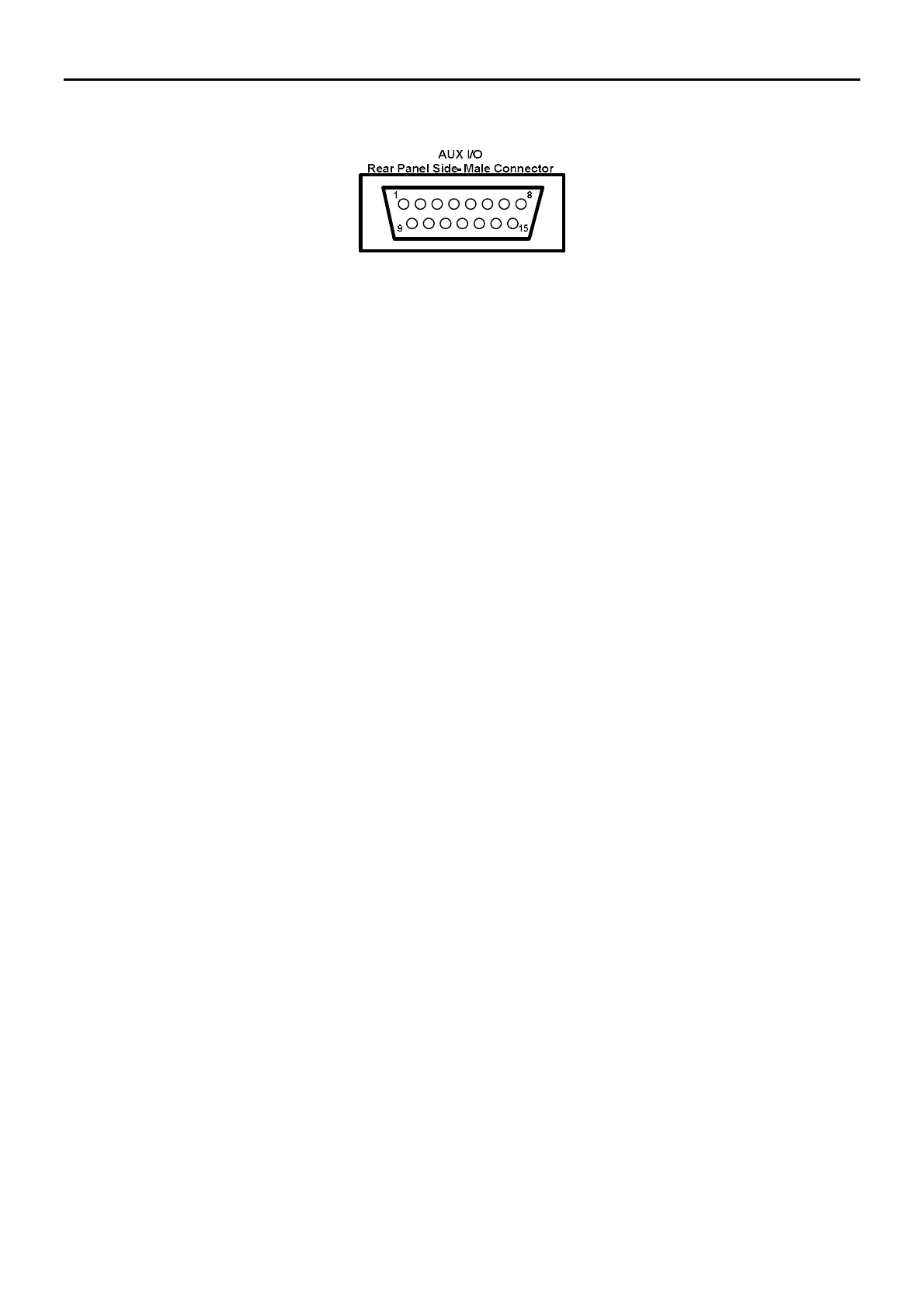

7.0 AUX I/O Rear Panel Interface DB15-DB09 Connector Description
DB15 VERSION
Pin 1: External Carrier Enable On-Off ► @ Floating = ON / @GND=OFF
Pin 2: NOT USED
Pin 3: NOT USED
Pin 4: NOT USED
Pin 5: Alarm 2 Relay Common Contact (internally GND or Free contact selection) Factory set is GND by JP23
Pin 6: NOT USED Forward Power DC Voltage ►@ Nominal Power =+5Vdc
Pin 7: GND
Pin 8: GND
Pin 9: 19KHz Pilot Sync Output ( Only with Internal Stereo Encoder module present)
Pin 10: +24V Out (limited current)
Pin 11: Alarm 1 N.O. Contact
Pin 12: Alarm 1 N.C. Contact
Pin 13: Alarm 2 Relay Common Contact (internally GND or Free contact selection) Factory set is GND by JP22
Pin 14: Forward Power DC Voltage ►@ Nominal Power =Internally adjustable
Pin 15: GND
DB09 VERSION
Pin 1: +24V Out (limited current)
Pin 2: Alarm 1 N.O. Contact
Pin 3: Alarm 1 N.C. Contact
Pin 4: Alarm 1 Relay Common Contact (internally GND or Free contact selection) Factory set is GND by JP23
Pin 5: GND
Pin 6: External Carrier Enable On-Off ► @ Floating = ON / @GND=OFF
Pin 7: 19KHz Pilot Sync Output ( Only with Internal Stereo Encoder module present)
Pin 8: Forward Power DC Voltage ►@ Nominal Power =Internally adjustable
Pin 9: GND
