TEM Opera Plus Series - Block Diagrams and Module Overviews

TEM A07EXXXX – 1 Unit Transmitters Page 41

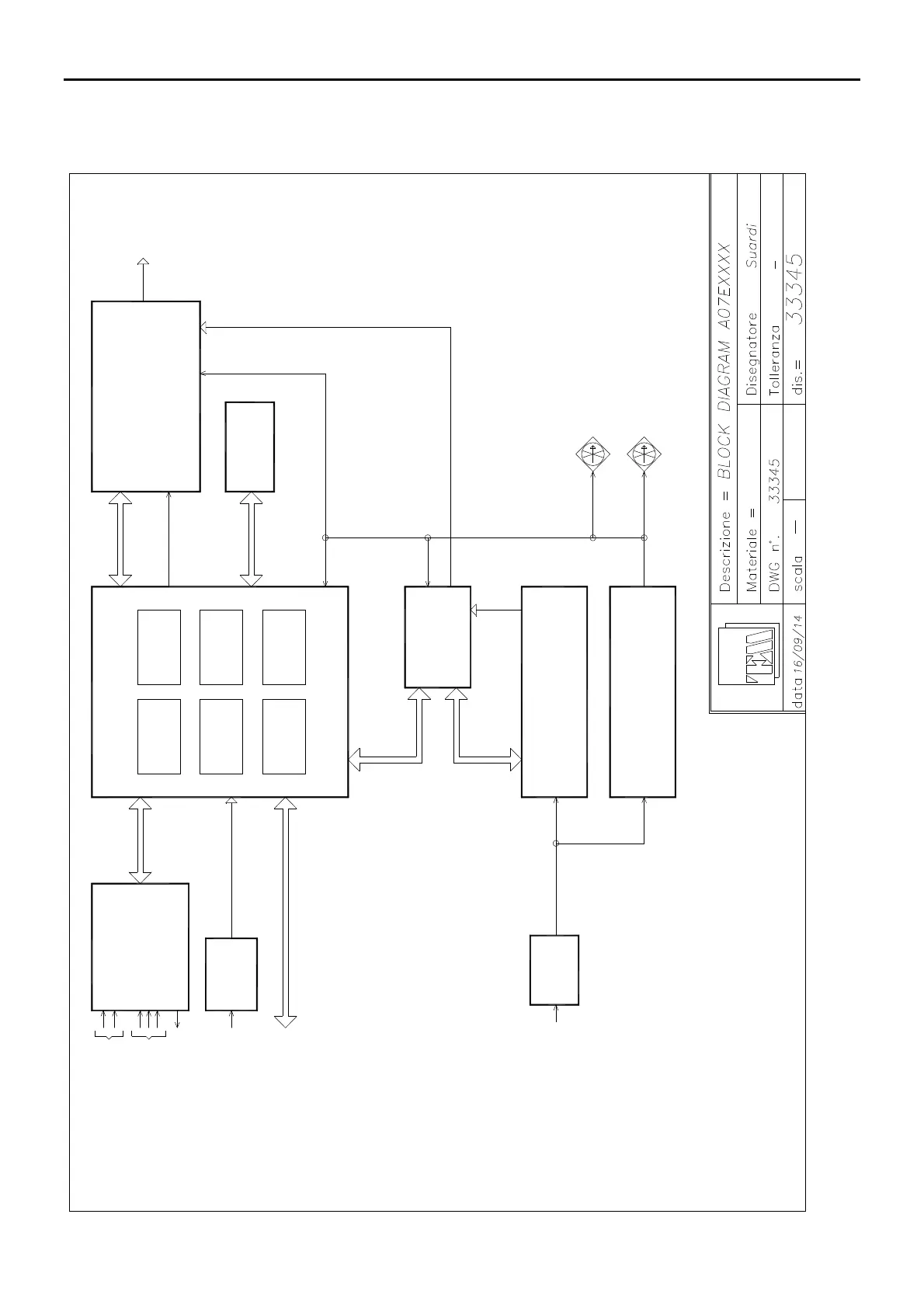

A07EXXXX – 10-20-50-100-200-250-300-400-500W Block Diagram Transmitter
MOD001
L/R
MPX-RDS-SCA ON AIR AUDIO
BF AUDIO IN/OUT INTERFACE
OPTIONAL
13MAES-EBU0
AES-EBU
AUDIO
INTERFACE BUS
AES-EBU INTERFACE
MOD003 EXCITER
POWER SUPPLY
MD005
RF AMPLIFIER
MD006
24V
24V
RF AMPLIFIER
BUS CONTROL
RF AMPLIFIER IN
RF EXCITER OUT
POWER SUPPLY
BUS CONTROL
SERVICE POWER SUPPLY
MOD004
MD007
CURRENT SENSOR
MODULE
J001
AC SOCKET
AC Mains
AC Mains
FAN001 FAN002
24V 24V
RF AMPLIFIER
FRONT PANEL BUS CONTROL
MD002
FRONT PANEL
INTERFACE
24V
20-42V
20-42V
RDS PROGRAM
BF PROCESSOR
STEREO ENCODER
RDS ENCODER REMOTE CONTROL
VCO
uP
OPTIONAL OPTIONAL OPTIONAL
50 - 100 - 300 - 500W
50 - 100 - 300 - 500W
