Tenda A18 User Manual

4

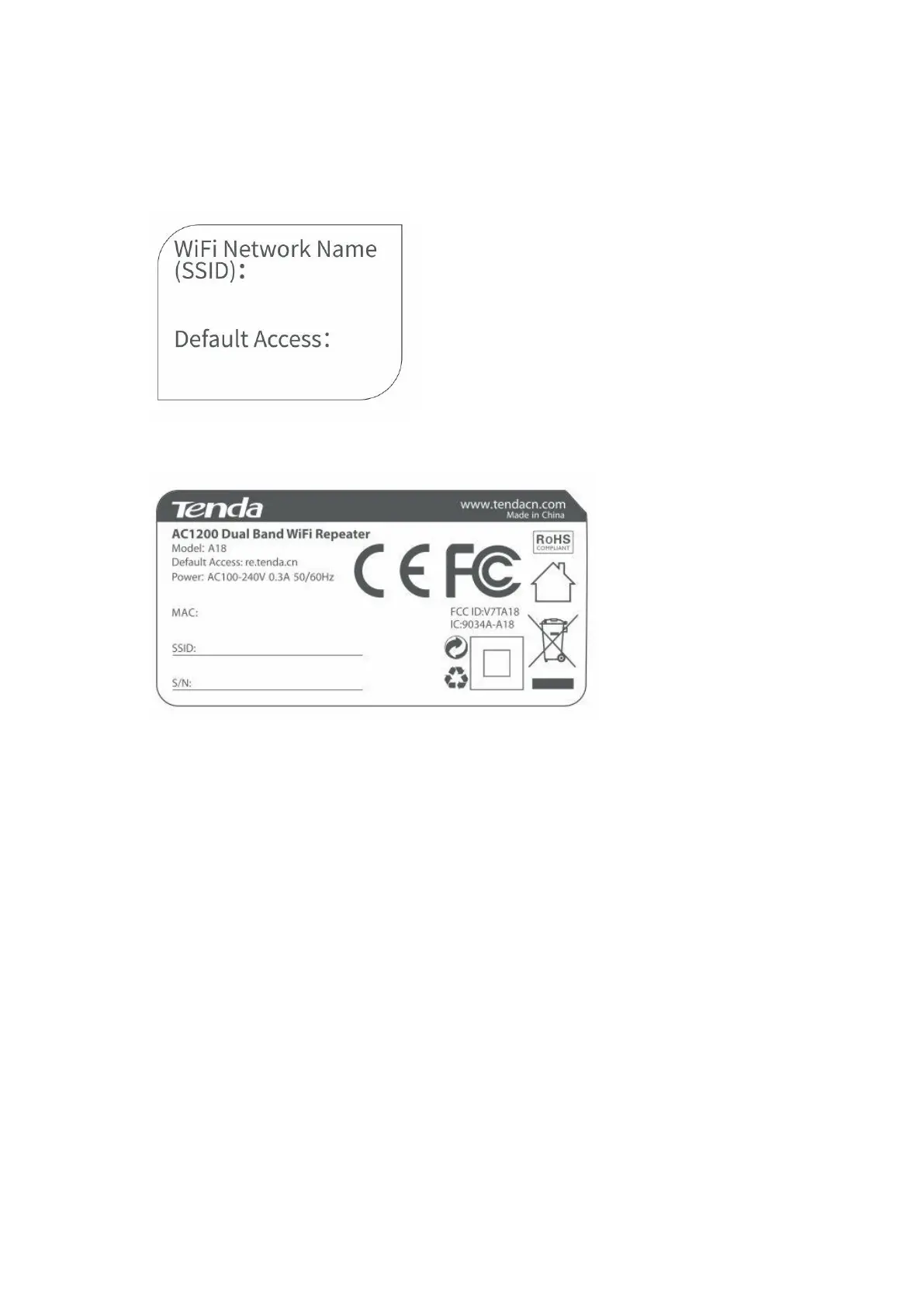

1.3.3 Labels
The labels present SSID, login address and other information of the repeater.

Label on the top:

Rear label of A18:
WiFi Network Name (SSID)/SSID: It specifies the default wireless network name.
Default Access: It is used to log in to the repeater.
MAC: It specifies the MAC address of the repeater.
S/N: It specifies the serial number of device. You may need it when you need to send it to our
technical staff for repair if there goes something wrong with your device.

Tenda A18 Specifications

General

Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	867 Mbit/s
Supported data transfer rates	11, 54, 300, 867 Mbps
Security algorithms	SSID, WPA-PSK, WPA-TKIP, WPA2-PSK
Product type	Network repeater
Product color	White
LED indicators	Power, Signal strength, WPS
DC input voltage	9 V
Power source type	DC
Power consumption (max)	5.2 W
Power consumption (typical)	2.8 W
Frequency band	2.412 - 2.484, 5.15 - 5.25 GHz
Channels quantity	2 channels
Transmission gain	12 - 16 dB
Receiver sensitivity	-97 dBm, -76 dBm, -74 dBm, -72 dBm, -95 dBm, -63 dBm
Antennas quantity	2
Antenna gain level (max)	2 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	8 MB
RAM capacity	64 MB
Harmonized System (HS) code	85176990

Weight and Dimensions

Dimensions (WxDxH)	58 x 48 x 80 mm
