Tenda AC15 User Manual

114

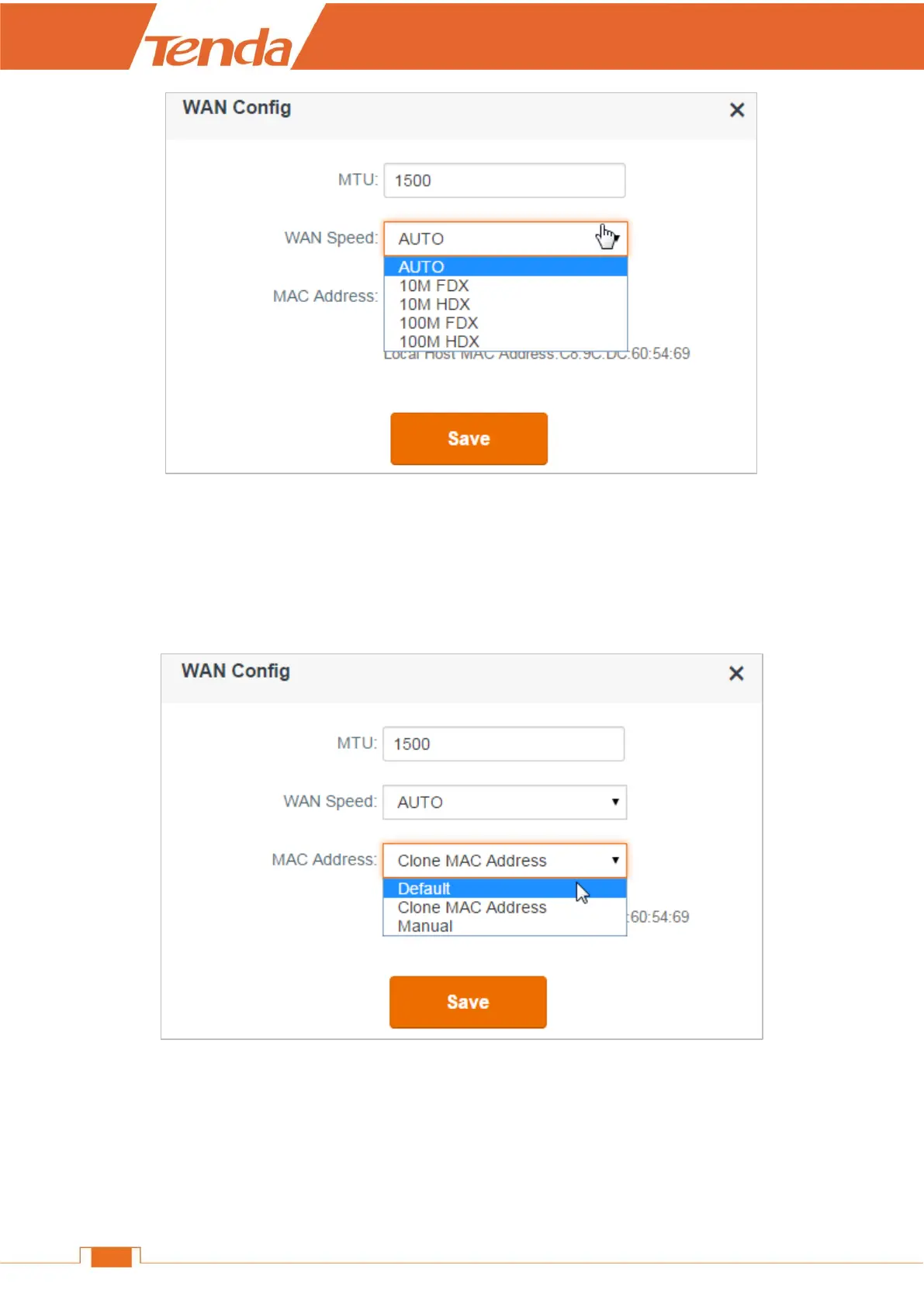

MAC Address
Some ISPs will bind your broadband account info and a specified MAC address of your computer
together. If you can only access the Internet with a specified computer without a Router, you can try
cloning MAC address for normal Internet access. By default, it clones the local host’s MAC address.
If you want to clone other MAC address, or change the Router’s MAC address, select Manual and
type the Mac address in the following box.

Tenda AC15 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Bandwidth (first)	5 GHz
Bandwidth (second)	2.4 GHz
Mobile network connection	No
WLAN data transfer rates supported	600, 1300 Mbit/s
Antenna gain level (max)	3 dBi
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Routing protocols	IP
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, C-tick, IC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	76.6 mm
Width	226 mm
Height	179.5 mm
Weight	1210 g
