Tenda AC15 User Manual

44
containing up to 32 characters for WiFi name, and customize a password containing up to 63
characters for WiFi password. Note them down if you change the default one avoid forgetting it.
 Hide
If the Hide option is checked, the wireless clients cannot search the WiFi name of the Router. You
need know the WiFi name in advance and enter the WiFi name on each wireless client manually.
 No Password
If the No Password option is checked, there is no password for your WiFi. The wireless device can
join in your wireless network by selecting your WiFi name without entering any password. It poses
safe risk to your network. So DO NOT check this option if unnecessary. But in some case, for example,
the Router is used in a small café shop, and you want to share the wireless network with your
customers without requiring a WiFi password. Then you can check the No password option.

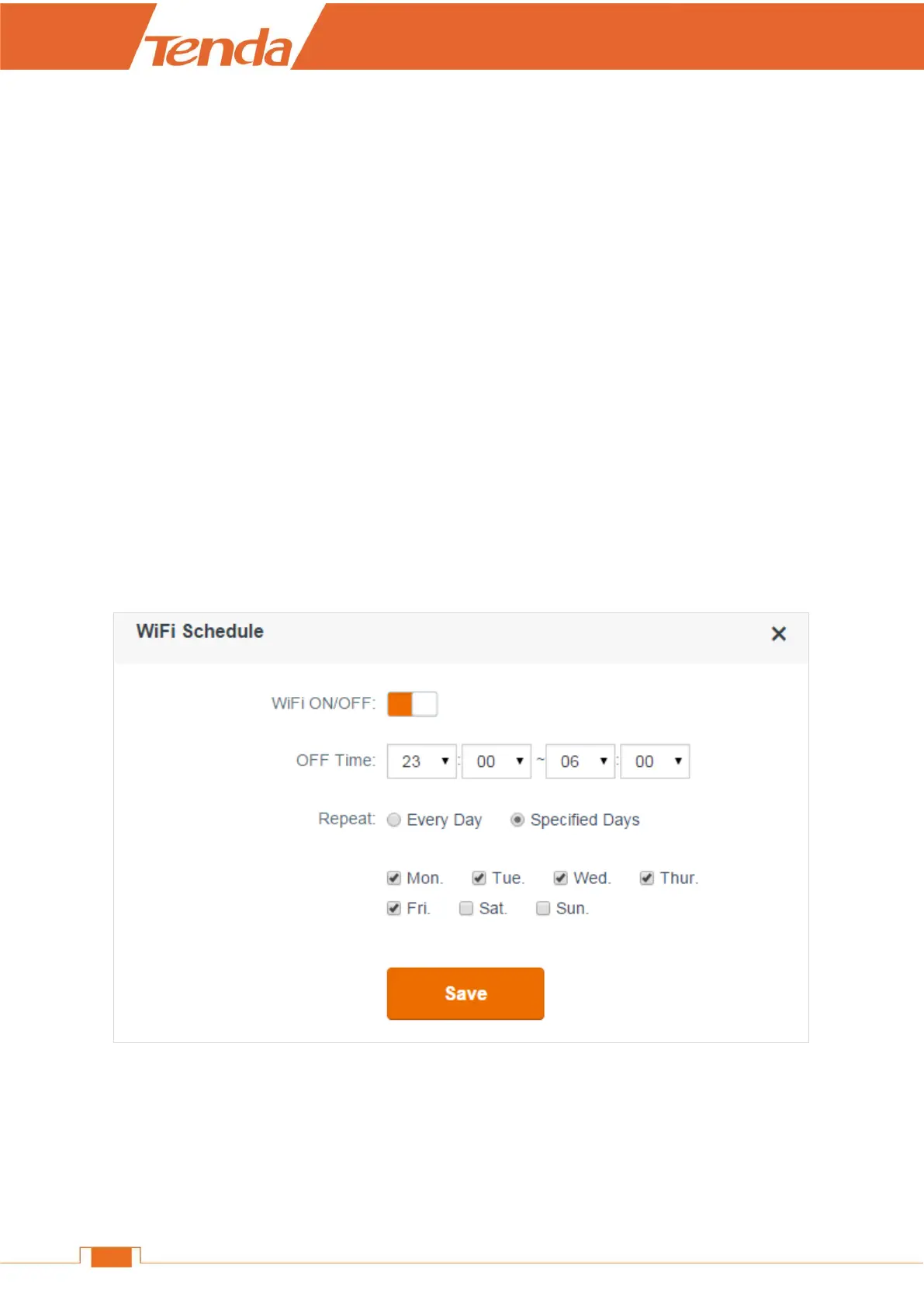

WiFi Schedule
This feature allows you to specify WiFi ON/OFF time. For example, assume that you want to turn off
your WiFi during 23:00~06:00, from Monday to Friday, you can configure it as follows:
 Click WiFi ON/OFF button to enable the feature.
 Select 23:00 and 06:00 in the OFF Time field.
 Select Specified Day, and check the options of the corresponding days, Mon. to Fri.

Tenda AC15 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Bandwidth (first)	5 GHz
Bandwidth (second)	2.4 GHz
Mobile network connection	No
WLAN data transfer rates supported	600, 1300 Mbit/s
Antenna gain level (max)	3 dBi
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Routing protocols	IP
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, C-tick, IC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	76.6 mm
Width	226 mm
Height	179.5 mm
Weight	1210 g
