Tenda O3 User Manual

134
User Name: tenda
Password: tenda
Domain Name: tenda.dyndns.com

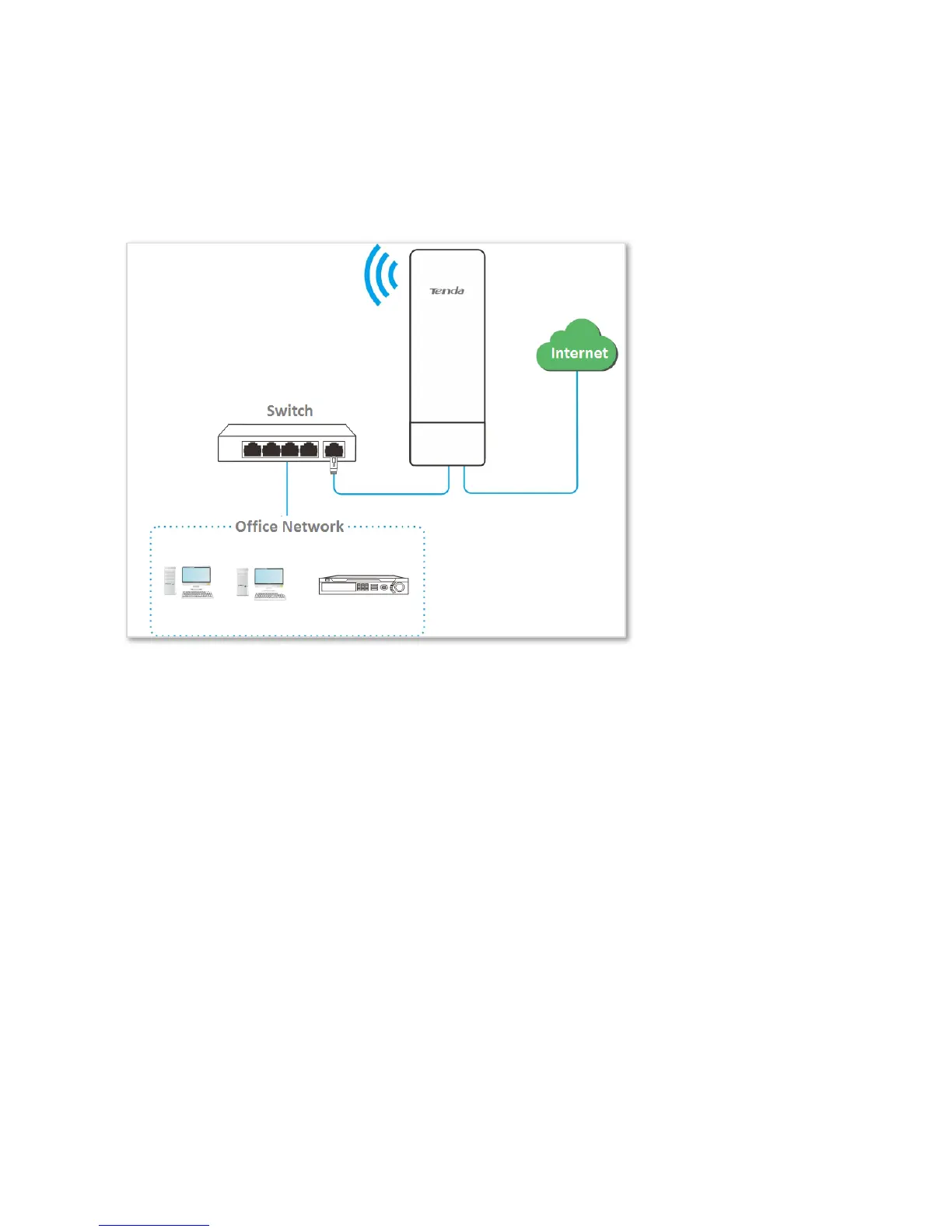

Network Topology
Configuration Procedure
Step 1 Set up the DDNS function.
1. Log in to the web UI of the CPE which works in Router mode.
2. Choose Advanced > Network Service.
3. Enable the DDNS function.
4. Select a service provider, which is Dyndns in this example.
5. Enter the user name and password you registered, which are tenda and tenda in this example.
6. Enter the domain name you registered, which is tenda.dyndns.com.
7. Click Save on the bottom of this page.
Step 2 Set up the port forwarding function.
1. Choose Advanced > Port Forwarding.
2. Enter the IP address of the web server, which is 192.168.2.100 in this example.
3. Select an application, which is HTTP in this example.
4. Select the protocol of the service. TCP&UDP is recommended if you are not sure.
Web Server
NVR
CPE in Router mode

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
