Tenda O3 User Manual

10

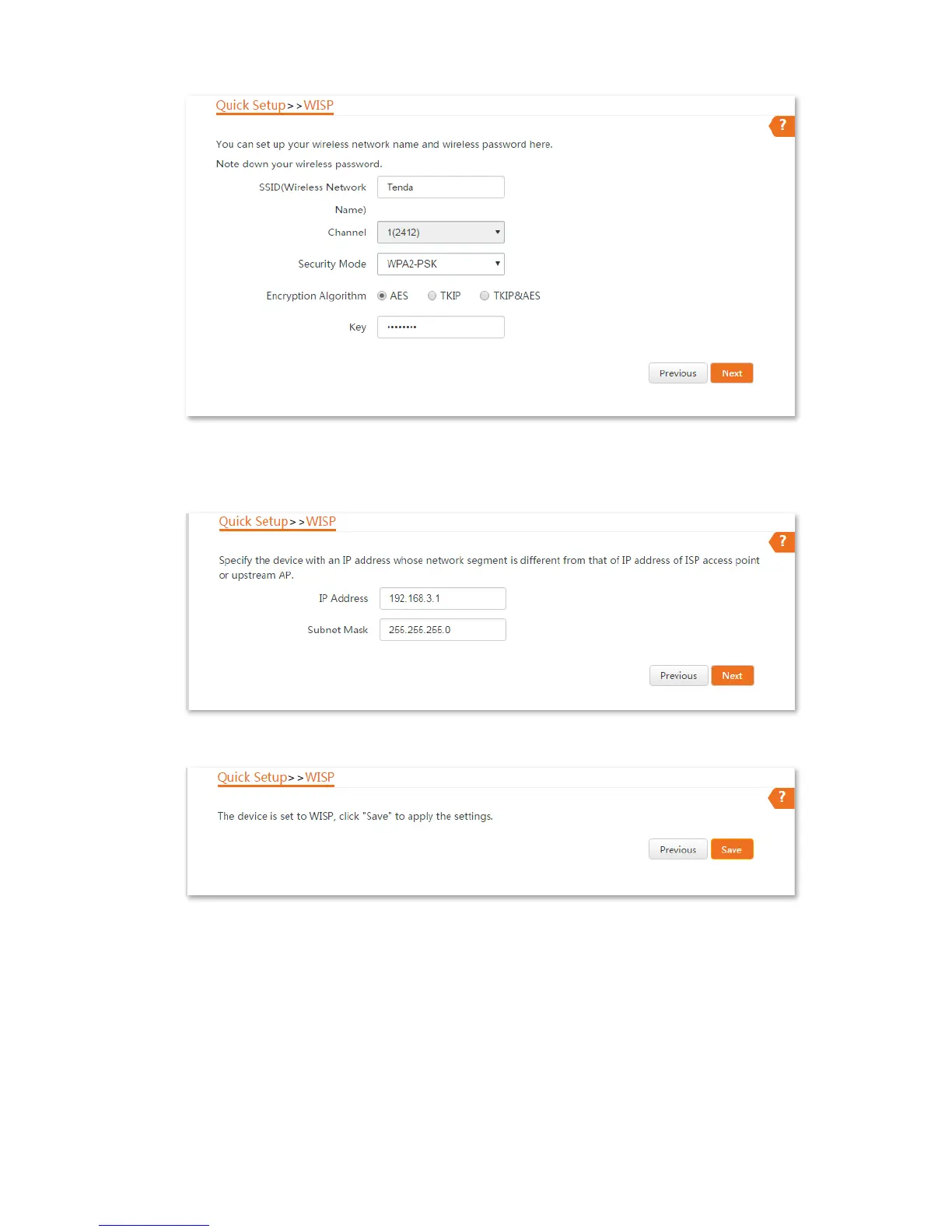

7. Set an IP address belonging to different network segment as that of your ISP hotspot. For example, if
the IP address of your ISP hotspot is 192.168.2.1, you can set this device’s IP address to 192.168.X.1
(X ranges from 0 to 254 excluding2). Then click Next.
8. Click Save, and wait until the device reboots to activate the settings.
----End
When LED1, LED2, and LED3 of the device are blinking, the device is connected to your ISP hotspot successfully.
2.1.3 Installing the CPE
Step 1 Place the device at an elevated position in the open air.
Step 2 Uncover the housings of the device, and connect the PoE/LAN/WAN port of the device to the WAN
port of your wireless router. The LAN/WAN LED indicator lights up.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
