Tenda O3

32

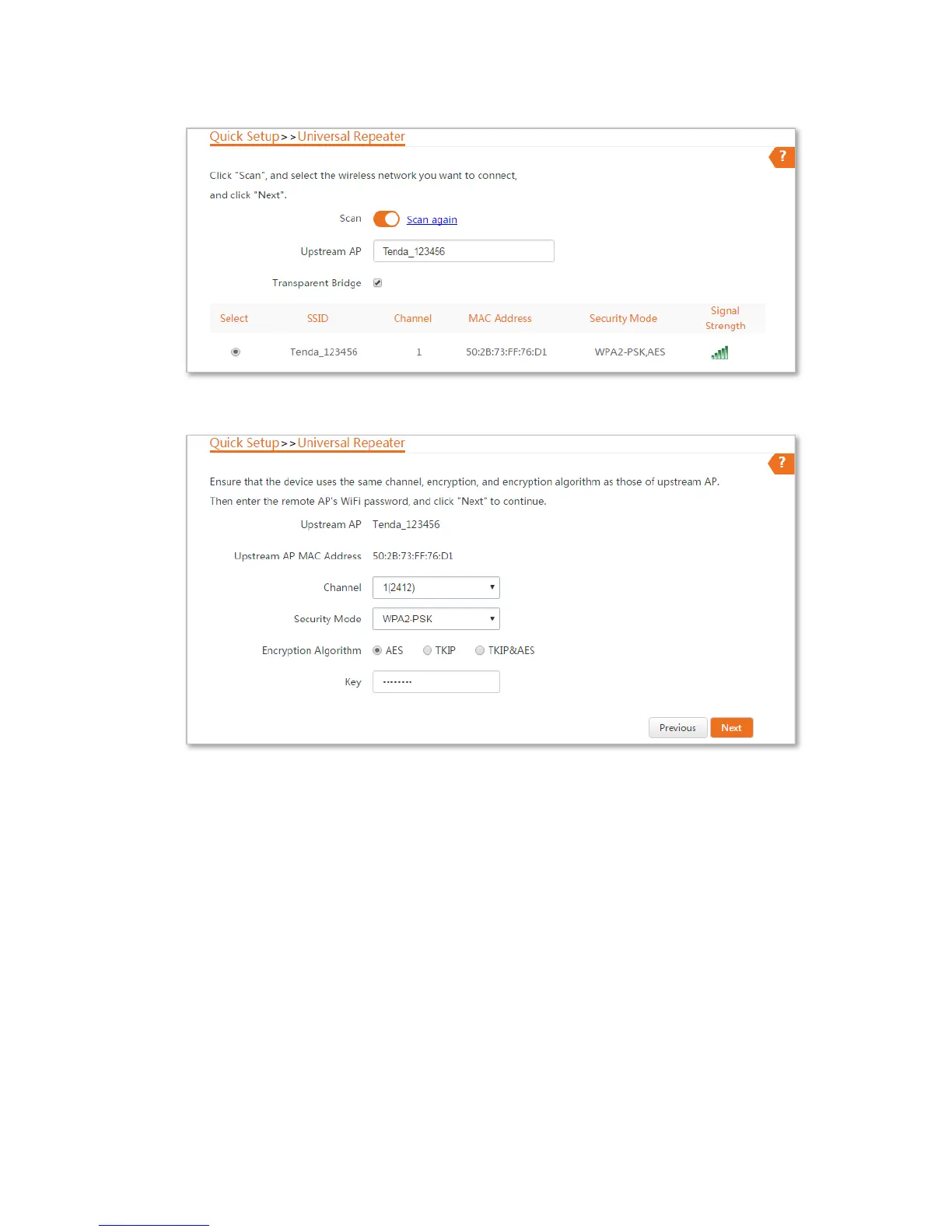

Step 3 Select the SSID of CPE1 (the upstream AP), which is Tenda_123456 in this example, and click Next.
Step 4 Enter the WiFi password of CPE1 in the Key text box, and click Next.
Step 5 Set the IP address to an unused IP address belonging to the same network segment as that of CPE1
(the upstream AP). For example, if the IP address of CPE1 is 192.168.2.1, you can set this device’s IP
address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
