Tenda W330R User Manual

Wireless-N Broadband Router

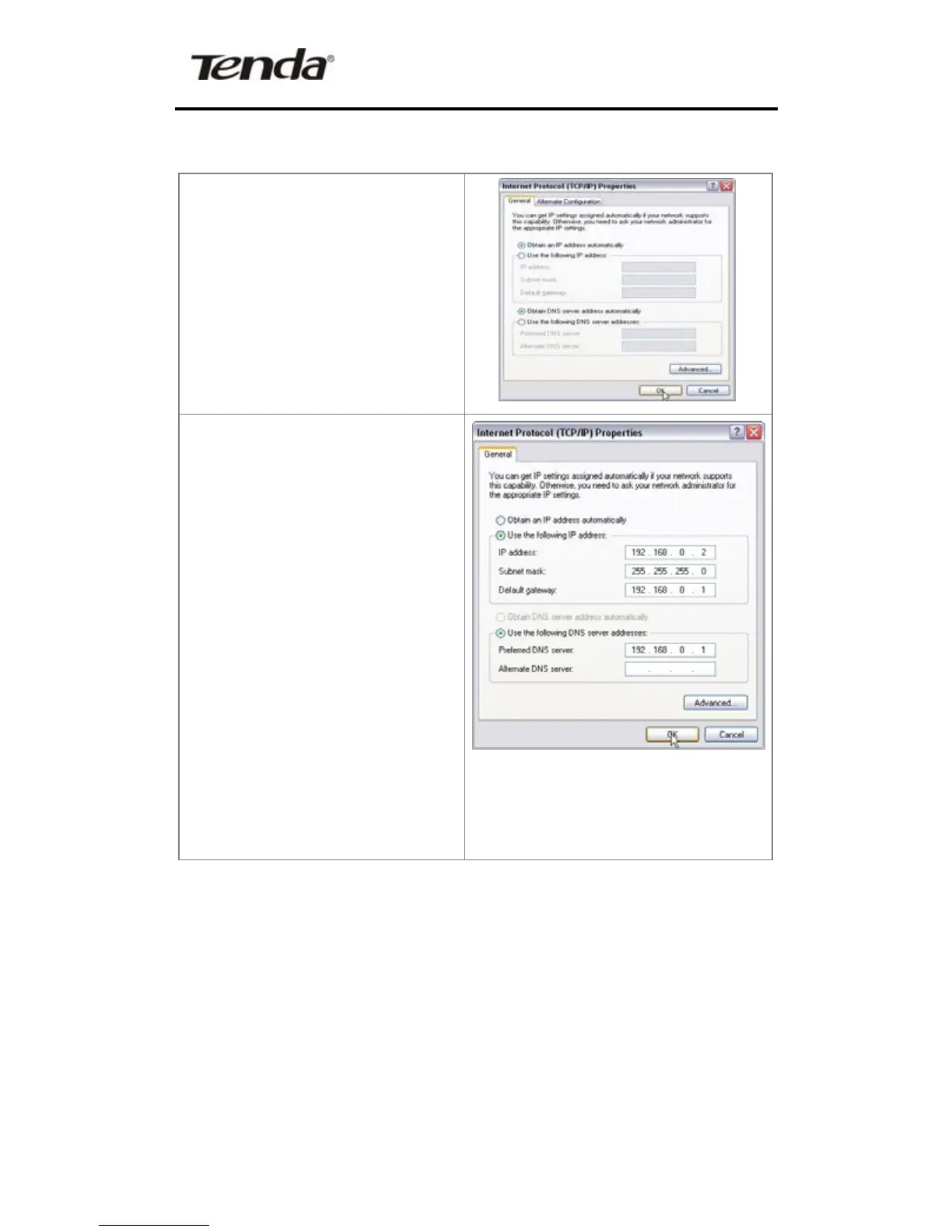

Select “Obtain an IP
address automatically”
and “Obtain DNS server
address automatically”.
Click “OK” to save the
configurations.
Or select “Use the
following IP address”
and enter the IP address,
Subnet mask, Default
gateway as shown right.
Of course, you need to
input the DNS server
address provided by your
ISP. Otherwise, you can
use the Router’s default
gateway as the DNS proxy
server. Click “OK” to save
the configurations.
8

Tenda W330R Specifications

General

Bandwidth	2.4 GHz
Input voltage	110 - 240 V
xDSL connection	No
Power requirements	AC 9 V, 1.2 A
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet, WLAN
Ethernet LAN	Yes
Receiver sensitivity	270M: -70dBm@10% PER; 130M: -70dBm@10% PER; 108M: -70dBm@10% PER; 54M: -73dBm@10% PER; 11M: -85dBm@8% PER; 6M: -88dBm@10% PER; 1M: -90dBm@8%
Antenna gain level (max)	2.5 dBi
Ethernet LAN (RJ-45) ports	4
Power consumption (typical)	6 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
