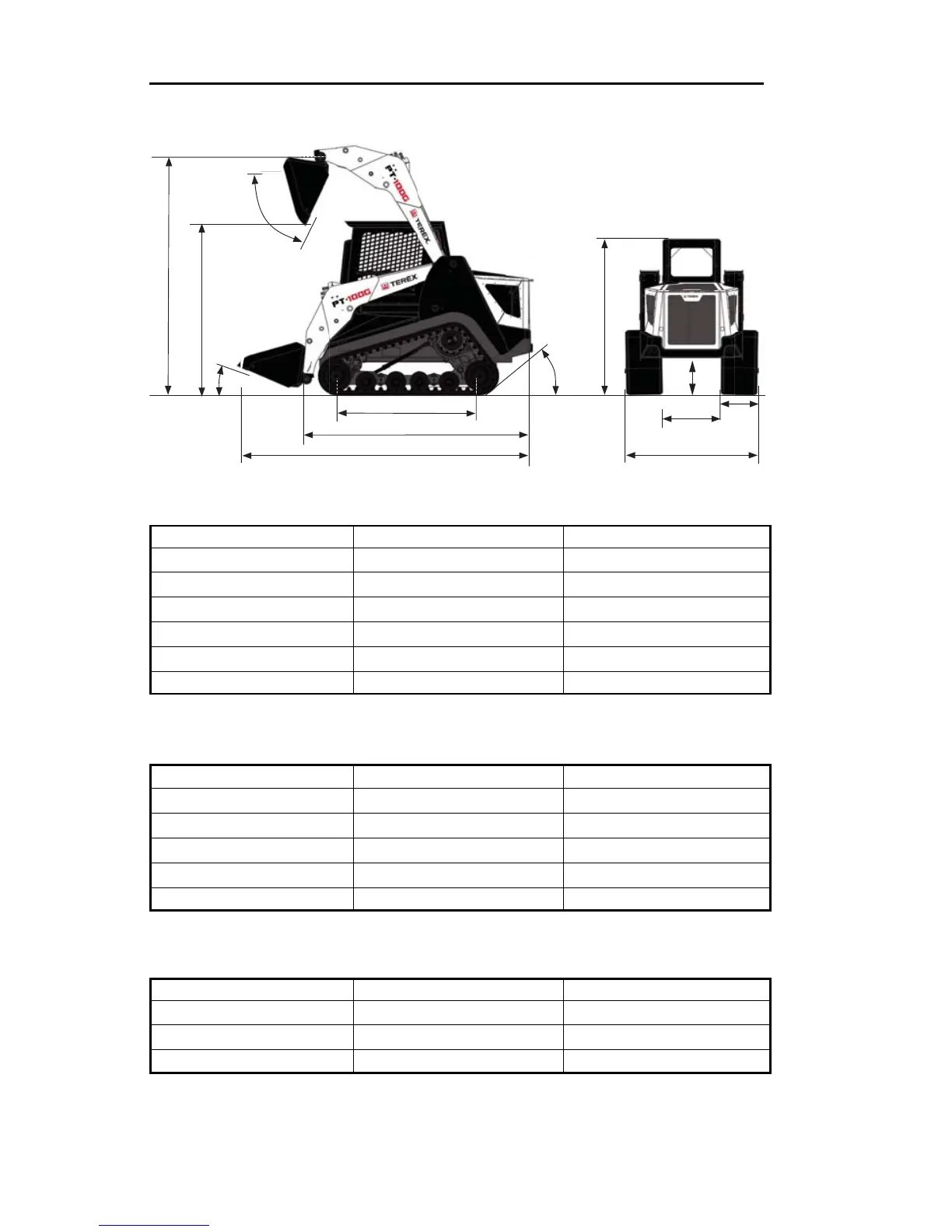

3.2 Views
3.3 Engine PT-100G PT-100G F
3.4 Electrical System PT-100G PT-100G F
3.5 Undercarriage PT-100G PT-100G F
71 in (1803 mm)
70 in (1778 mm)
117.5 in (2985 mm)
149 in (3785 mm)
14.75 in (375 mm)
91 in (2311 mm)
85.5 in (2172 mm)
43
o
18 in
(457 mm)
125 in (3175 mm)
45
o
25
o
34 in
(864 mm)
Make
Perkins Perkins
Type
1104D-44T 1104D-44T
Design
4 cyl. in line (turbo) 4 cyl. in line (turbo)
Displacement
268 in. ³ (4.4L) 268 in. ³ (4.4L)
Power @ 2200 RPM
99.9 hp (73.5 kW) 99.9 hp (73.5 kW)
Admissible inclines
30° all directions (engine) 30° all directions (engine)
Coolin
g
Water-antifreeze blend Water-antifreeze blend
Operating Voltage
12 V 12 V
Battery @ 32° F (0° C)
12V 950 CCA 12V 950 CCA
Alternator
12V 120A 12V 120A
Starter
12V 12V
Starting Aid
Glow Plugs, w/pre-heat Glow Plugs, w/pre-heat
Li
g
htin
g
S
y
stem
Cab mounted work lights Cab mounted work lights
Type
Suspended, rubber track Suspended, rubber track
Max. Speed (Low/High)
6/10 mph (9.7/16.1 kph ) 6/10 mph (9.7/16.1 kph )
Power Transmission
variable disp. variable disp.
Track length, on ground
71 in. (180.3 cm) 71 in. (180.3 cm)
36
