Terex DTM 00101 (standard) - Emergency Exits

4 MACHINE DESCRIPTION / CONTROLS
58
4.11 Emergency Exits
Familiarize yourself with the emergency exits and
associated features located in the cab enclosure
prior to operation. These features allow an operator
to escape from the cab in an emergency.
Standard Operator Escape (door and rear window
exit) Firmly grasp the triangular tag attached to the
molding on either the door window or rear window.
Pull on the tag forcefully to remove the window molding, then push or kick the
window out to escape (fig. 4.11-3).

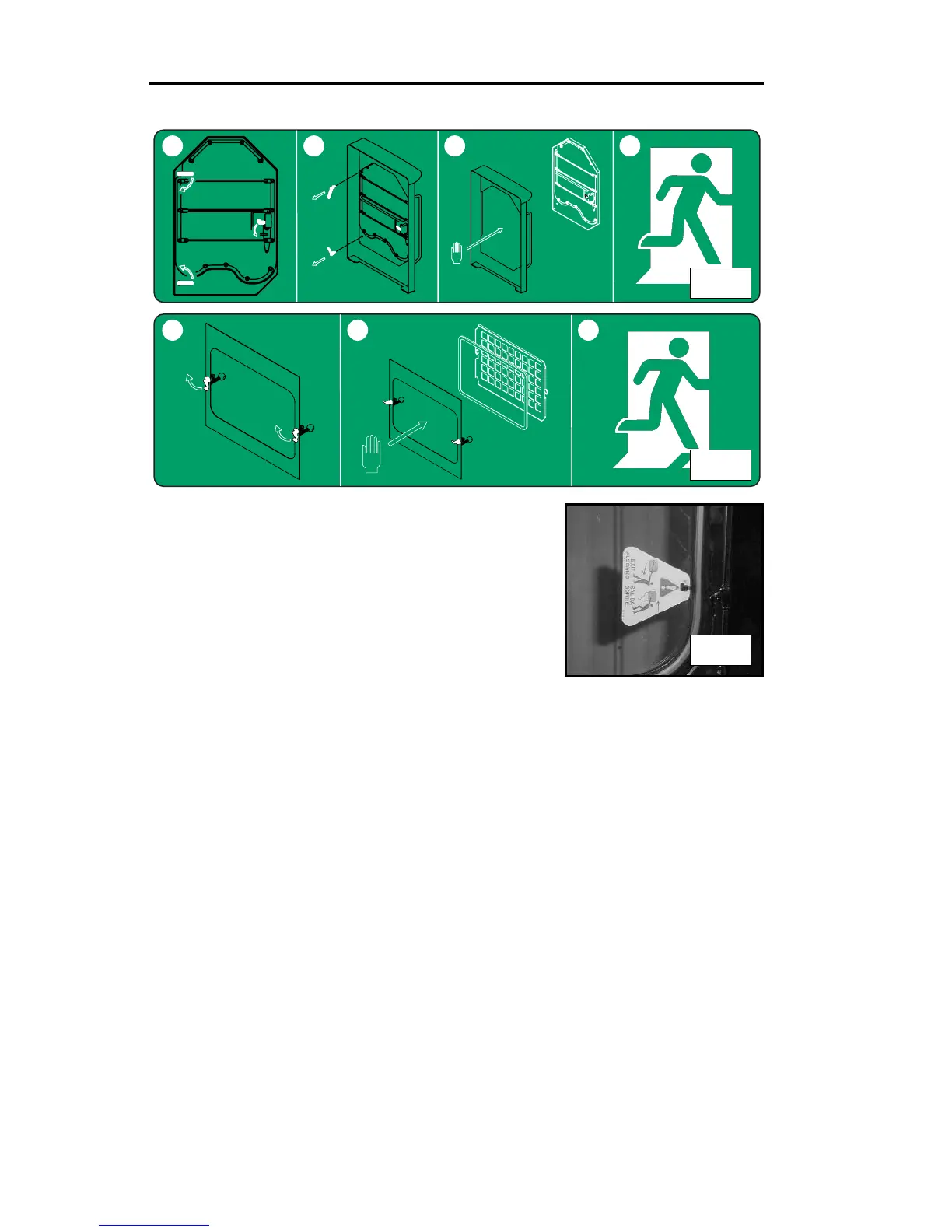

Forestry Operator Escape (door exit): Firmly grasp the red levers attached to the
left side of the door opening. Turn the upper lever
clockwise and the lower
lever counter-clockwise to release the door from its hinges. Press down on the
door latch lever to release it from the cab, then forcefully push or kick the door off
of the hinges to escape (fig. 4.11-1).
Forestry Operator Escape (rear window exit): Lift the clamp levers located on
each side of the rear window upward to release the window assembly from the
cab. Push or kick the window out forcefully to escape (fig. 4.11-2).
4.11-3
2076-213
1 2 43
2076-212
1 2 3
4.11-1
4.11-2
