7.4 Lubrication Points

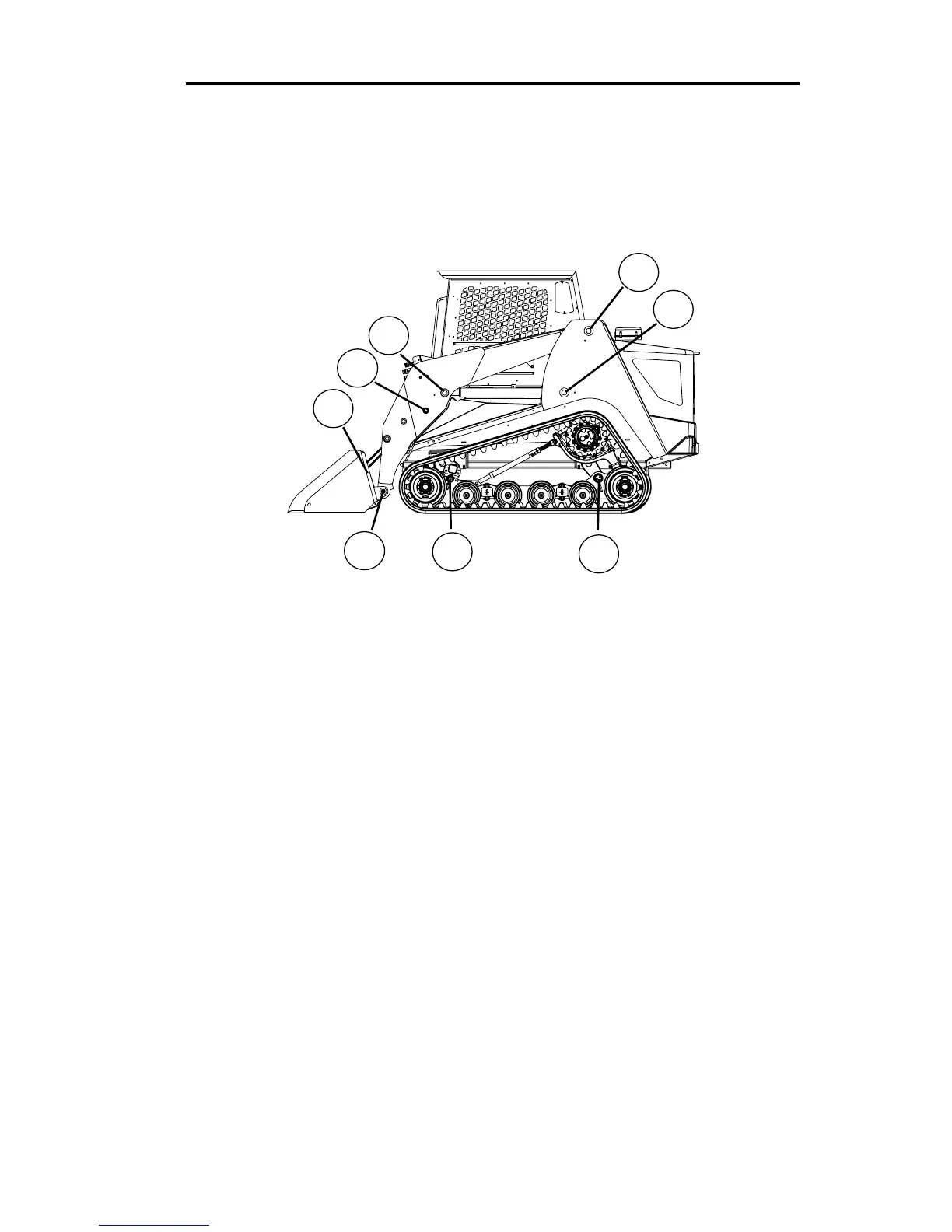

The illustration below shows the location of grease points found on the left side of
the machine. Identical points also exist on the opposite side of the machine.
Lubricate all points daily, prior to operation.
A. Lower Bucket Cylinder Pivot
B. Upper Bucket Cylinder Pivot
C. Front Lift Cylinder Pivot
D. Lift Arm Pivot
E. Rear Lift Cylinder Pivot
F. Rear Axle Pivot (2)
G. Front Axle Pivot (2)
H. Lower Bucket Pivot
G
F
D
E
H
A
B
C
