Terex PT100 Forestry - Fuel Tank Installation

Compact Track Loader
6. Chassis Disassembly and Assembly
6-3

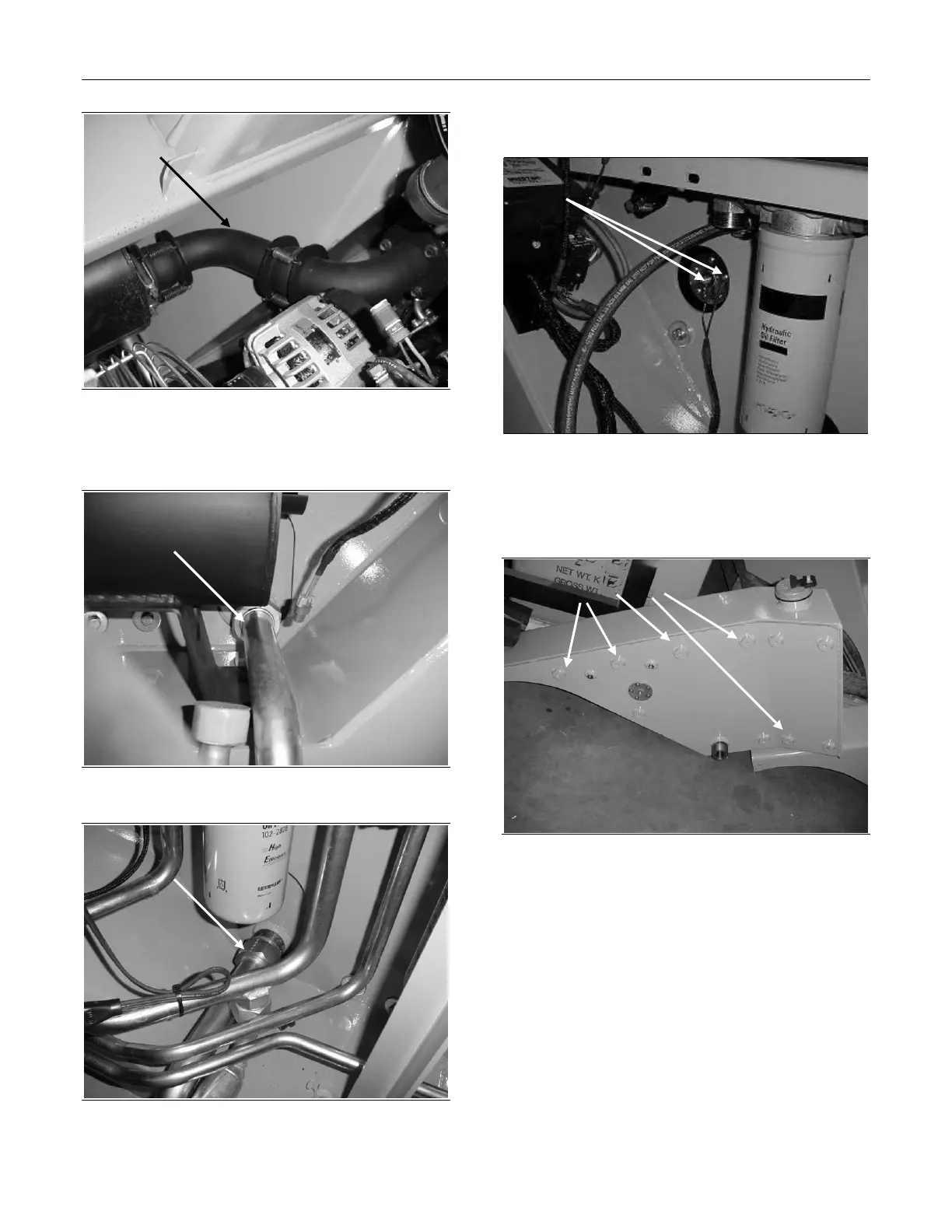

Figure 6-5
3. Loosen up the cross over tube on both ends,
where it enters each fuel tank. Fig. 6-6, 6-7)
Figure 6-6
Figure 6-7
4. Disconnect the wires to the fuel sending unit on
the right side tank. (fig. 6-8)
Figure 6-8
5. Remove the fuel tank mounting bolts, vent and
return hoses on each tank, then use a floor jack to
lower the tanks slowly and remove. (fig. 6-9)
Figure 6-9
6. Once a fuel tank has been removed, the cross
over tube can be removed from a hole on either side
of the frame.
Fuel Tank Installation
1. To install fuel tank, reverse the removal
procedure.
Remove Exhaust
Pipe
Cross-over Tube
Fitting, Left Side
Cross-over Tube
Fitting, Right Side
Remove Mounting
bolts
Sending Unit
Wires
Cross-over Tube
Fitting, Left Side
