Compact Track Loader
10. Undercarriage Disassembly and Assembly
10-3

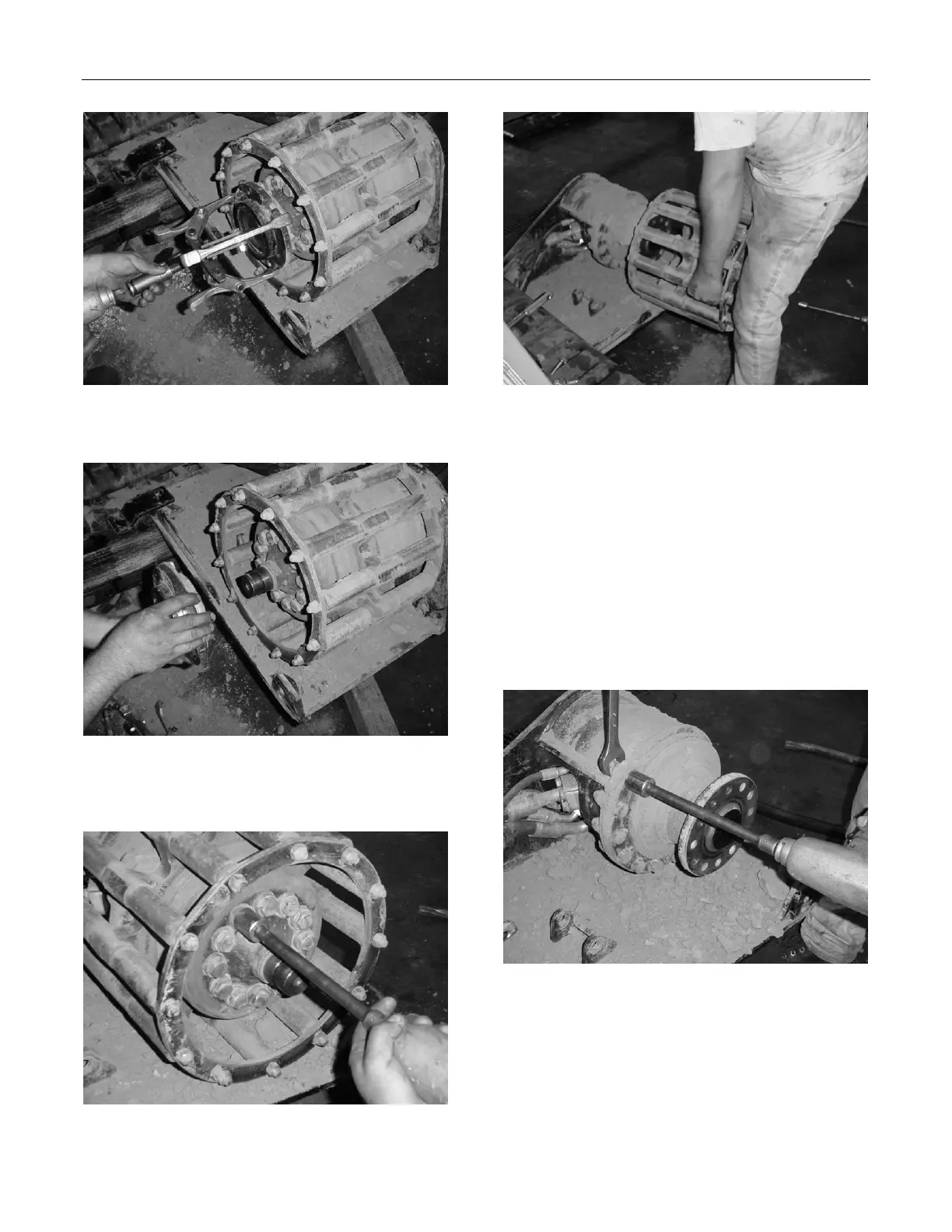

Figure 10-23
4. Using a puller, remove the bearing and bearing
housing from the shaft. (fig. 10-23, 10-24)
Figure 10-24
5. Remove the bolts that fasten the sprocket to the
drive motor, then remove the sprocket. (fig.10-
25, 10-26)
Figure 10-25
Figure 10-26
Sprocket Installation
1. To install sprocket, reverse the removal
procedure.
Drive Motor Removal
1. Drain the hydraulic fluid, see chapter 11.
Remove the bolts which fasten the drive motor
to the drive table. (fig.10-27)
Figure 10-27
2. Disconnect all hoses from the drive motor and
cap fitting and hoses. (fig. 10-27- 10-30)
To Next Page
