7. Radiator/Oil Cooler Disassembly and Assembly
7-5

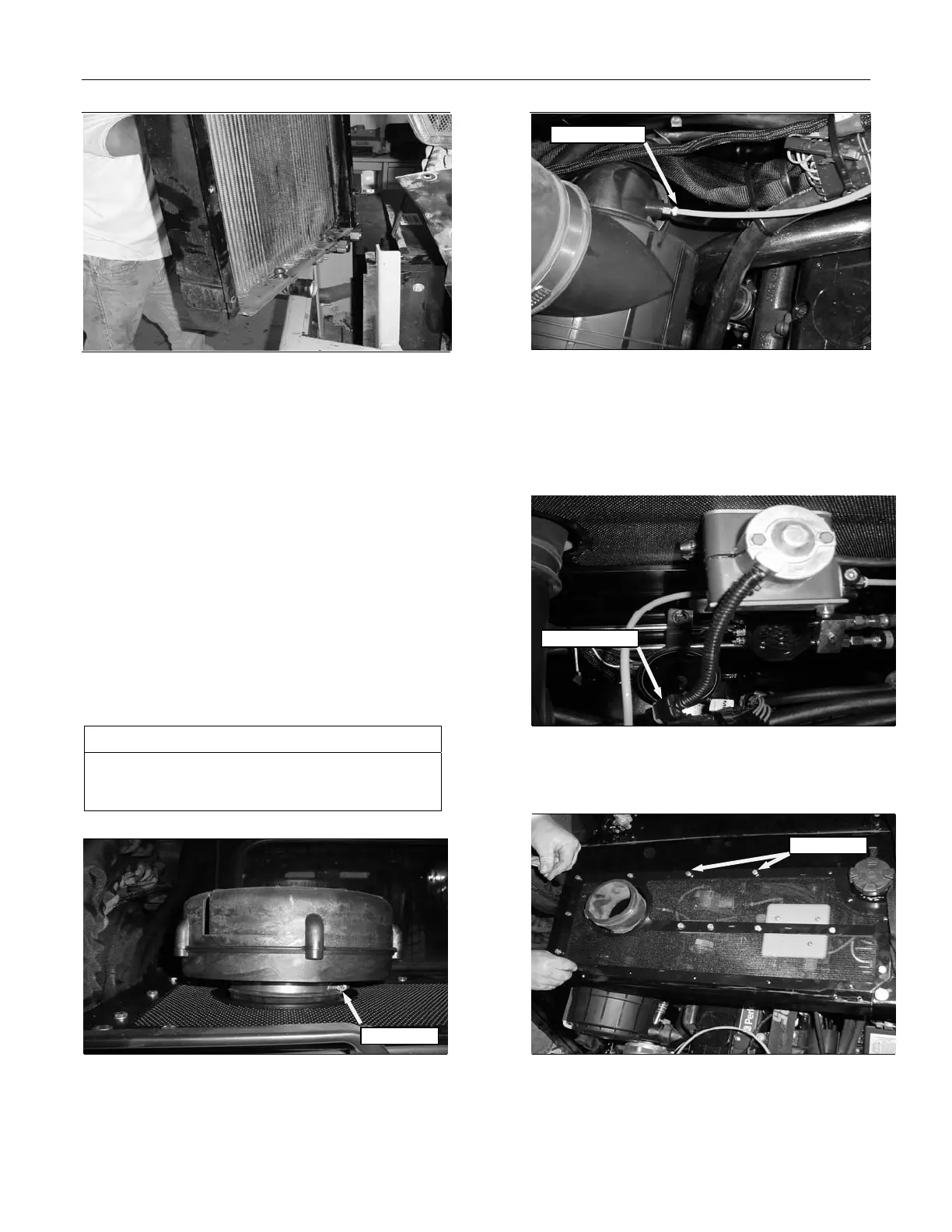

Figure 7-12
9. Lift the radiator/cooler straight upward to remove
it. It may be necessary to move the fan shroud
out of the way for the radiator/cooler to clear.
(fig. 7-12)
Radiator/Cooler Installation
1. To install radiator/cooler, reverse the removal
procedure.
Reversible Fan Compressor and Control
Box Removal
The tools required for reversible fan compressor re-
moval and installations are listed below. Use manu-
facturer-recommended tools whenever possible.
Required Tools
Combination Wrench
Socket Wrench
Screwdriver
Figure 7-13
1. Remove the pre-cleaner assembly by loosening
clamp with blade type screwdriver and sliding it
upward.
Figure 7-14
2. To disconnect blue air line from air filter hosing
and the supply line to fan, press the yellow part
of fitting inward, then pull the hose out of the fit-
ting.
Figure 7-15
3. Disconnect wiring harness from compressor.
Figure 7-16
4. Remove fasteners securing the upper screen to
the cowl, then remove the screen.
Remove
Disconnect
Disconnect
Loosen
