7. Radiator/Oil Cooler Disassembly and Assembly
7-4

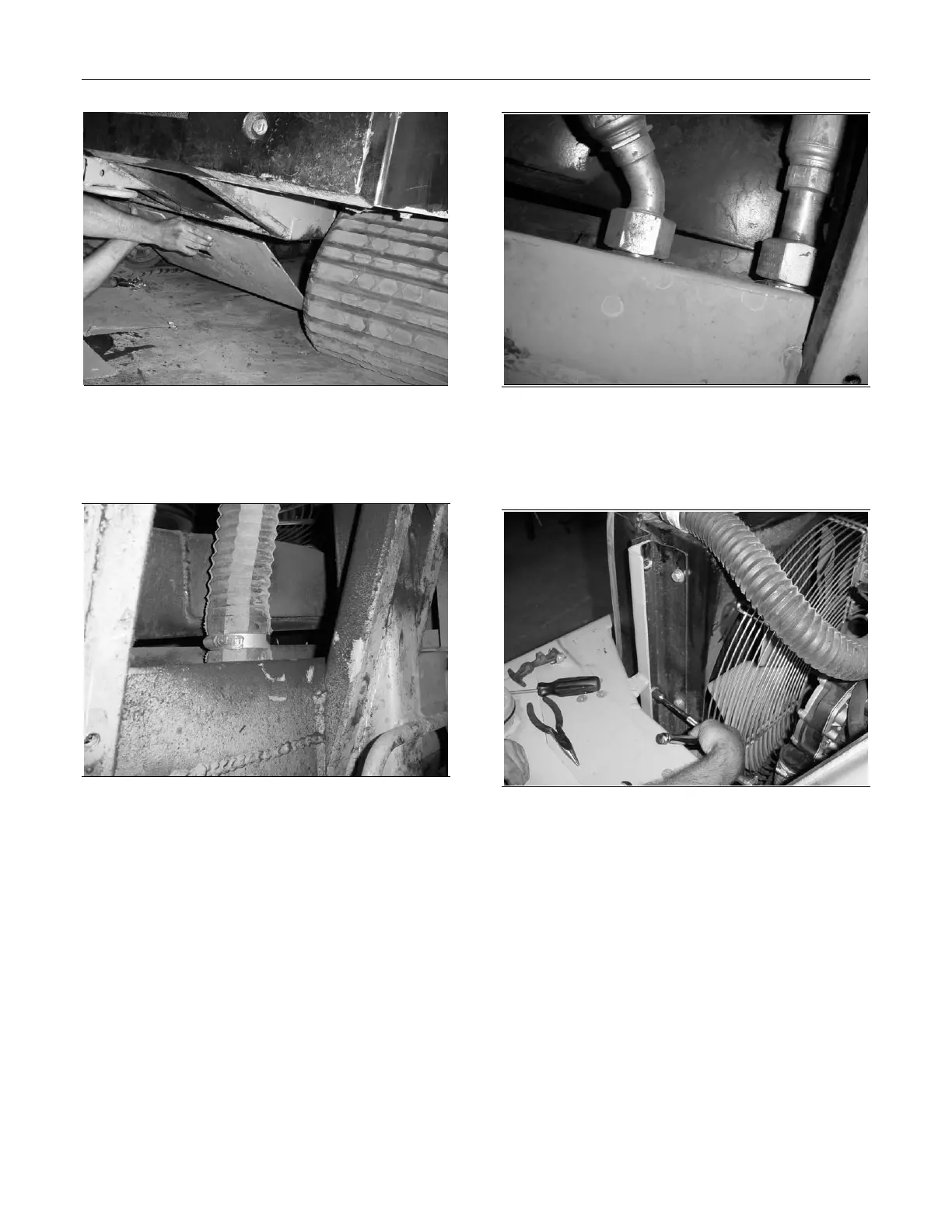

Figure 7-8
5. Remove rear engine skid plate from the ma-
chine. This will give you access to the lower ra-
diator hose and lower hydraulic hoses. (fig. 7-8)
Figure 7-9
6. Remove the lower radiator hose from the radia-
tor section. (fig. 7-9)
Figure 7-10
7. Remove the two lower hydraulic oil cooler hos-
es. Cap and plug the fittings and hoses. (fig. 7-
10)
Figure 7-11
8. Remove the six bolts that fasten the Radia-
tor/Cooler to the frame (3 per side). (fig. 7-11)
