7. Radiator/Oil Cooler Disassembly and Assembly
7-6

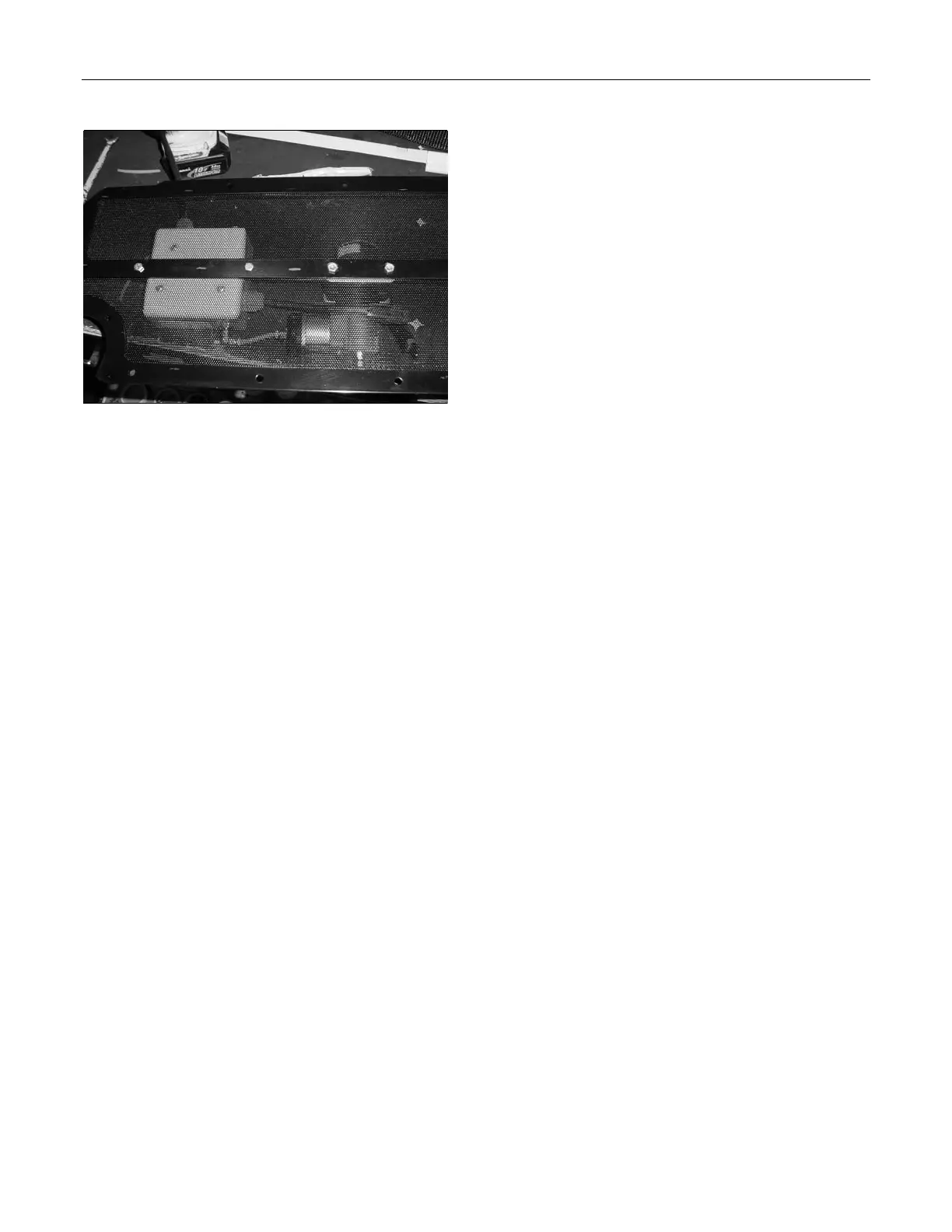

Figure 7-17
5. To remove the compressor:
Remove the mounting screws securing the
compressor the screen, then remove.
To remove the control box:
Remove the mounting screws securing the con-
trol box to the screen, then remove.
Reversible Fan Compressor and Control
Box Installation
1. To install compressor and control box, reverse
the removal procedure.
