Compact Track Loader
10. Undercarriage Disassembly and Assembly
10-4

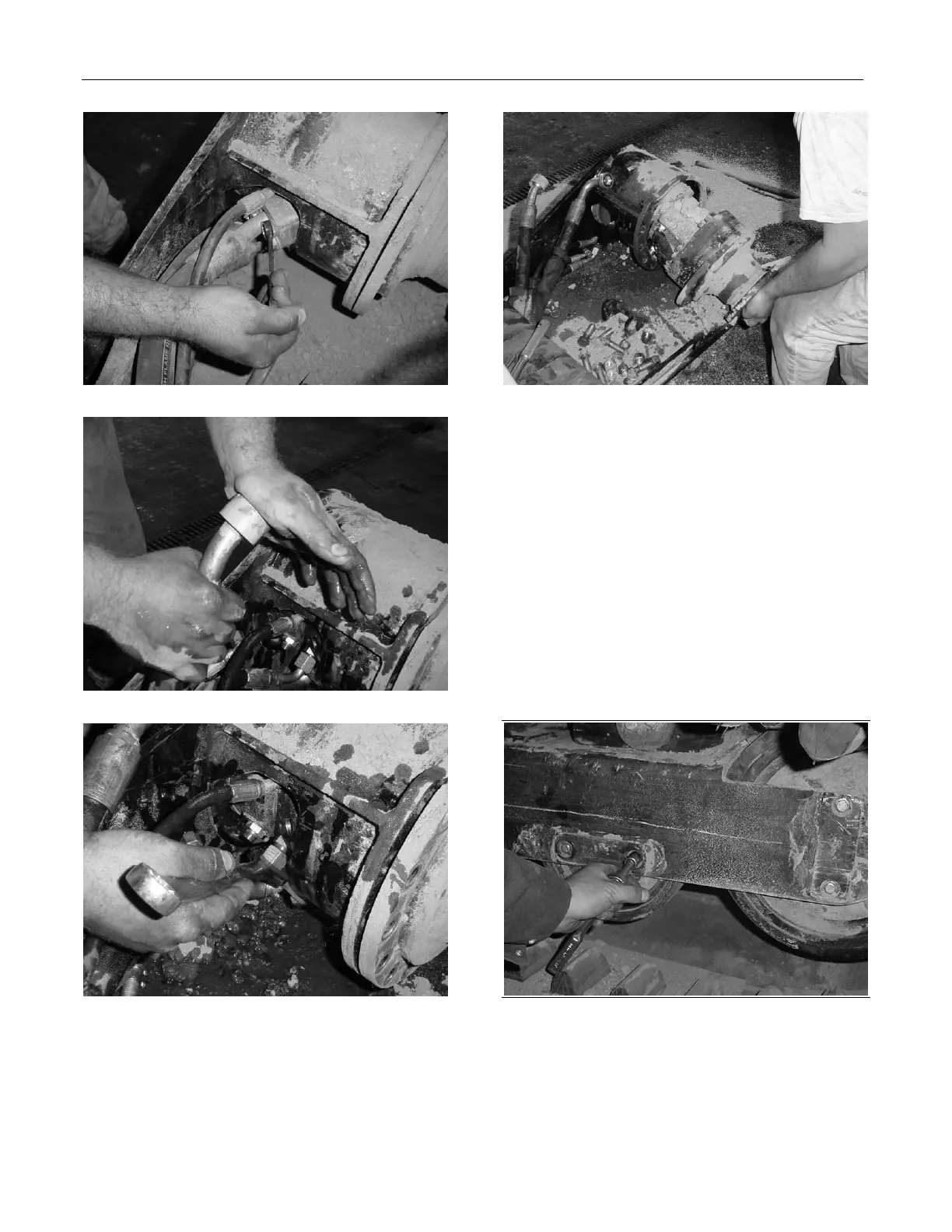

Figure 10-28
Figure 10-29
Figure 10-30
Figure 10-31
3. Pull the drive motor free from the drive table
housing.
Drive Motor Installation
2. To install drive motor, reverse the removal
procedure.
Wheel Replacement
1. Remove the bolts which fasten the wheel tube to
the frame rail, there are two on the inside and two on
the outside. (fig. 10-32)
Figure 10-32
2. Remove the wheel shaft keeper plates from both
ends of the shaft.
