Compact Track Loader
10. Undercarriage Disassembly and Assembly
10-5

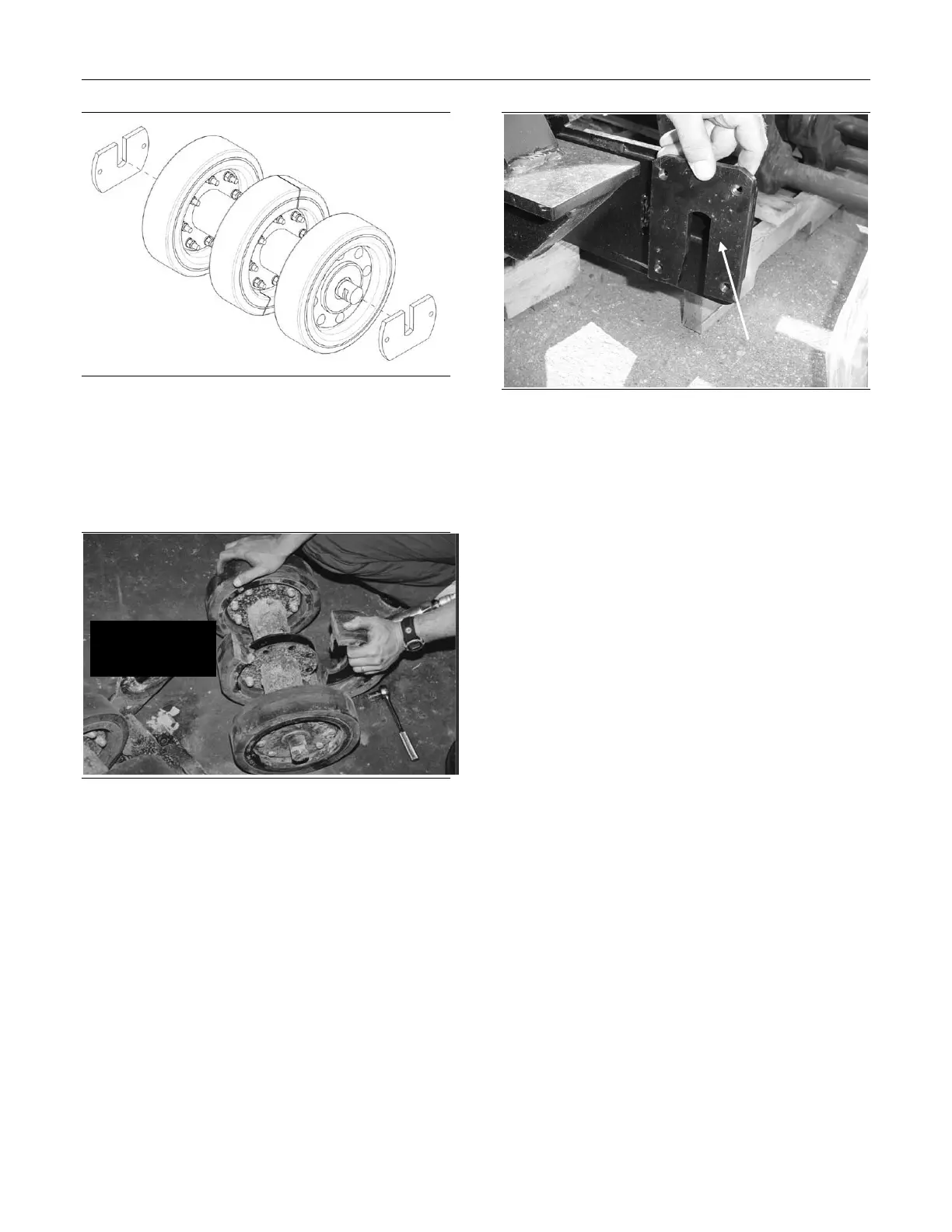

Figure 10-33
3. Unbolt the wheels from the tube and replace (the
center wheel is split for easy removal and
installation). (fig. 10-34)
Figure 10-34
Wheel Installation
1. To install wheels, reverse the removal
procedure.
14" Wheel Keeper Plates
The 14" Wheels on each end can be spaced out 1/4"
(.64 cm) each for a total of 1/2" (1.27 cm). This can
be done if the track has stretched to the point where
the standard adjustment holes are not enough.
Figure 10-35
1. Flip both the inside and outside keeper plates on
the end 14" wheels to increase the length. The 14"
wheel scrapers may need to be adjusted after this is
performed. (fig. 10-35)
Center wheel is
split
Shown in the
"flipped" position
To Next Page
