Compact Track Loader
10. Undercarriage Disassembly and Assembly
10-2

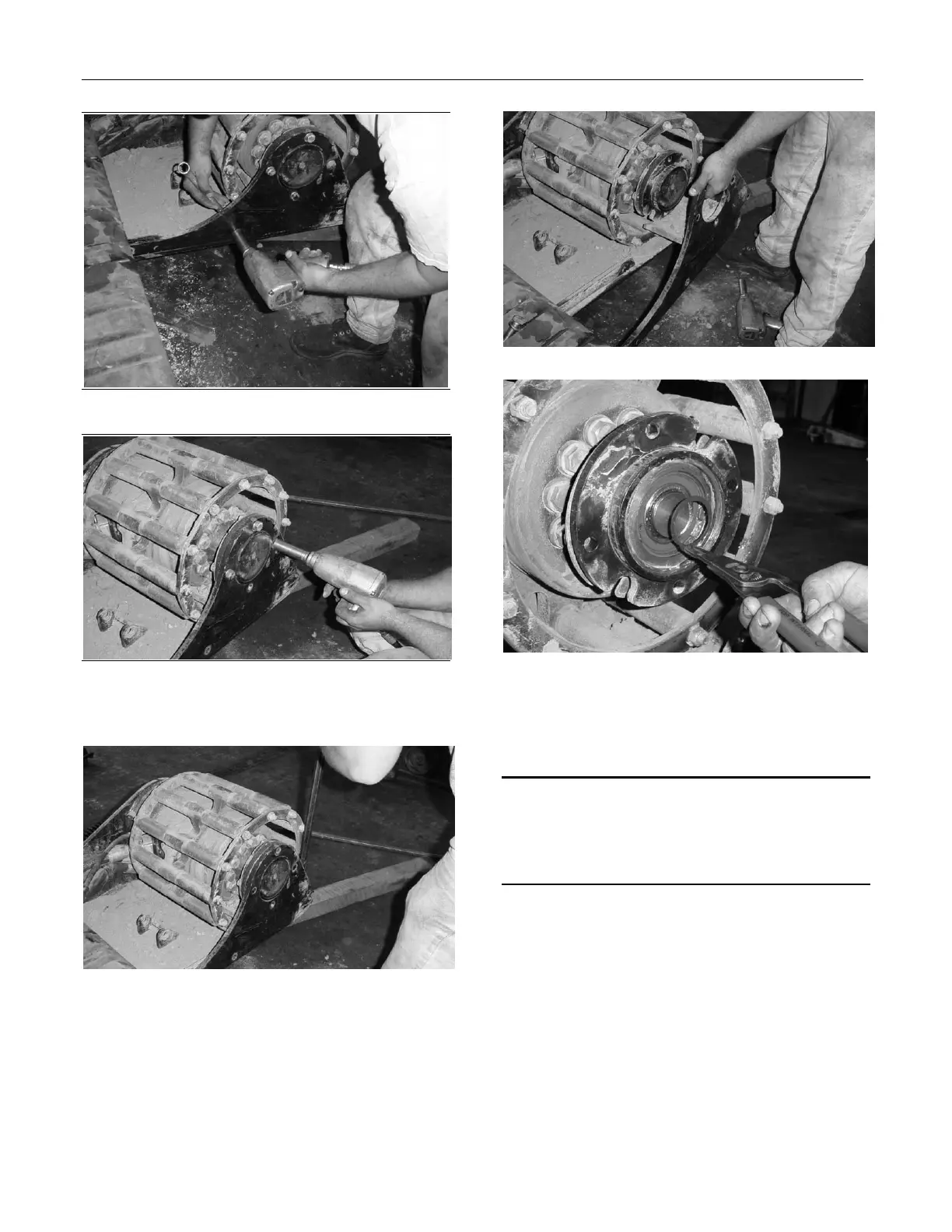

Figure 10-18
Figure 10-19
2. Pry the bearing plate off and remove. (fig. 10-20,
10-21)
Figure 10-20
Figure 10-21
Figure 10-22
2. Remove the soft plug from the end of bearing
flange and remove the snap ring on the shaft.
The plug may be either metal or rubber
depending on the manufacture date of the
machine.
Note: To remove the metal plug, Tap around the
perimeter of the plug to loosen it and remove.
Note: To remove the rubber plug, tap a blade type
screwdriver in at the edge of the cap and pry out.
The rubber cap must be replaced upon removal.
