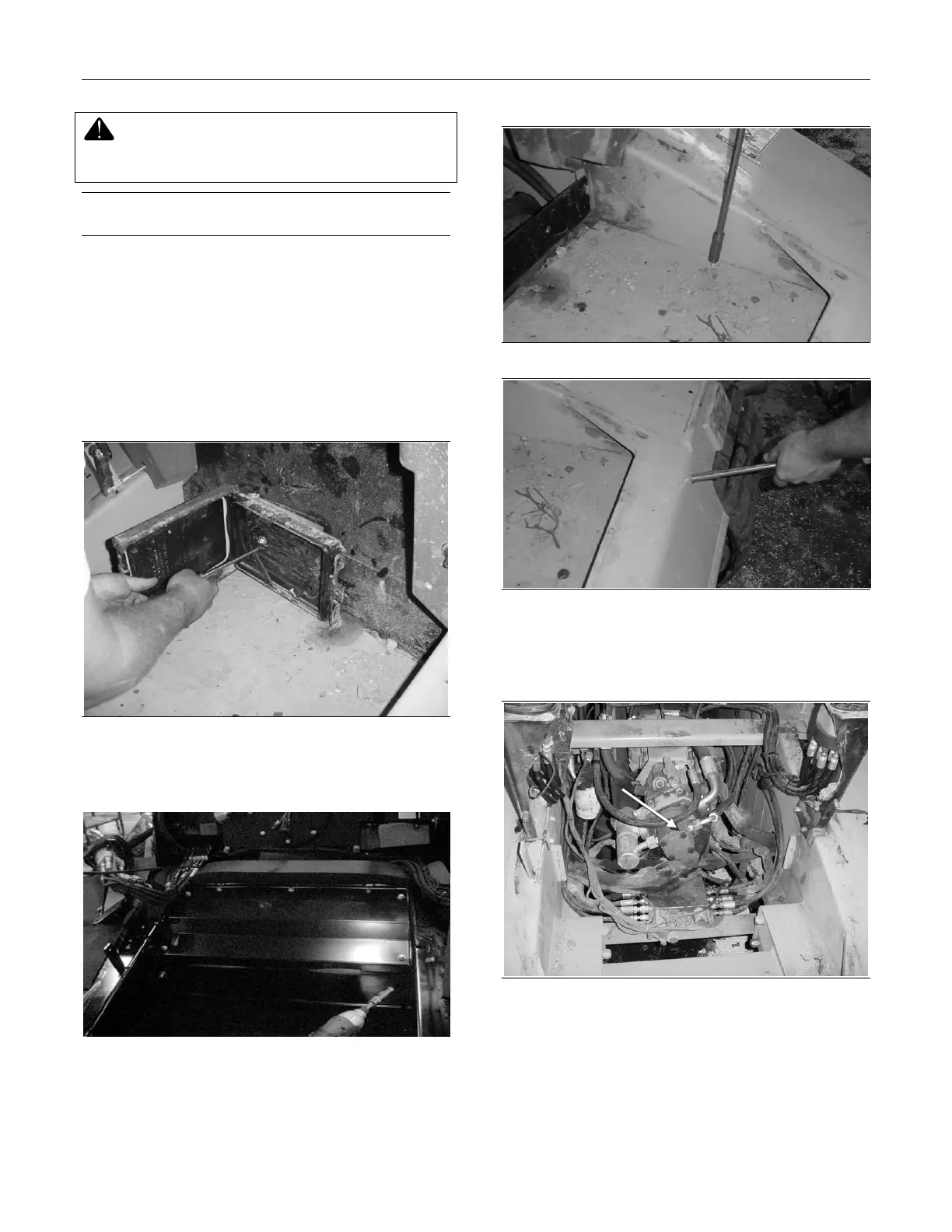

Compact Track Loader
9. Transmission and Drive Disassembly and Assembly
9-2
Collect and contain liquids in a suitable contain-
er. Dispose of all liquids according to local regula-
tions and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. Raise the lift arms and cab according to Tilt-Up
Canopy procedure on page 11-5 of this manual.
2. Relieve hydraulic pressure from the auxiliary
circuit.
3. Drain the hydraulic fluid. Refer to Chapter 11.
Hydraulic Fluid and Filter Change.
Figure 9-1
4. Remove the Operators Manual compartment.
(fig.9-1)
Figure 9-2
5. Remove the heel plate directly under the seat.
Remove the steel consoles, and the hand/foot
throttle mechanisms (page 8-2) prior to
removing the heel plate (fig.9-2)
Figure 9-3
Figure 9-4
6.
Remove the upper and lower floor plate.
(fig. 9-3-,9-4)
Figure 9-5
7. Disconnect the two hoses attached to charge
pump. (fig. 9-5)
Remove hoses
attached to
charge pump
To Next Page
