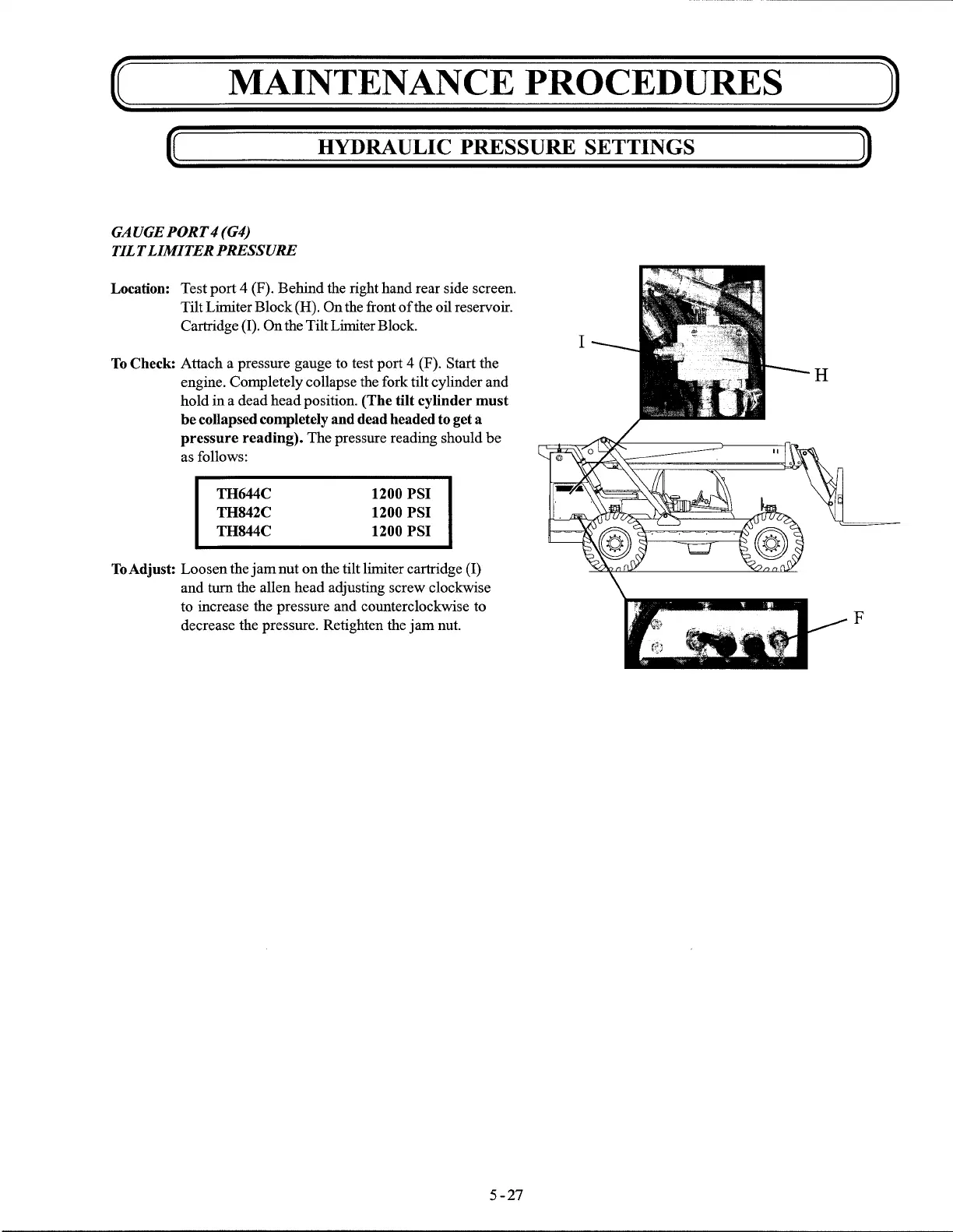

MAINTENANCE PROCEDURES
HYDRAULIC PRESSURE SETTINGS
GAUGE
PORT
4
(G4)
TILT
LIMITER
PRESSURE
Location: Test port 4 (F). Behind the right hand rear side screen.
Tilt Limiter Block (H).
On
the front
of
the oil reservoir.
Cartridge (I). On the Tilt Limiter Block.
To
Check: Attach a pressure gauge to test port 4 (F). Start the
engine. Completely collapse the fork tilt cylinder and
hold in a dead head position. (The tilt cylinder
must
be collapsed completely and dead headed to get a
pressure
reading).
The pressure reading should
be
as follows:
TH644C
TH842C
TH844C
1200 PSI
1200
PSI
1200 PSI
To
Adjust: Loosen the
jam
nut
on the tilt limiter cartridge
(I)
and
tum
the allen head adjusting screw clockwise
to increase the pressure and counterclockwise to
decrease the pressure. Retighten the
jam
nut.
5-27
