Terramite TSS38 - View from Right Side of Operators Position

3.2
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

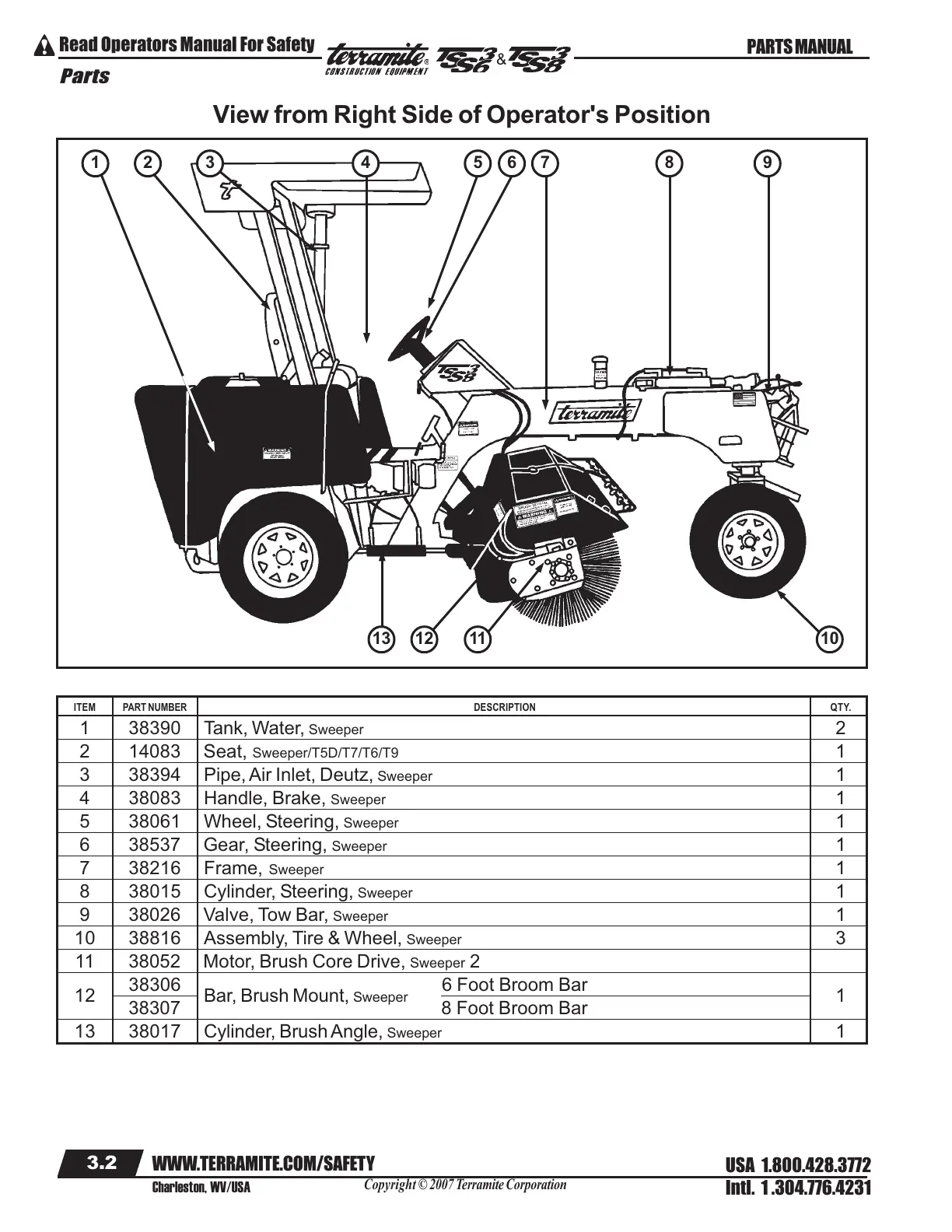

View from Right Side of Operator's Position
ITEM PART NUMBER DESCRIPTION QTY.
1 38390 Tank, Water, Sweeper 2
2 14083 Seat, Sweeper/T5D/T7/T6/T9 1
3 38394 Pipe, Air Inlet, Deutz, Sweeper 1
4 38083 Handle, Brake, Sweeper 1
5 38061 Wheel, Steering, Sweeper 1
6 38537 Gear, Steering, Sweeper 1
7 38216 Frame, Sweeper 1
8 38015 Cylinder, Steering, Sweeper 1
9 38026 Valve, Tow Bar, Sweeper 1
10 38816 Assembly, Tire & Wheel, Sweeper 3
11 38052 Motor, Brush Core Drive, Sweeper 2
12
38306
Bar, Brush Mount, Sweeper
6 Foot Broom Bar
1
38307 8 Foot Broom Bar
13 38017 Cylinder, Brush Angle, Sweeper 1
1 2 3 4 5 6 7 8 9
10111213
