Terramite TSS38 - View from Left Side of Operators Position

3.3
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation

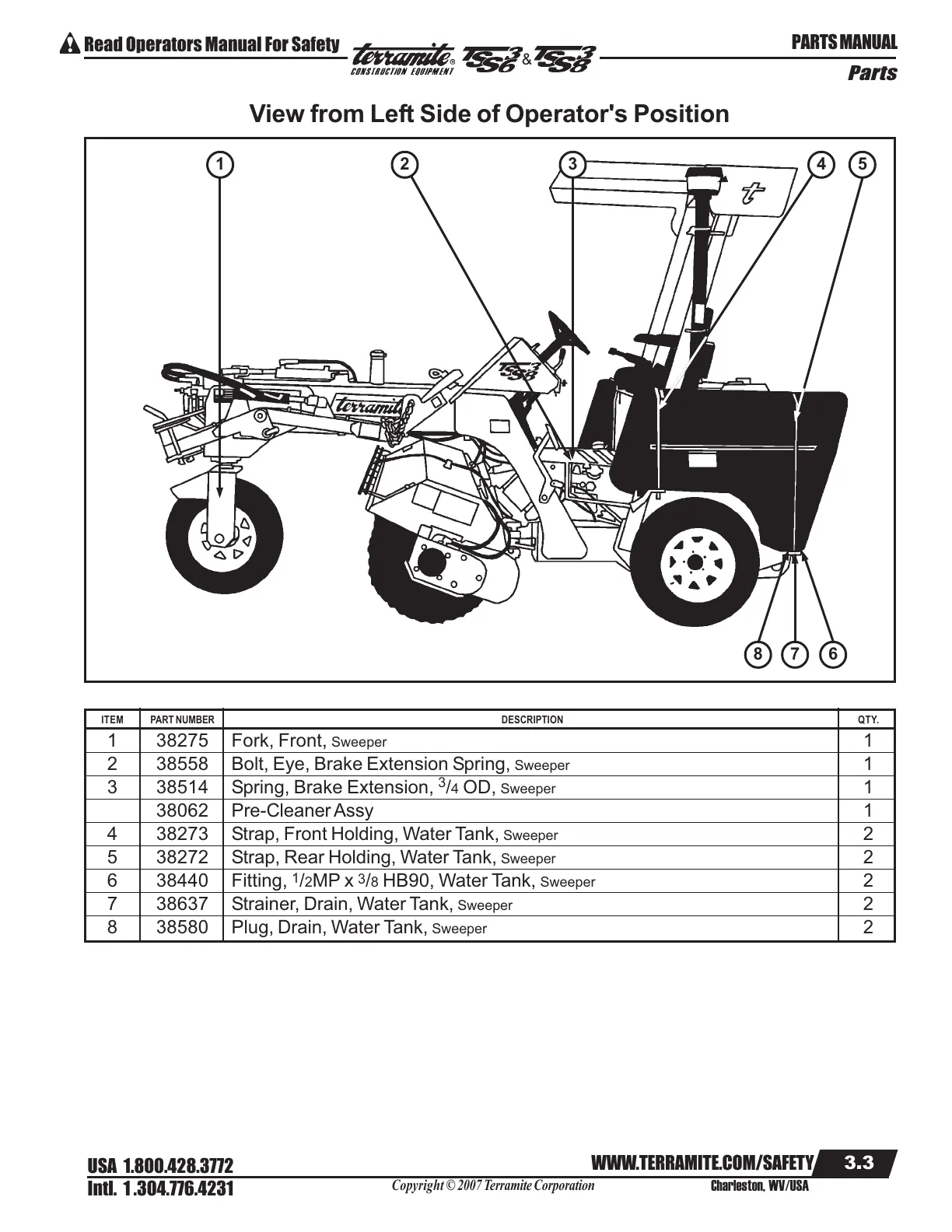

View from Left Side of Operator's Position
ITEM PART NUMBER DESCRIPTION QTY.
1 38275 Fork, Front, Sweeper 1
2 38558 Bolt, Eye, Brake Extension Spring, Sweeper 1
3 38514 Spring, Brake Extension,
3
/4 OD, Sweeper 1
38062 Pre-Cleaner Assy 1
4 38273 Strap, Front Holding, Water Tank, Sweeper 2
5 38272 Strap, Rear Holding, Water Tank, Sweeper 2
6 38440 Fitting,
1
/2MP x
3
/8 HB90, Water Tank, Sweeper 2
7 38637 Strainer, Drain, Water Tank, Sweeper 2
8 38580 Plug, Drain, Water Tank, Sweeper 2
1 2 3 4 5
678
