Terramite TSS38 - View of Left Side Front

3.11
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation

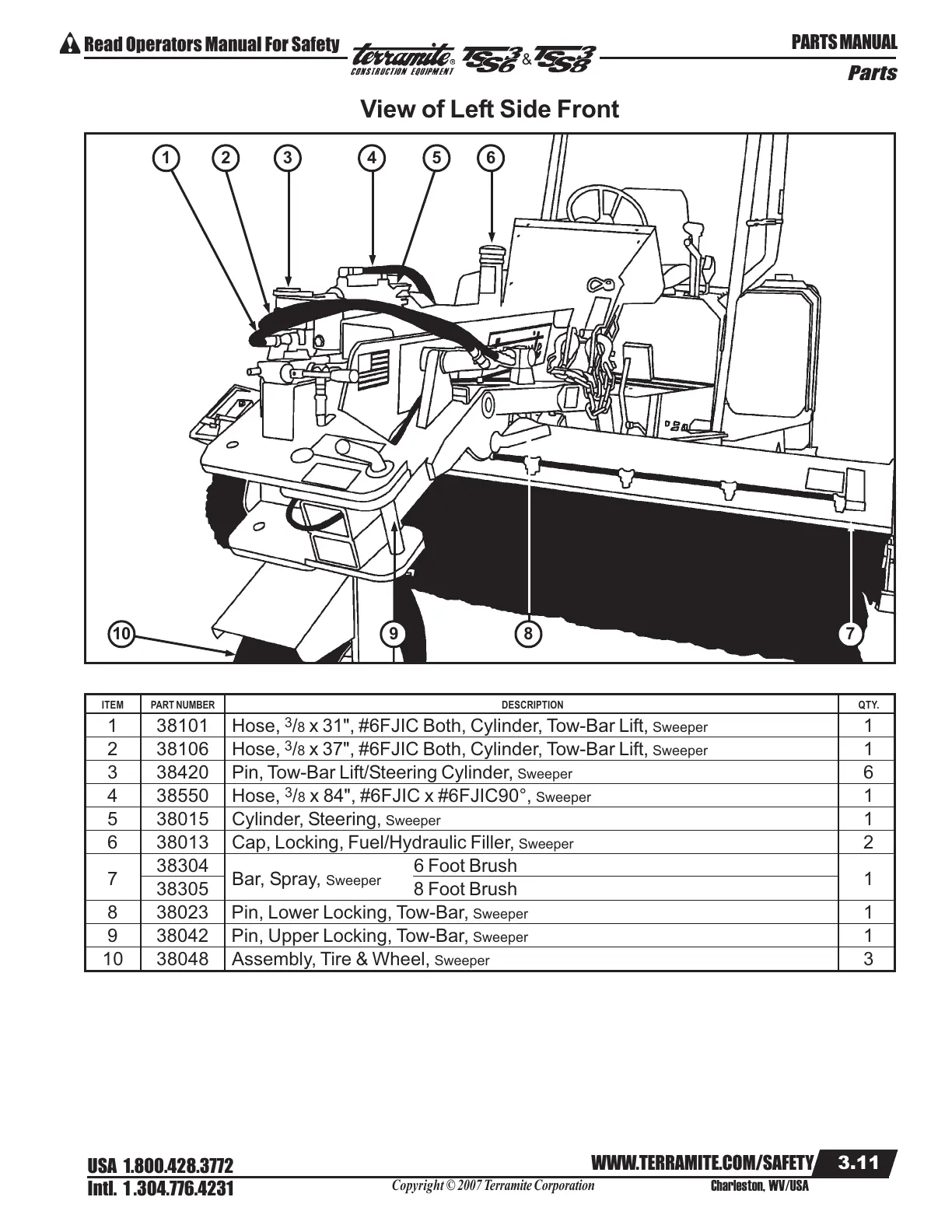

View of Left Side Front
1 2 3 4 5 6
8910
ITEM PART NUMBER DESCRIPTION QTY.
1 38101 Hose,
3
/8 x 31", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
2 38106 Hose,
3
/8 x 37", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
3 38420 Pin, Tow-Bar Lift/Steering Cylinder, Sweeper 6
4 38550 Hose,
3
/8 x 84", #6FJIC x #6FJIC90°, Sweeper 1
5 38015 Cylinder, Steering, Sweeper 1
6 38013 Cap, Locking, Fuel/Hydraulic Filler, Sweeper 2
7
38304
Bar, Spray, Sweeper
6 Foot Brush
1
38305 8 Foot Brush
8 38023 Pin, Lower Locking, Tow-Bar, Sweeper 1
9 38042 Pin, Upper Locking, Tow-Bar, Sweeper 1
10 38048 Assembly, Tire & Wheel, Sweeper 3
7
