Terramite TSS38 - View of Right Side Front

3.9
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation

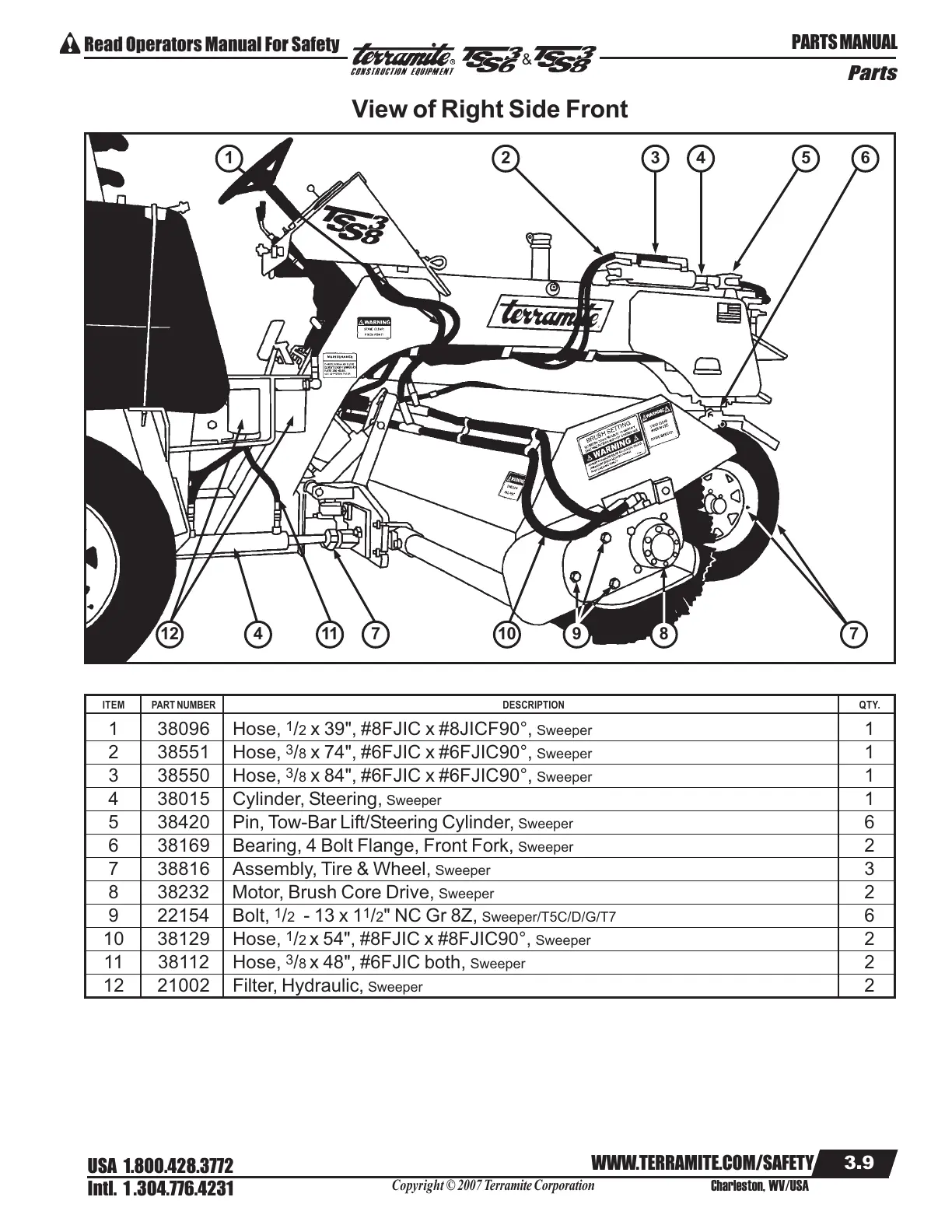

View of Right Side Front
2 3 4 5 6
789107114
ITEM PART NUMBER DESCRIPTION QTY.
1 38096 Hose,
1
/2 x 39", #8FJIC x #8JICF90°, Sweeper 1
2 38551 Hose,
3
/8 x 74", #6FJIC x #6FJIC90°, Sweeper 1
3 38550 Hose,
3
/8 x 84", #6FJIC x #6FJIC90°, Sweeper 1
4 38015 Cylinder, Steering, Sweeper 1
5 38420 Pin, Tow-Bar Lift/Steering Cylinder, Sweeper 6
6 38169 Bearing, 4 Bolt Flange, Front Fork, Sweeper 2
7 38816 Assembly, Tire & Wheel, Sweeper 3
8 38232 Motor, Brush Core Drive, Sweeper 2
9 22154 Bolt,
1
/2 - 13 x 1
1
/2" NC Gr 8Z, Sweeper/T5C/D/G/T7 6
10 38129 Hose,
1
/2 x 54", #8FJIC x #8FJIC90°, Sweeper 2
11 38112 Hose,
3
/8 x 48", #6FJIC both, Sweeper 2
12 21002 Filter, Hydraulic, Sweeper 2
1
12
