Terramite TSS38 - Page 32

3.10
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

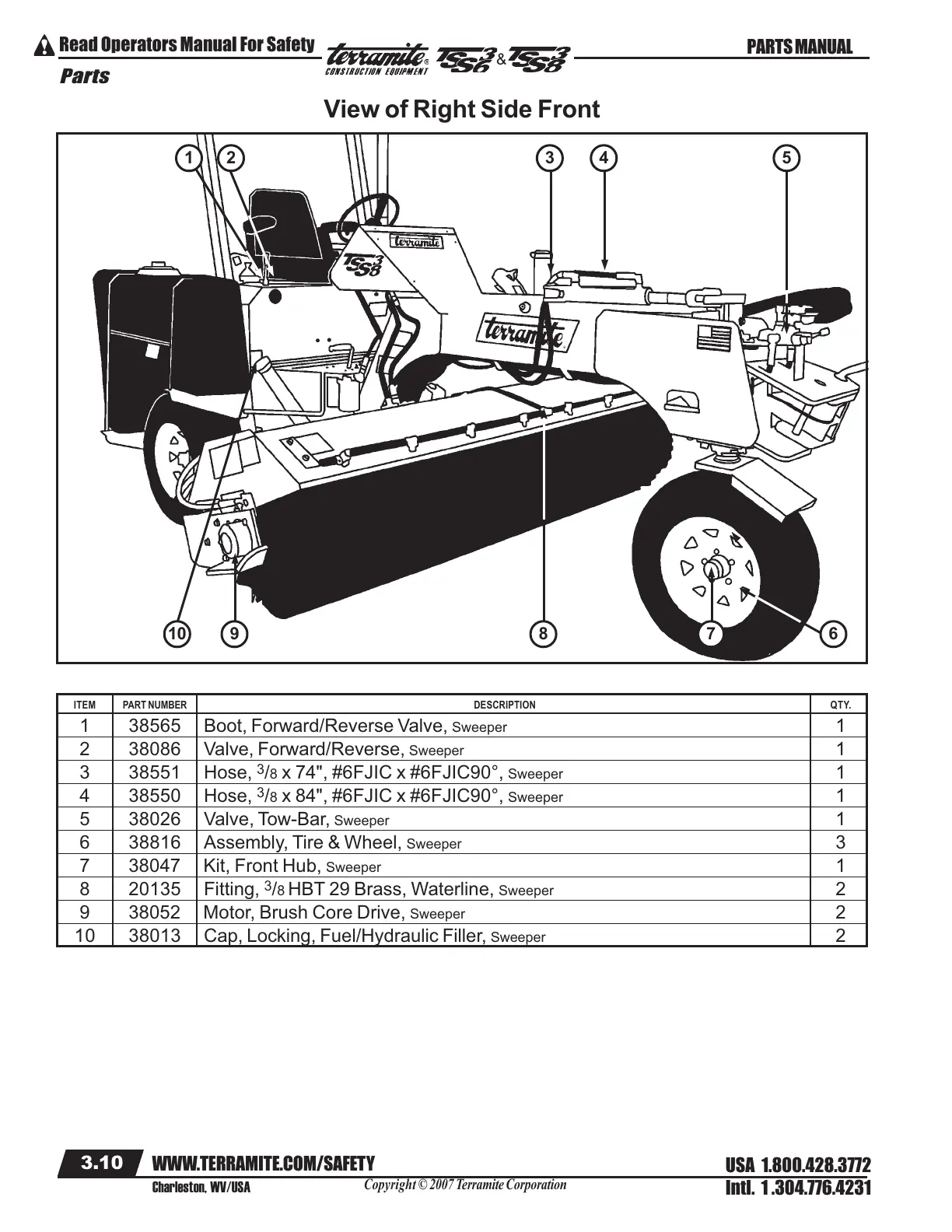

View of Right Side Front
1 2 3 5
7910
ITEM PART NUMBER DESCRIPTION QTY.
1 38565 Boot, Forward/Reverse Valve, Sweeper 1
2 38086 Valve, Forward/Reverse, Sweeper 1
3 38551 Hose,
3
/8 x 74", #6FJIC x #6FJIC90°, Sweeper 1
4 38550 Hose,
3
/8 x 84", #6FJIC x #6FJIC90°, Sweeper 1
5 38026 Valve, Tow-Bar, Sweeper 1
6 38816 Assembly, Tire & Wheel, Sweeper 3
7 38047 Kit, Front Hub, Sweeper 1
8 20135 Fitting,
3
/8 HBT 29 Brass, Waterline, Sweeper 2
9 38052 Motor, Brush Core Drive, Sweeper 2
10 38013 Cap, Locking, Fuel/Hydraulic Filler, Sweeper 2
4
68
