Terramite TSS38 - View of Front

3.7
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation

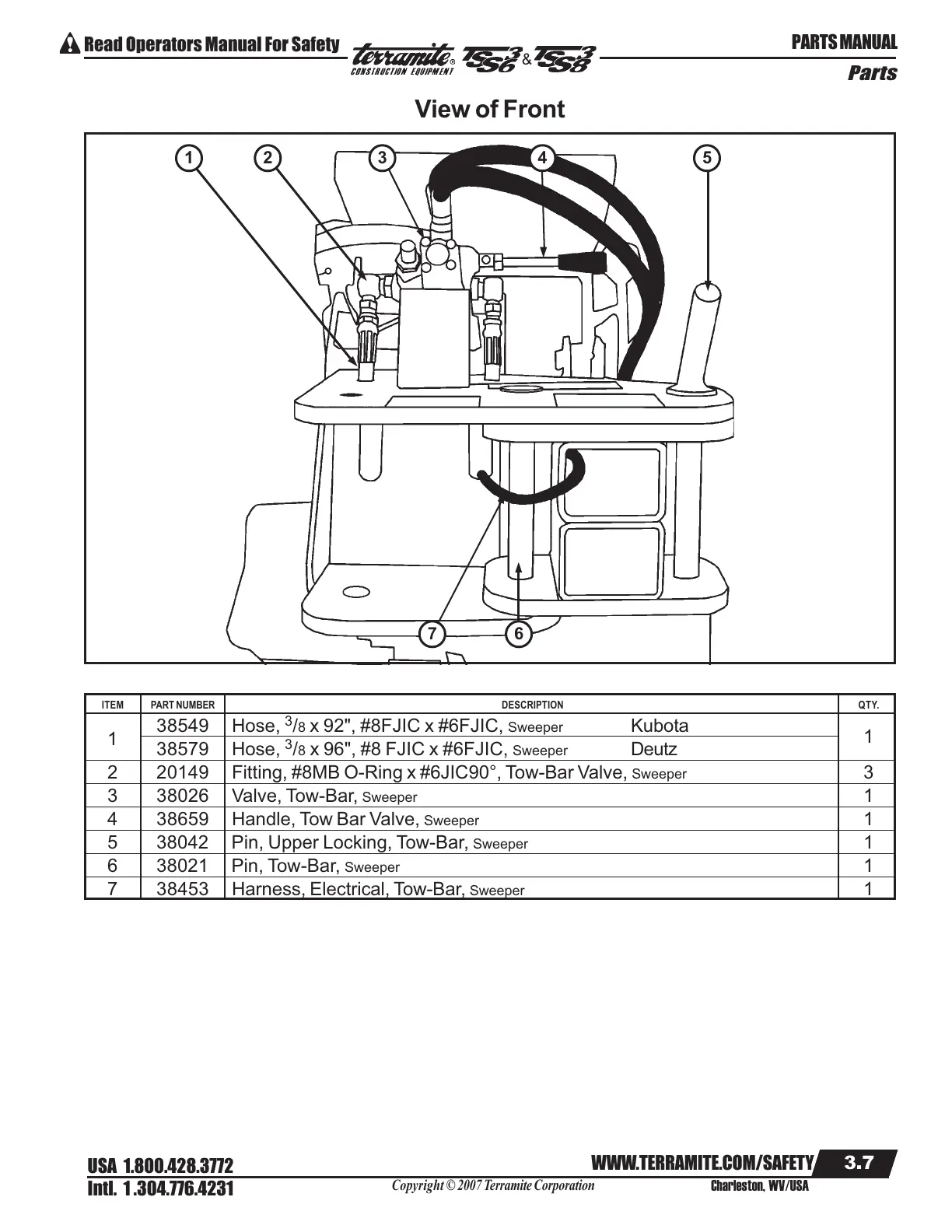

View of Front
ITEM PART NUMBER DESCRIPTION QTY.
1
38549 Hose,
3
/8 x 92", #8FJIC x #6FJIC, Sweeper Kubota
1
38579 Hose,
3
/8 x 96", #8 FJIC x #6FJIC, Sweeper Deutz
2 20149 Fitting, #8MB O-Ring x #6JIC90°, Tow-Bar Valve, Sweeper 3
3 38026 Valve, Tow-Bar, Sweeper 1
4 38659 Handle, Tow Bar Valve, Sweeper 1
5 38042 Pin, Upper Locking, Tow-Bar, Sweeper 1
6 38021 Pin, Tow-Bar, Sweeper 1
7 38453 Harness, Electrical, Tow-Bar, Sweeper 1
1 2 3 5
67
4
