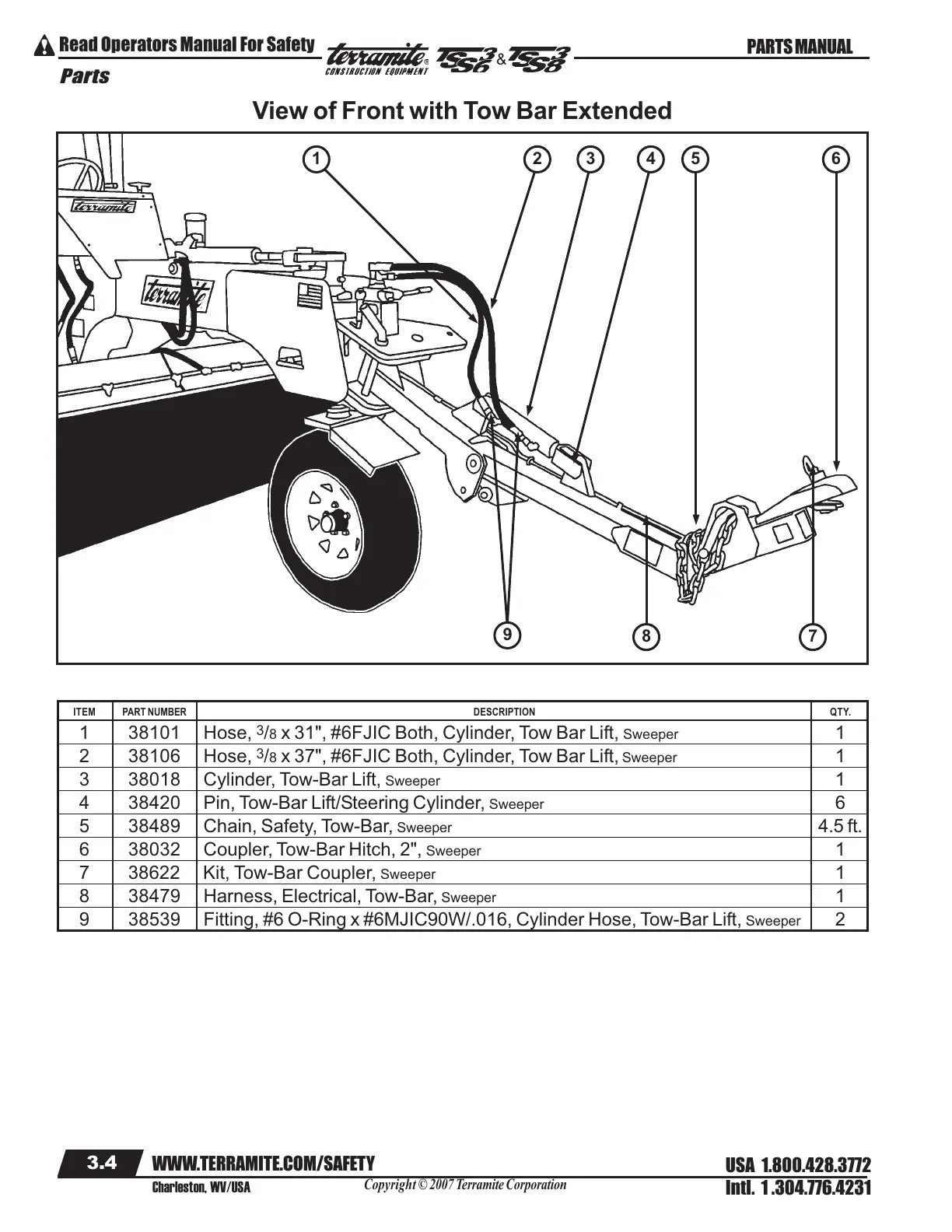

Terramite TSS38 - View of Front with Tow Bar Extended

3.4
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 38101 Hose,
3
/8 x 31", #6FJIC Both, Cylinder, Tow Bar Lift, Sweeper 1
2 38106 Hose,
3
/8 x 37", #6FJIC Both, Cylinder, Tow Bar Lift, Sweeper 1
3 38018 Cylinder, Tow-Bar Lift, Sweeper 1
4 38420 Pin, Tow-Bar Lift/Steering Cylinder, Sweeper 6
5 38489 Chain, Safety, Tow-Bar, Sweeper 4.5 ft.
6 38032 Coupler, Tow-Bar Hitch, 2", Sweeper 1
7 38622 Kit, Tow-Bar Coupler, Sweeper 1
8 38479 Harness, Electrical, Tow-Bar, Sweeper 1
9 38539 Fitting, #6 O-Ring x #6MJIC90W/.016, Cylinder Hose, Tow-Bar Lift, Sweeper 2
View of Front with Tow Bar Extended
1 2 3 4 6
9
5
78
