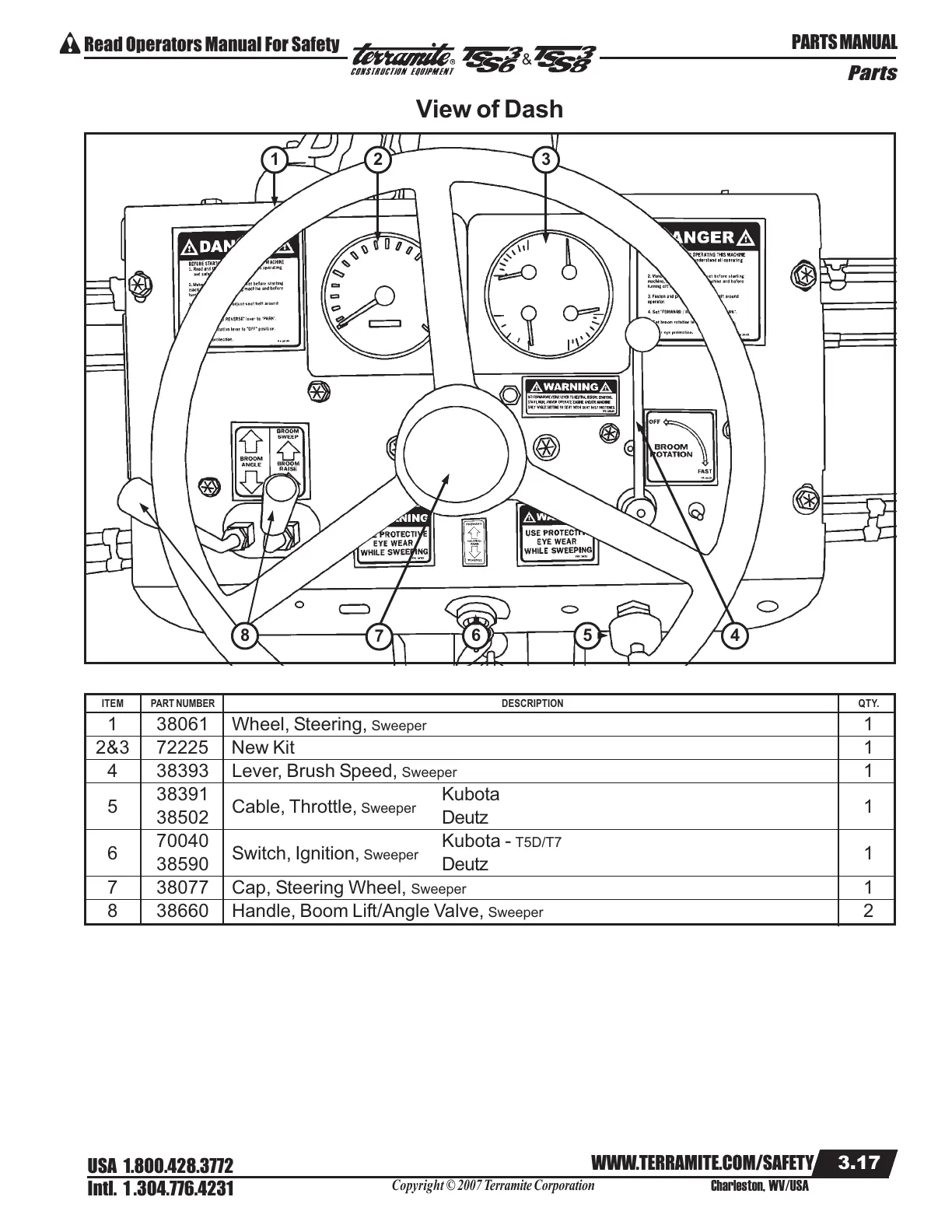

Terramite TSS38 - View of Dash

3.17
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 38061 Wheel, Steering, Sweeper 1
2&3 72225 New Kit 1
4 38393 Lever, Brush Speed, Sweeper 1
5
38391
Cable, Throttle, Sweeper
Kubota
1
38502 Deutz
6
70040
Switch, Ignition, Sweeper
Kubota - T5D/T7
1
38590 Deutz
7 38077 Cap, Steering Wheel, Sweeper 1
8 38660 Handle, Boom Lift/Angle Valve, Sweeper 2
View of Dash
31
8 6 4
2
5
7
