Terramite TSS38 - Front Hub

3.32
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
ITEM PART NUMBER DESCRIPTION QTY.
1 38141 Spindle, P/N 1
2 38914 Rings, Thin Broom Core Center - Seal Sold Seperately 1
3 38484 Bearing/Race FR Hub 2
4 53160 Cotter Pin 1/8” x 1 3/4” 1
5 38485 Dust Cap 1
6 Hub, Not Sold Seperately 1
7 28015 Washer, P/N, 1” SAE 1
8 28016 Slotted Nut, P/N, 1” - 14 1
9 38047 Kit P/N Contains Bearings, Hub and Dust Cap 1

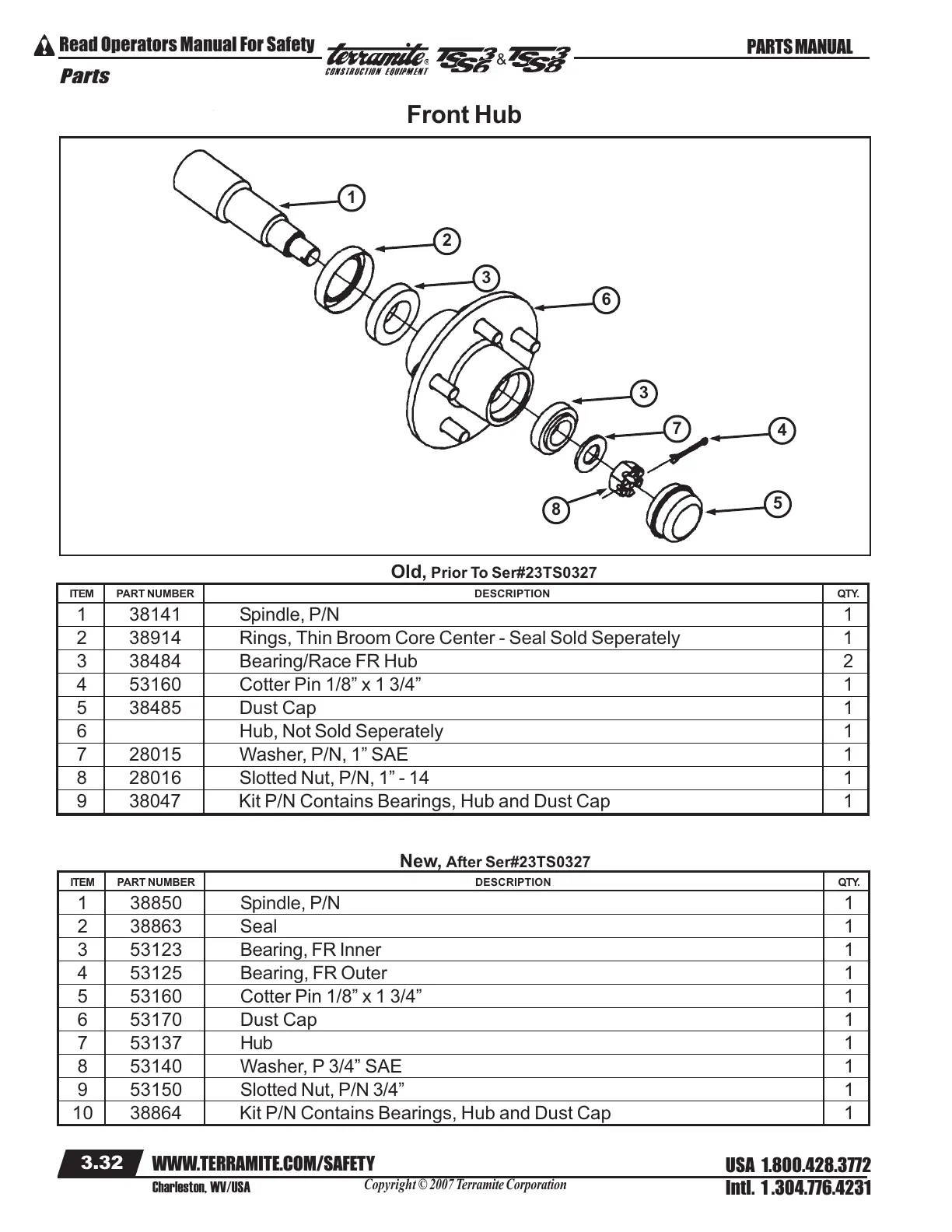

Front Hub
ITEM PART NUMBER DESCRIPTION QTY.
1 38850 Spindle, P/N 1
2 38863 Seal 1
3 53123 Bearing, FR Inner 1
4 53125 Bearing, FR Outer 1
5 53160 Cotter Pin 1/8” x 1 3/4” 1
6 53170 Dust Cap 1
7 53137 Hub 1
8 53140 Washer, P 3/4” SAE 1
9 53150 Slotted Nut, P/N 3/4” 1
10 38864 Kit P/N Contains Bearings, Hub and Dust Cap 1
Old, Prior To Ser#23TS0327
New, After Ser#23TS0327
1
2
3
6
3
7
4
5
8
