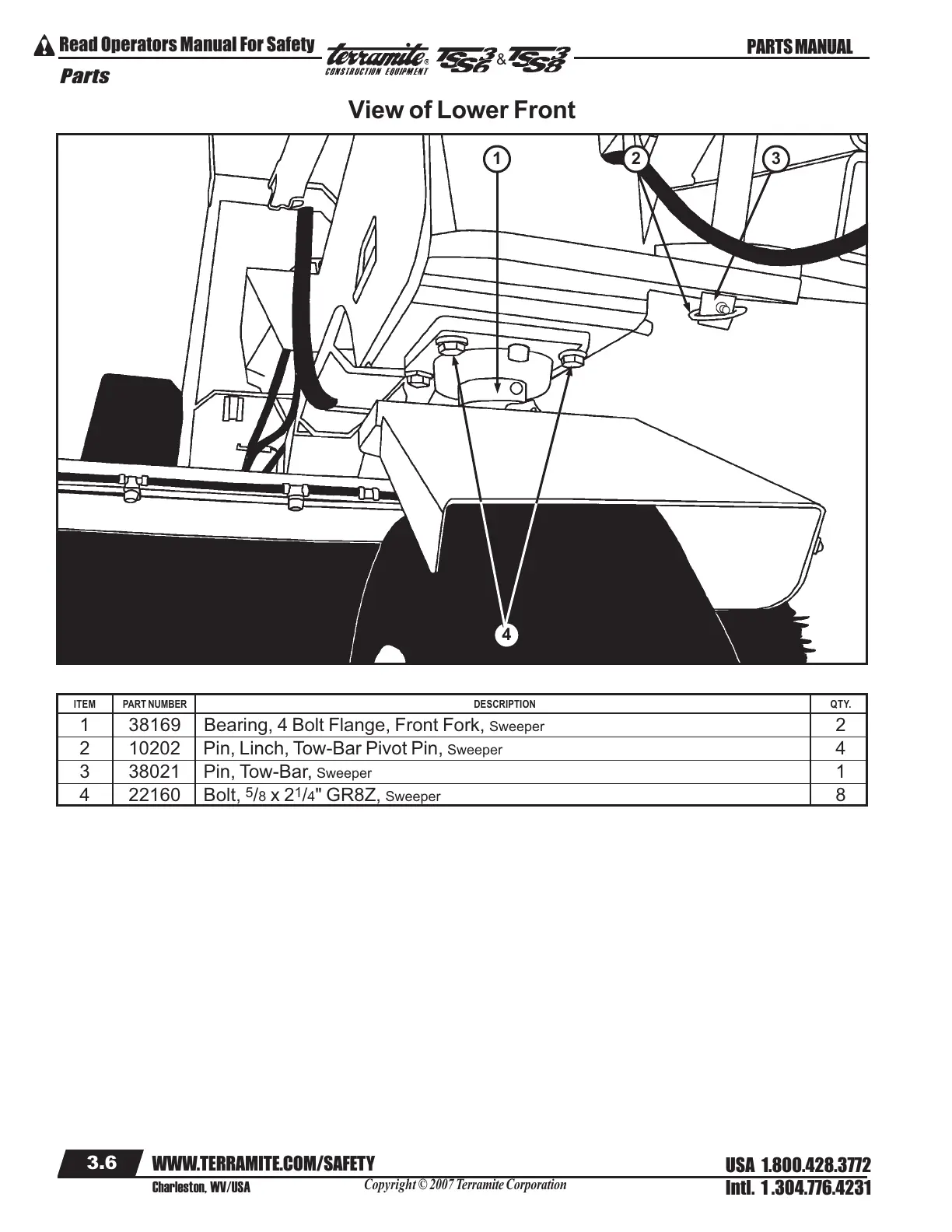

Terramite TSS38 - View of Lower Front

3.6
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
1 2 3
ITEM PART NUMBER DESCRIPTION QTY.
1 38169 Bearing, 4 Bolt Flange, Front Fork, Sweeper 2
2 10202 Pin, Linch, Tow-Bar Pivot Pin, Sweeper 4
3 38021 Pin, Tow-Bar, Sweeper 1
4 22160 Bolt,
5
/8 x 2
1
/4" GR8Z, Sweeper 8
4
View of Lower Front
