Terramite TSS38 - View from Inside Rear Panel

3.22
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

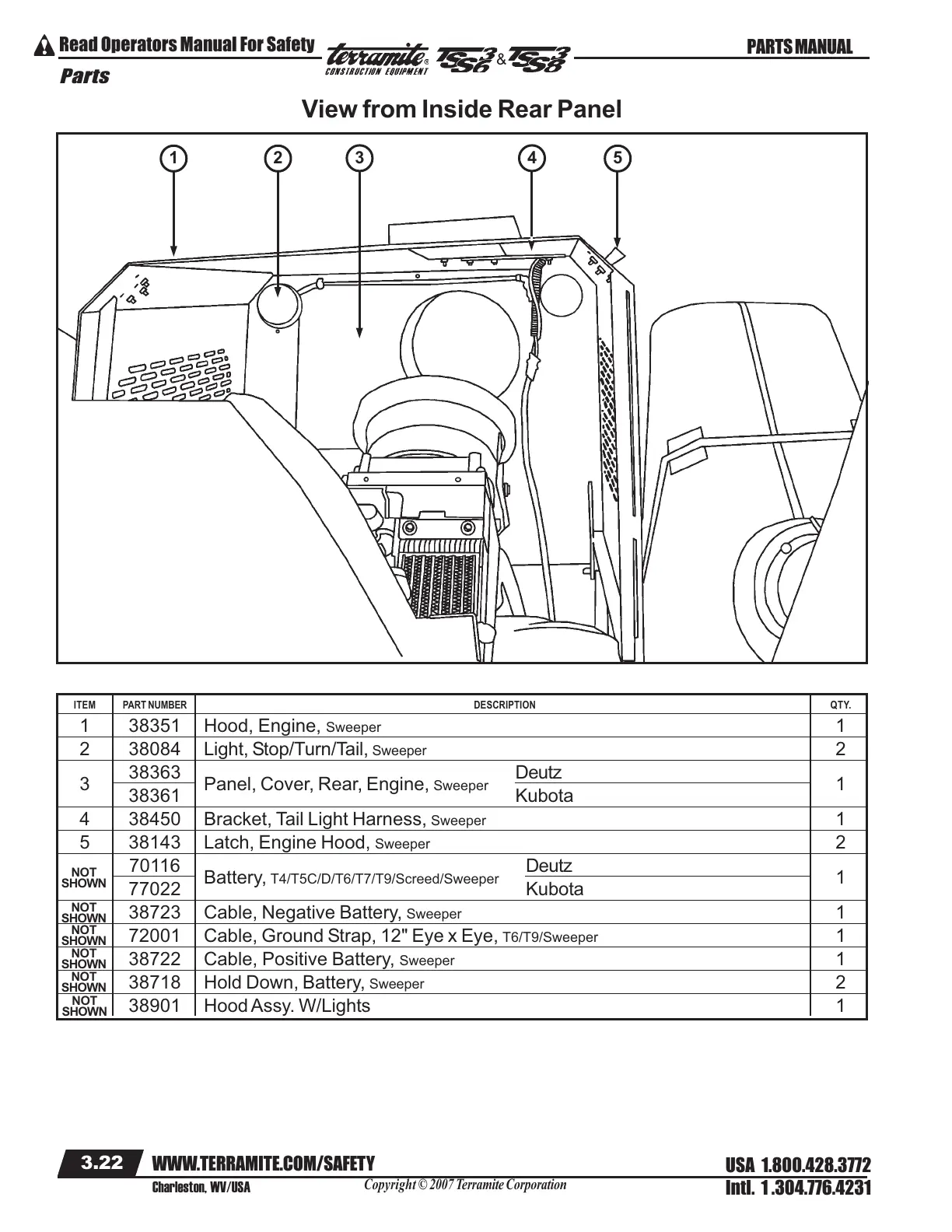

View from Inside Rear Panel
ITEM PART NUMBER DESCRIPTION QTY.
1 38351 Hood, Engine, Sweeper 1
2 38084 Light, Stop/Turn/Tail, Sweeper 2
3
38363
Panel, Cover, Rear, Engine, Sweeper
Deutz
1
38361 Kubota
4 38450 Bracket, Tail Light Harness, Sweeper 1
5 38143 Latch, Engine Hood, Sweeper 2
70116
Battery, T4/T5C/D/T6/T7/T9/Screed/Sweeper
Deutz
1
77022 Kubota
38723 Cable, Negative Battery, Sweeper 1
72001 Cable, Ground Strap, 12" Eye x Eye, T6/T9/Sweeper 1
38722 Cable, Positive Battery, Sweeper 1
38718 Hold Down, Battery, Sweeper 2
38901 Hood Assy. W/Lights 1
3 4
1 2 5
NOT
SHOWN
NOT
SHOWN
NOT
SHOWN
NOT
SHOWN
NOT
SHOWN
NOT
SHOWN
