Terramite TSS38 - View of Right Front

3.8
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation

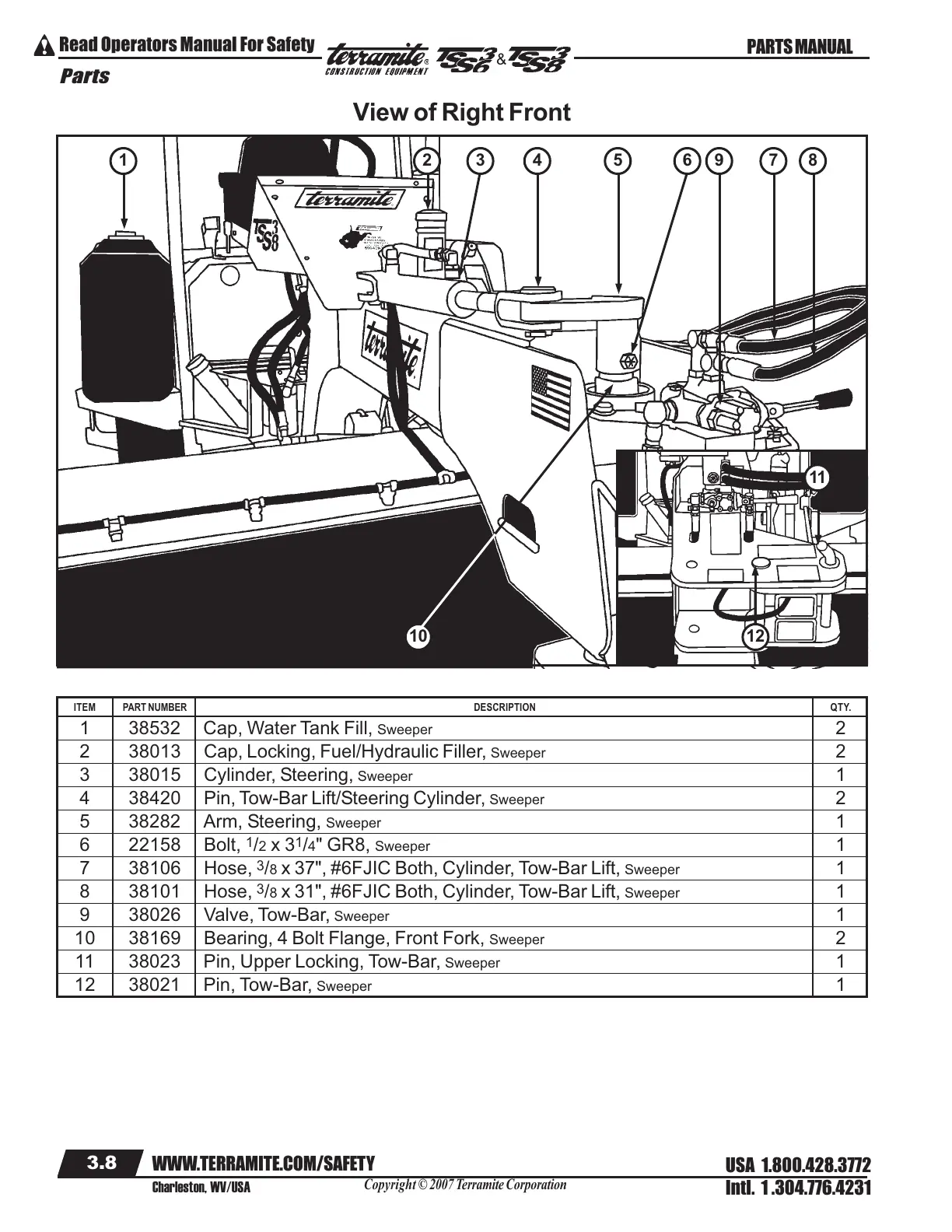

View of Right Front
ITEM PART NUMBER DESCRIPTION QTY.
1 38532 Cap, Water Tank Fill, Sweeper 2
2 38013 Cap, Locking, Fuel/Hydraulic Filler, Sweeper 2
3 38015 Cylinder, Steering, Sweeper 1
4 38420 Pin, Tow-Bar Lift/Steering Cylinder, Sweeper 2
5 38282 Arm, Steering, Sweeper 1
6 22158 Bolt,
1
/2 x 3
1
/4" GR8, Sweeper 1
7 38106 Hose,
3
/8 x 37", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
8 38101 Hose,
3
/8 x 31", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
9 38026 Valve, Tow-Bar, Sweeper 1
10 38169 Bearing, 4 Bolt Flange, Front Fork, Sweeper 2
11 38023 Pin, Upper Locking, Tow-Bar, Sweeper 1
12 38021 Pin, Tow-Bar, Sweeper 1
5 6 7 8
10
4
12
921 3
11
