Terramite TSS38 - View of Tow Bar in Detail

3.5
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Parts
&
Copyright © 2007 Terramite Corporation

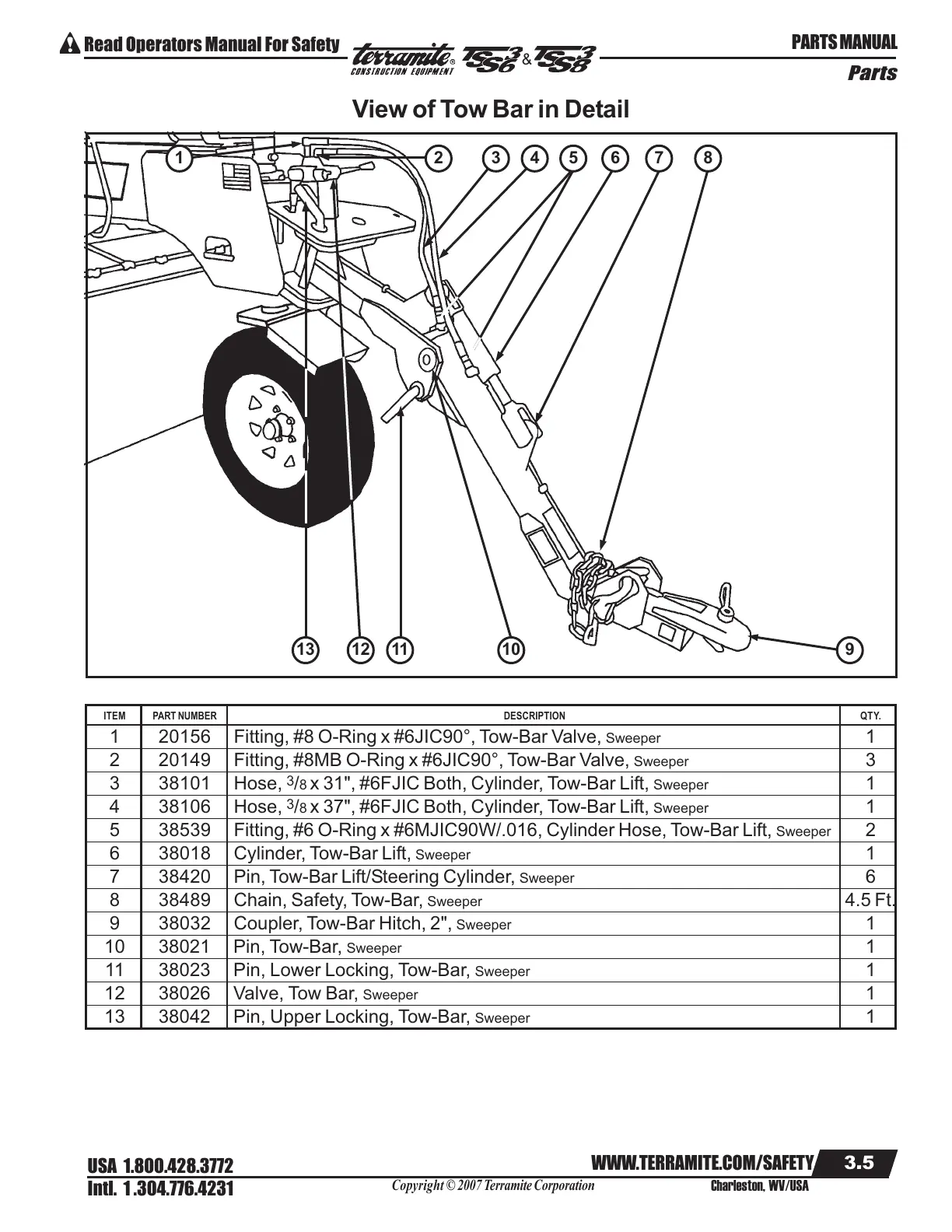

View of Tow Bar in Detail
1 2 43 5 6 7
91011
ITEM PART NUMBER DESCRIPTION QTY.
1 20156 Fitting, #8 O-Ring x #6JIC90°, Tow-Bar Valve, Sweeper 1
2 20149 Fitting, #8MB O-Ring x #6JIC90°, Tow-Bar Valve, Sweeper 3
3 38101 Hose,
3
/8 x 31", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
4 38106 Hose,
3
/8 x 37", #6FJIC Both, Cylinder, Tow-Bar Lift, Sweeper 1
5 38539 Fitting, #6 O-Ring x #6MJIC90W/.016, Cylinder Hose, Tow-Bar Lift, Sweeper 2
6 38018 Cylinder, Tow-Bar Lift, Sweeper 1
7 38420 Pin, Tow-Bar Lift/Steering Cylinder, Sweeper 6
8 38489 Chain, Safety, Tow-Bar, Sweeper 4.5 Ft.
9 38032 Coupler, Tow-Bar Hitch, 2", Sweeper 1
10 38021 Pin, Tow-Bar, Sweeper 1
11 38023 Pin, Lower Locking, Tow-Bar, Sweeper 1
12 38026 Valve, Tow Bar, Sweeper 1
13 38042 Pin, Upper Locking, Tow-Bar, Sweeper 1
13 12
8
