Terramite TSS38 - View of under Seat Area

3.26
WWW.TERRAMITE.COM/SAFETY
Charleston, WV/USA
USA 1.800.428.3772
Intl. 1 .304.776.4231
Read Operators Manual For Safety
PARTS MANUAL
Parts
&
Copyright © 2007 Terramite Corporation
1
8
2 3 34 5

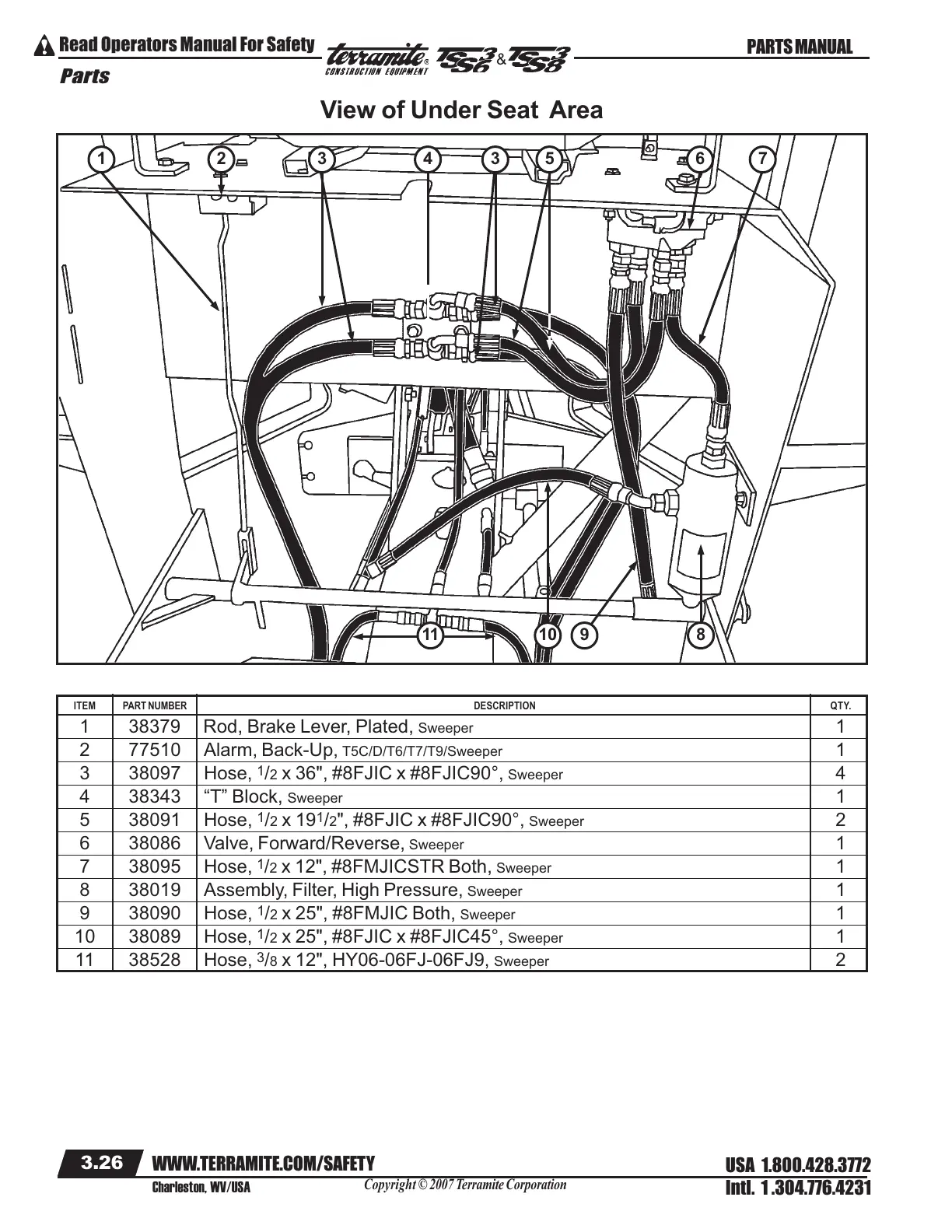

View of Under Seat Area
ITEM PART NUMBER DESCRIPTION QTY.
1 38379 Rod, Brake Lever, Plated, Sweeper 1
2 77510 Alarm, Back-Up, T5C/D/T6/T7/T9/Sweeper 1
3 38097 Hose,
1
/2 x 36", #8FJIC x #8FJIC90°, Sweeper 4
4 38343 “T” Block, Sweeper 1
5 38091 Hose,
1
/2 x 19
1
/2", #8FJIC x #8FJIC90°, Sweeper 2
6 38086 Valve, Forward/Reverse, Sweeper 1
7 38095 Hose,
1
/2 x 12", #8FMJICSTR Both, Sweeper 1
8 38019 Assembly, Filter, High Pressure, Sweeper 1
9 38090 Hose,
1
/2 x 25", #8FMJIC Both, Sweeper 1
10 38089 Hose,
1
/2 x 25", #8FJIC x #8FJIC45°, Sweeper 1
11 38528 Hose,
3
/8 x 12", HY06-06FJ-06FJ9, Sweeper 2
6 7
