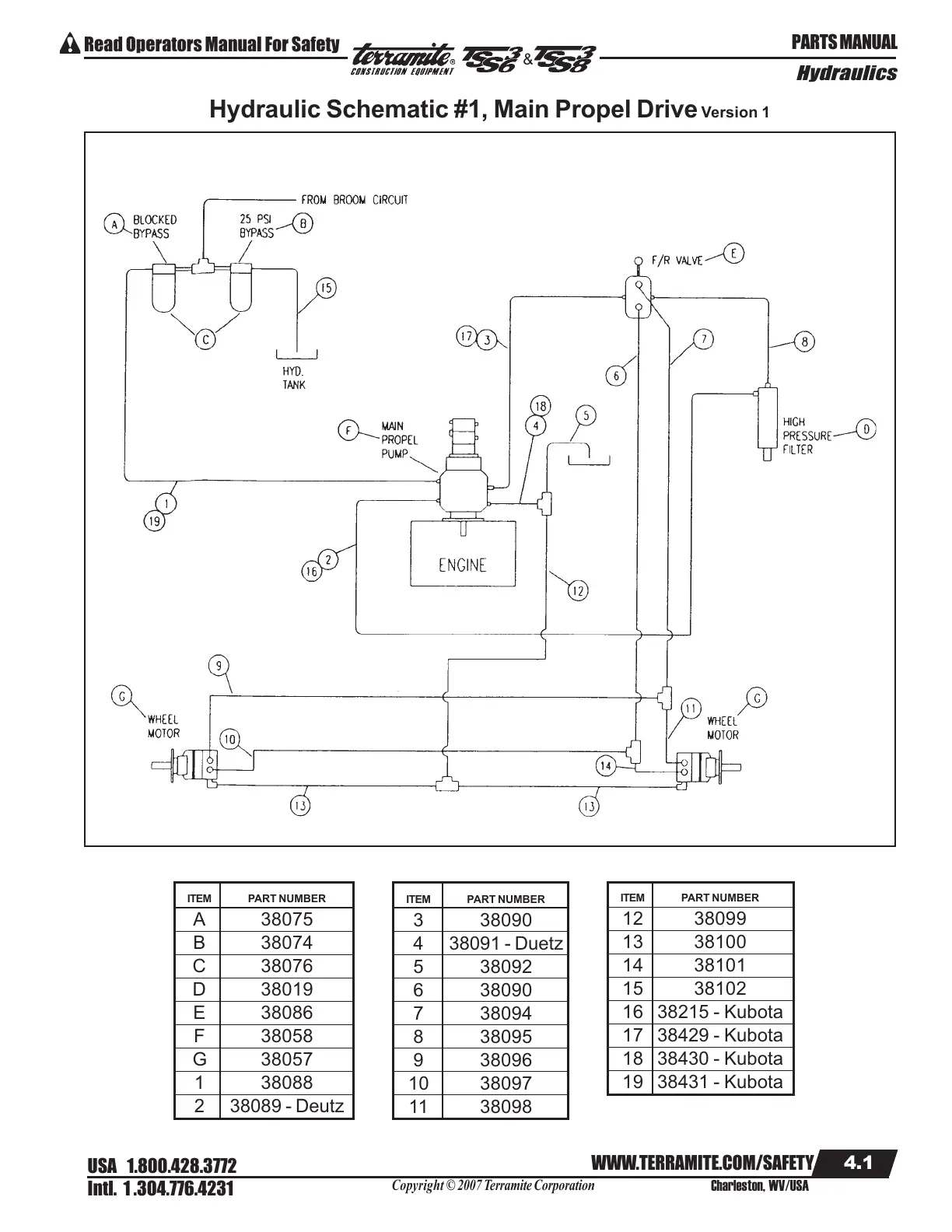

Terramite TSS38 - Hydraulic Schematic #1, Main Propel Drive Version 1

Copyright © 2007 Terramite Corporation
4.1
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Hydraulics
&
ITEM PART NUMBER
A 38075
B 38074
C 38076
D 38019
E 38086
F 38058
G 38057
1 38088
2 38089 - Deutz
ITEM PART NUMBER
3 38090
4 38091 - Duetz
5 38092
6 38090
7 38094
8 38095
9 38096
10 38097
11 38098
ITEM PART NUMBER
12 38099
13 38100
14 38101
15 38102
16 38215 - Kubota
17 38429 - Kubota
18 38430 - Kubota
19 38431 - Kubota
Hydraulic Schematic #1, Main Propel Drive Version 1
