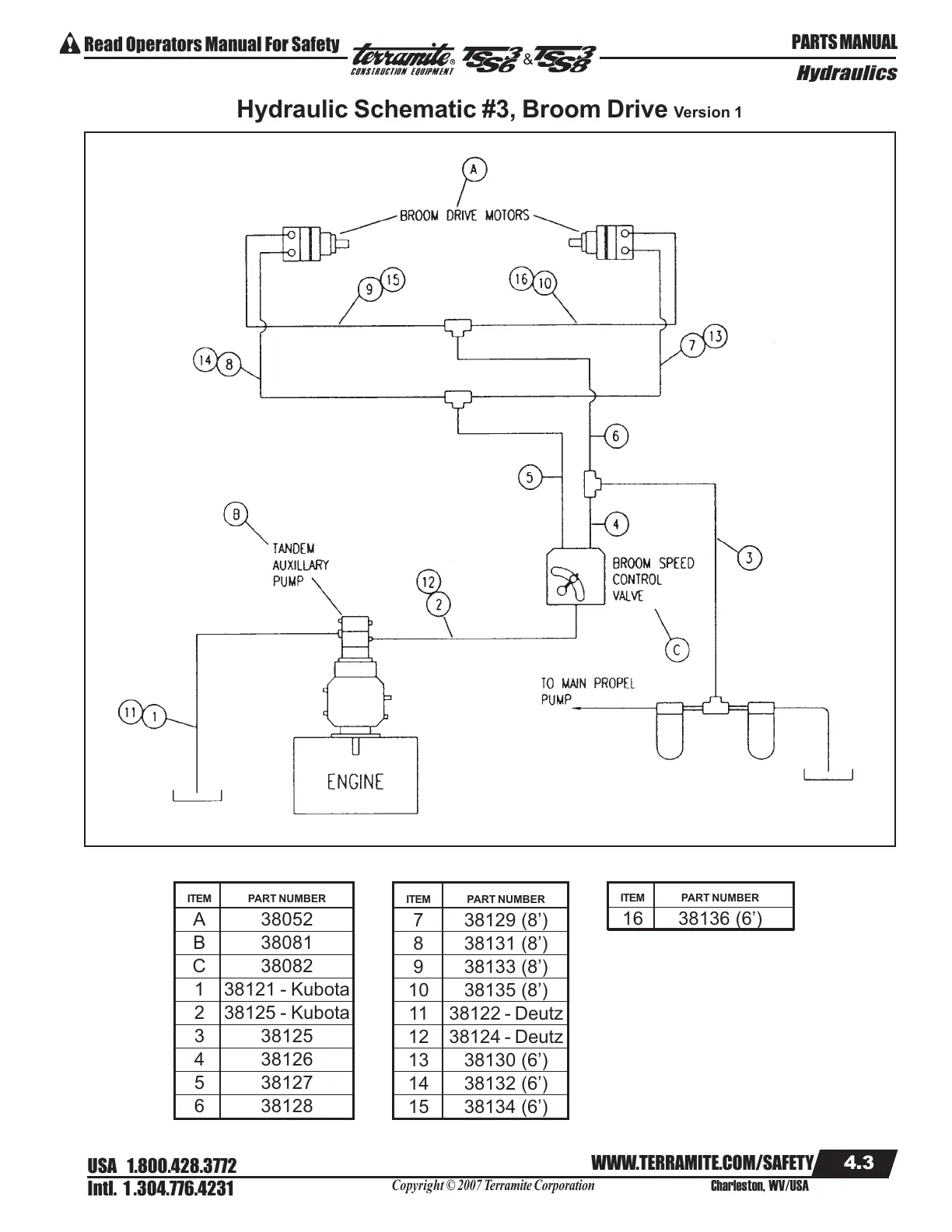

Terramite TSS38 - Hydraulic Schematic #3, Broom Drive Version 1

Copyright © 2007 Terramite Corporation
4.3
WWW.TERRAMITE.COM/SAFETY
USA 1.800.428.3772
Intl. 1 .304.776.4231
Charleston, WV/USA
PARTS MANUAL
Read Operators Manual For Safety
Hydraulics
&
ITEM PART NUMBER
A 38052
B 38081
C 38082
1 38121 - Kubota
2 38125 - Kubota
3 38125
4 38126
5 38127
6 38128
ITEM PART NUMBER
7 38129 (8’)
8 38131 (8’)
9 38133 (8’)
10 38135 (8’)
11 38122 - Deutz
12 38124 - Deutz
13 38130 (6’)
14 38132 (6’)
15 38134 (6’)
ITEM PART NUMBER
16 38136 (6’)
Hydraulic Schematic #3, Broom Drive Version 1
