E-2 | Cyber Hardened IBUC 2, IBUC 2e, IBUC 2G, IBUC R, IBUC G Operations Manual: Firmware Upgrade
Engineered to Endure

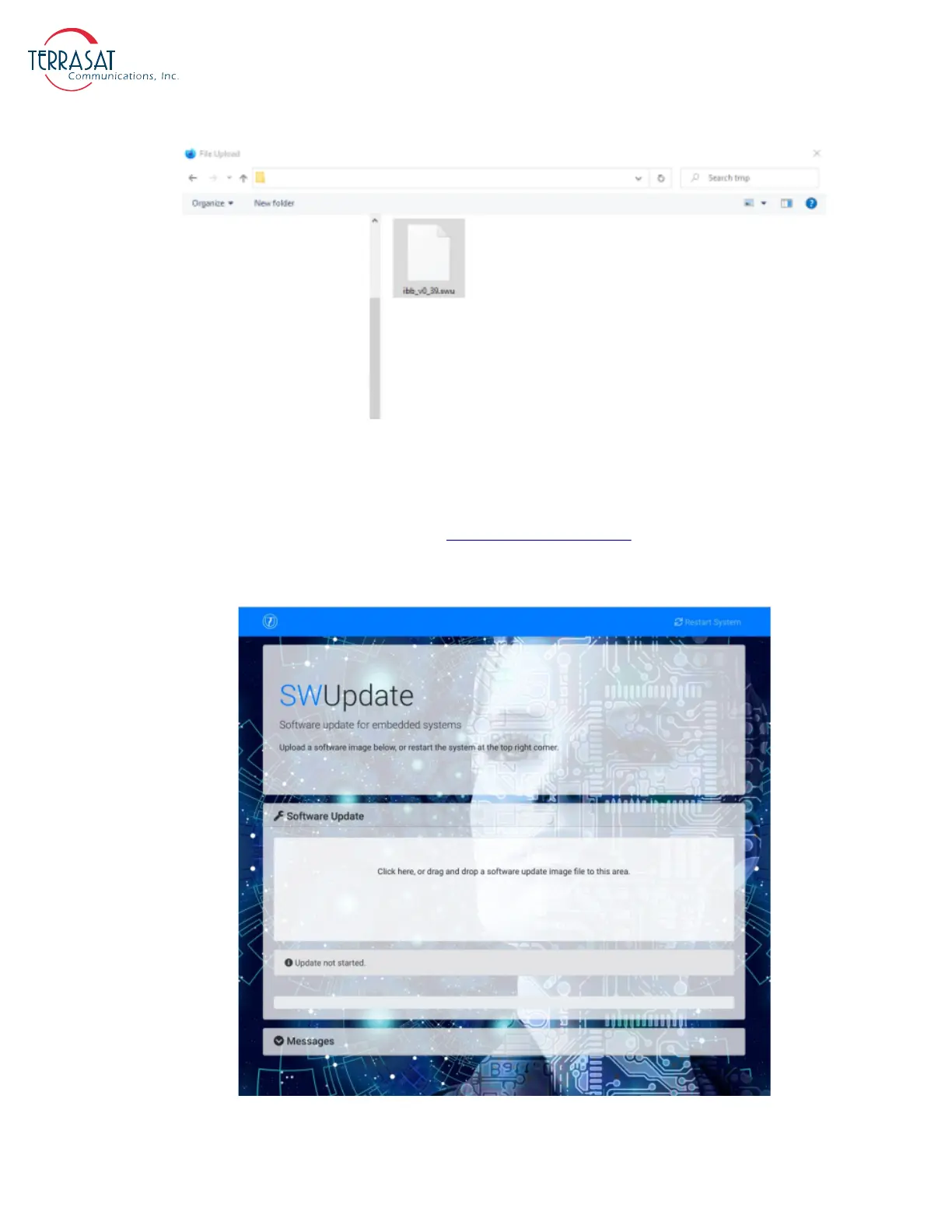

Figure E.1 Firmware Upgrade File
2. Open any web browser and access port 8080 of the IBUC. This can be
accomplished by appending “:8080” after the IBUCs IP address.
Example: If the units IP address in the local network is 192.168.1.21, to access
port 8080, the user should type http://192.168.1.21:8080
.
Once accessed, the web browser should show a page as the one on Figure E.2.
Figure E.2 Software Update Web Page
